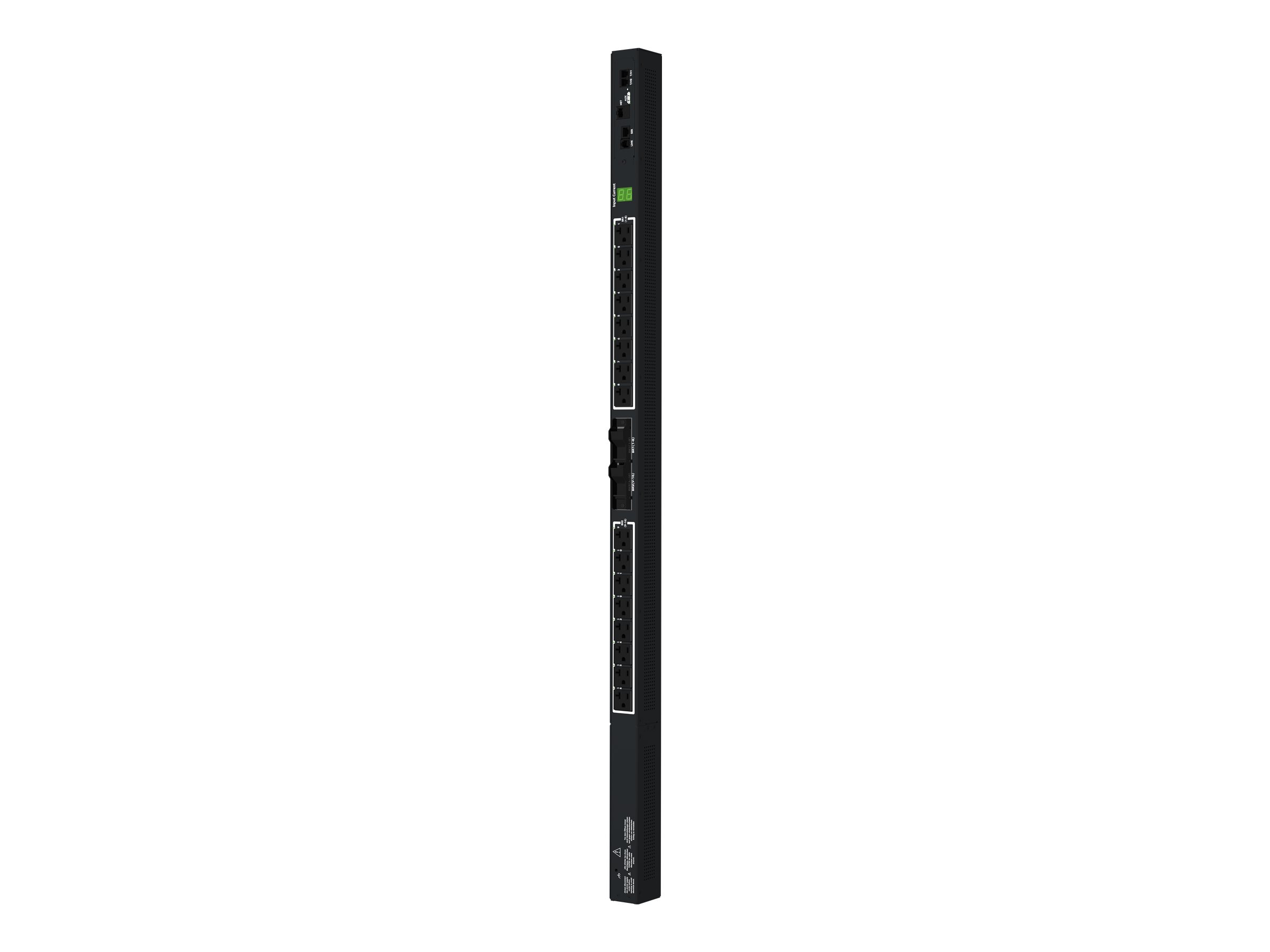

Server Technology PRO1 Switched PDU C1W16VS-1DFA17A5

$1,059.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Master power distribution unit (rack-mountable) AC 120 V 1.9 kW Ethernet 10/100, RS-232

Server Technology PRO1 Switched PDU C1W16VS-1DFA17A5

Master
power distribution unit (rack-mountable)
AC 120 V
1.9 kW
Ethernet 10/100, RS-232
input: NEMA L5-30P
output connectors: 16 (NEMA 5-20R)

Additional Details
Price:	$1,059.00
Mfr Part #:	C1W16VS-1DFA17A5
SHI Part #:	35793713
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Server Technology PRO1 Switched PDU C1W16VS-1DFA17A5 - Master - power distribution unit (rack-mountable) - AC 120 V - 1.9 kW - Ethernet 10/100, RS-232 - input: NEMA L5-30P - output connectors: 16 (NEMA 5-20R)
Manufacturer	Legrand
MSRP	$1,055.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	5.8 cm
Dimensions & Weight / Height	125.8 cm
Dimensions & Weight / Width	4.5 cm
General / Subcategory	Power distribution devices
Header / Brand	Server Technology
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100 RS-232
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	16
Power Device / Voltage Required	AC 120 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	5.8 cm
Height	125.8 cm
Width	4.5 cm
Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x management (Ethernet) - RJ-45 1 x management (RS-232) - RJ-45 2 x sensor 1 x monitoring - RJ-12
General
Device Type	Power distribution unit - rack-mountable
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 2 years
Miscellaneous
Compliant Standards	cTUVus, FCC Part 15 B Class A, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014
Features	LED display, Per Input Power Sensing (PIPS), high retention locking outlets
Networking
Remote Management Interface	Ethernet 10/100, RS-232
Remote Management Protocol	Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
Power Device
Circuit Protection	Fuse
Input Connectors	1 x power NEMA L5-30P
Input Voltage	AC 120 V
Max Electric Current	30 A
Power Capacity	1.9 kW
Power Output Connectors Details	16 x power NEMA 5-20R
