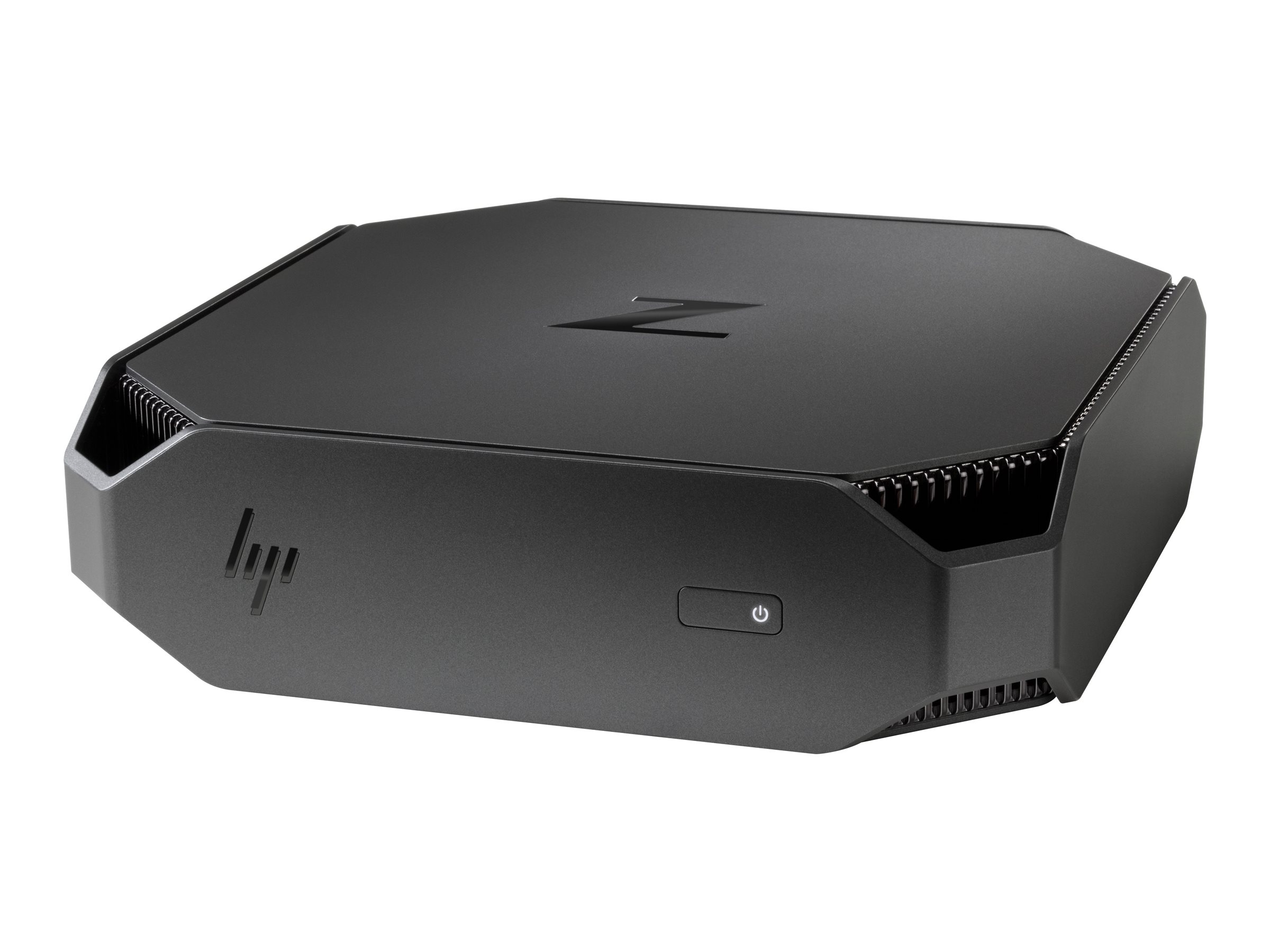

HP Workstation Z2 Mini G4 Entry

Login for Price
HP Workstation Z2 Mini G4 Entry
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Mini
  • 1 x Core i5 8500 / 3 GHz
  • vPro
  • RAM 8 GB
  • HDD 1 TB
HP Workstation Z2 Mini G4 Entry
  • Mini
  • 1 x Core i5 8500 / 3 GHz
  • vPro
  • RAM 8 GB
  • HDD 1 TB
  • UHD Graphics 630
  • GigE
  • WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0
  • Win 10 Pro 64-bit
  • monitor: none
  Additional Details
Mfr Part #: 5DV10UT#ABA
SHI Part #: 35748993
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware

Audio/Video Cables

HP - DisplayPort adapter
HP - DisplayPort adapter
  • Mini DisplayPort (M) to DisplayPort (F)
  • for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8
Login for Price
HP - DVI cable - DisplayPort (M) to DVI-D (F)
HP - DVI cable - DisplayPort (M) to DVI-D (F)
  • 19 cm
  • for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
Login for Price
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 Mini G4 Entry - Mini - 1 x Core i5 8500 / 3 GHz - vPro - RAM 8 GB - HDD 1 TB - UHD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - Win 10 Pro 64-bit - monitor: none
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth21.6 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight1.93 kg
Dimensions & Weight / Width21.6 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel C246
Mainboard / Processor SocketLGA1151 Socket
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Data Link Protocol
  • Bluetooth 5.0
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac
  • Bluetooth 5.0
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 10 Pro 64-bit Edition
Packaged Quantity1
Processor / Clock Speed3 GHz
Processor / Generation8
Processor / ManufacturerIntel
Processor / Number of Cores6-core
Processor / Processor NumberI5-8500
Processor / TypeCore i5
RAM / Form FactorSO-DIMM 260-pin
RAM / Memory Specification CompliancePC4-21333
RAM / Memory Speed2666 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity1 TB
System / Platform TechnologyIntel vPro Platform
System / TypeWorkstation
Video Output / Graphics ProcessorIntel UHD Graphics 630
Audio Output
Compliant StandardsHigh Definition Audio
Sound Output ModeStereo
Cache Memory
Cache Per Processor9 MB
Installed Size9 MB
Dimensions & Weight
Depth21.6 cm
Height5.8 cm
Weight1.93 kg
Width21.6 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays1 (total) / 0 (free) x internal 2.5"
Interfaces
  • 4 x USB 3.0 (2 front, 2 rear) (one of them is charging)
  • 1 x headphones/microphone (1 in front)
  • 1 x LAN (Gigabit Ethernet)
  • 2 x DisplayPort
  • 2 x USB-C 3.1 Gen 2 (one of them is charging)
Slots
  • 1 (total) / 1 (free) x PCIe 3.0 x16
  • 1 (total) / 0 (free) x M.2 Card - 2230 (x1 mode)
  • 1 (total) / 1 (free) x M.2 Card - 2280 (x4 mode)
General
Built-in DevicesSpeaker
ColorSpace gray with black chrome accents
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Platform
Product Form FactorMini
TypeWorkstation
Graphics Controller
Graphics ProcessorIntel UHD Graphics 630 shared video memory (UMA)
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 1 TB
Interface TypeSATA
Spindle Speed7200 rpm
TypeHDD
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site
Miscellaneous
Compliant StandardsRoHS, WEEE 2002/96/EC
Included AccessoriesHP Ultra-Slim external DVD-writer
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)

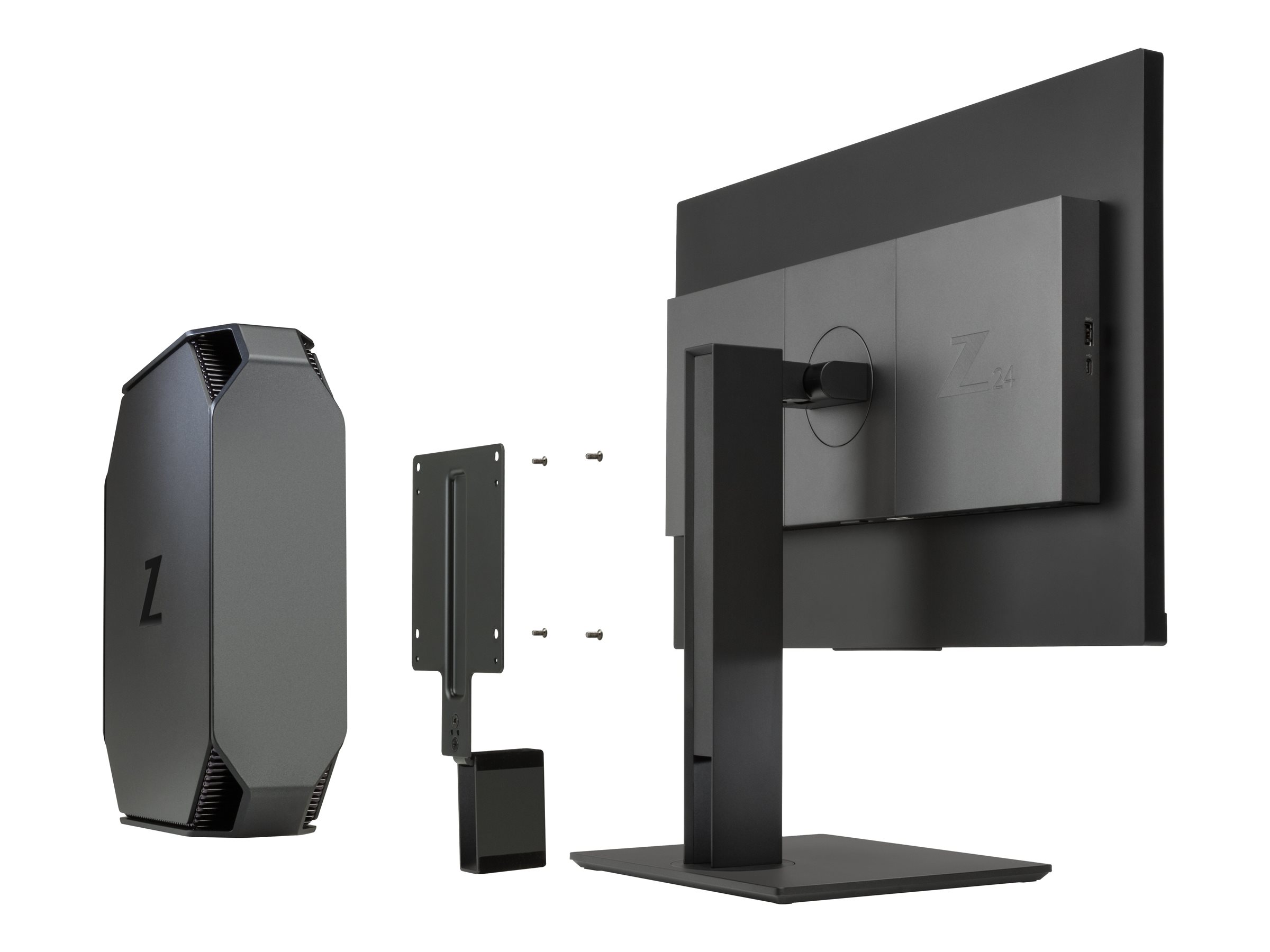

VESA Mounting InterfaceYes
Monitor
Monitor TypeNone.
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1as, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), PXE support, Intel Active Management Technology (AMT) 12
Interface (Bus) TypePCI Express 3.0 x1
Remote Management ProtocolASF 2.0
Wireless LAN SupportedYes
Wireless NICIntel Wireless-AC 9560
Operating System / Software
OS ProvidedWindows 10 Pro 64-bit Edition English
SoftwareHP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Client Security, HP Remote Graphics Software 7, HP Sure Click, HP BIOSphere Gen4, HP Client Security Suite Gen4, HP Manageability Integration Kit Gen2, HP Sure Run, HP Sure Recover, HP Sure Start Gen4
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Factor CorrectionYes (active)
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel C246
Clock Speed3 GHz
CPUIntel Core i5 (8th Gen) 8500
CPU Qty1
CPU SocketLGA1151 Socket
Max CPU Qty1
Max Turbo Speed4.1 GHz
Number of Cores6-core
Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2
RAM
Configuration Features1 x 8 GB
Effective Memory Speed2666 MHz
FeaturesUnbuffered
Form FactorSO-DIMM 260-pin
Installed Size8 GB (installed) / 32 GB (max)
Memory Specification CompliancePC4-21333
Rated Memory Speed2666 MHz
Slots2 (total) / 1 (empty)
TechnologyDDR4 SDRAM
Storage Controller
Controller Interface TypeSATA 6Gb/s
Type1 x SATA
