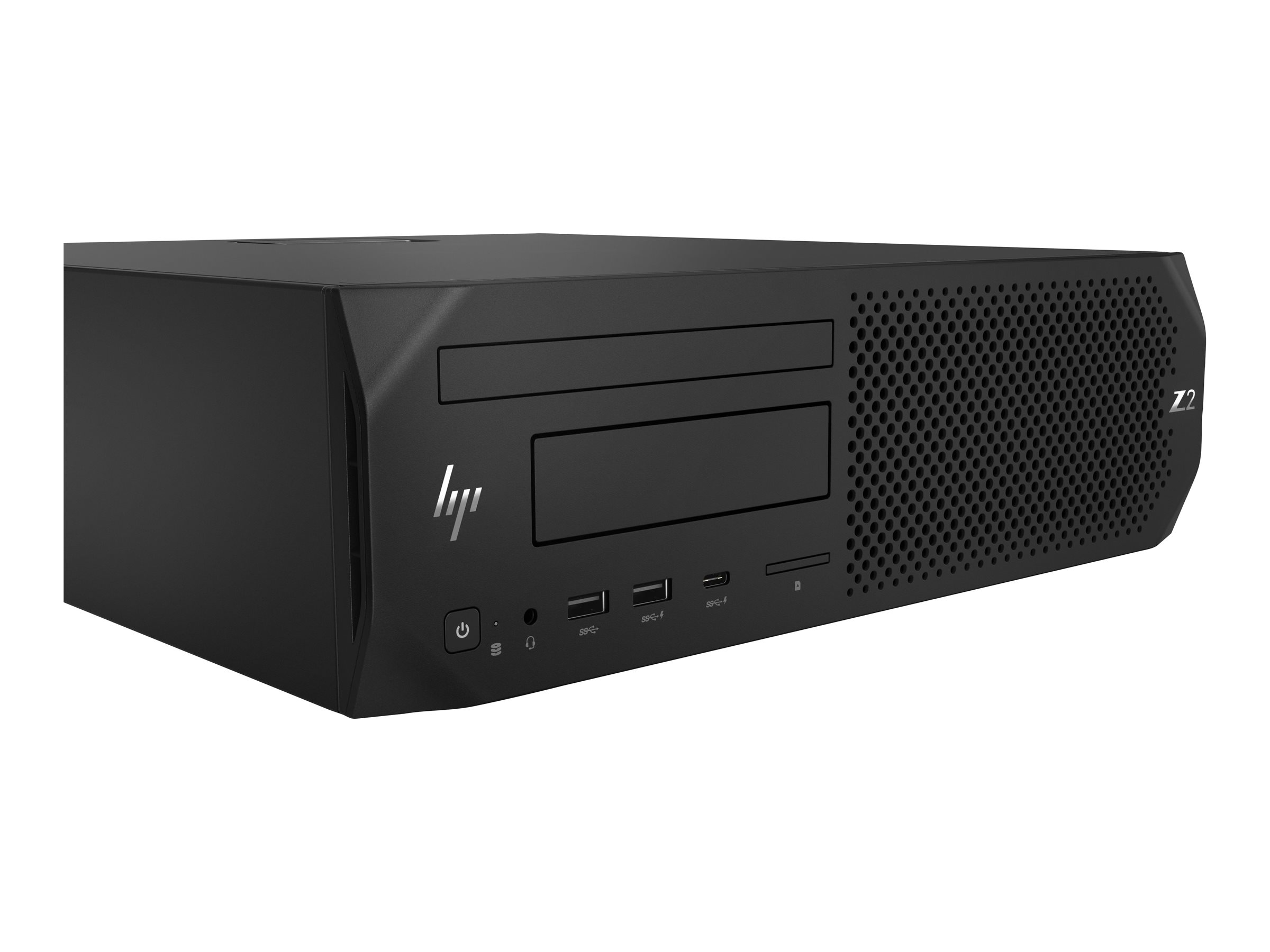

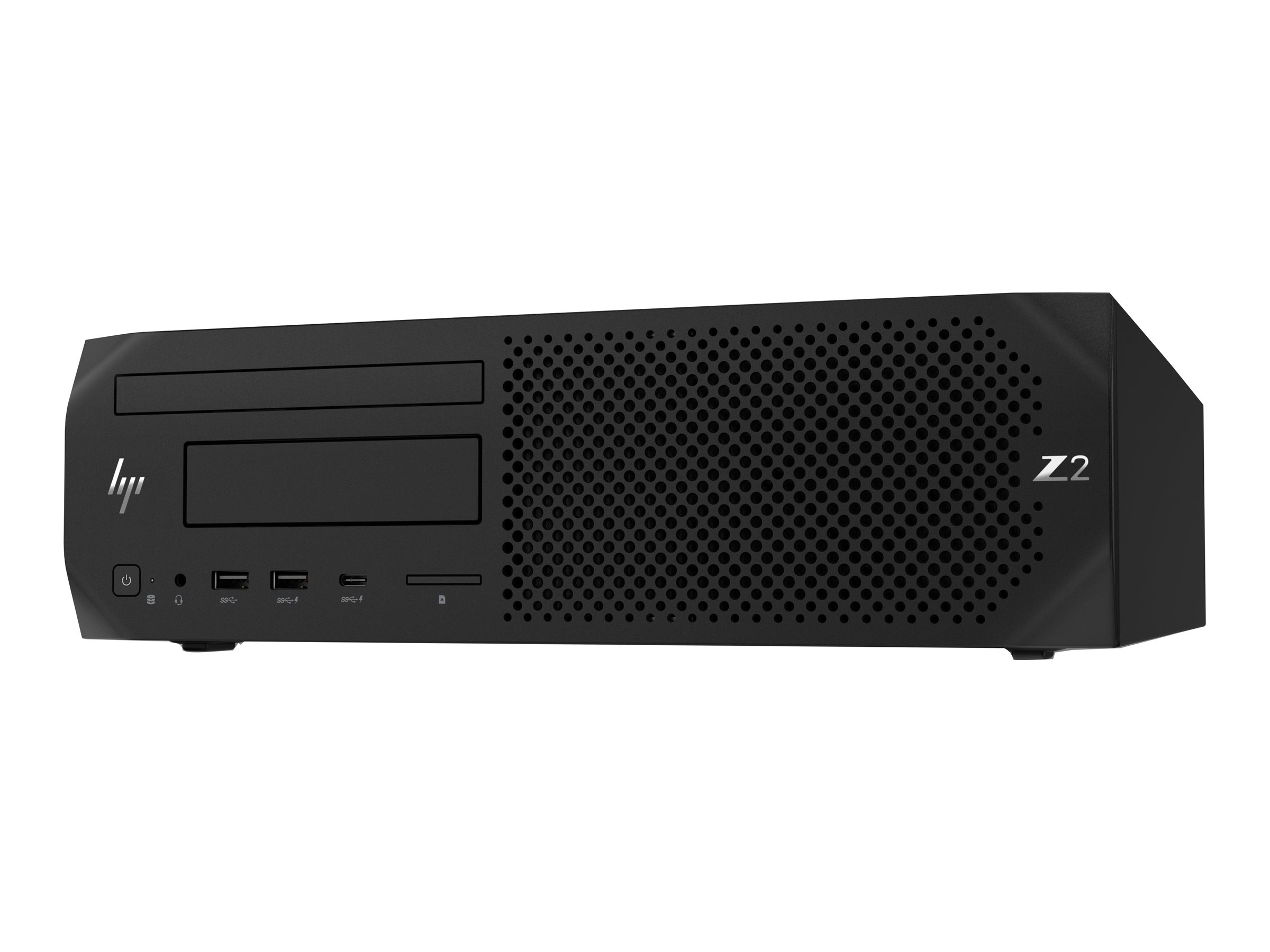

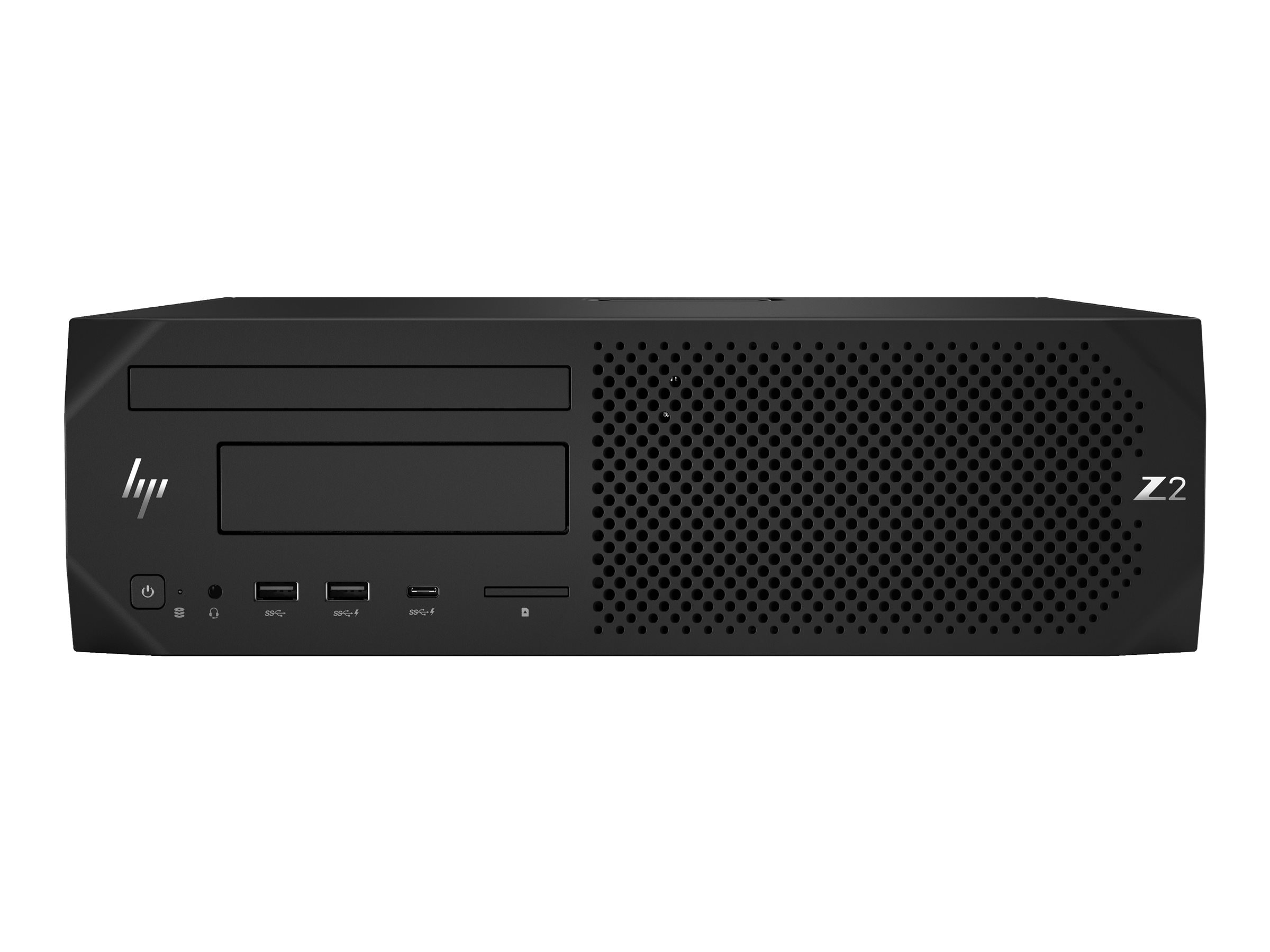

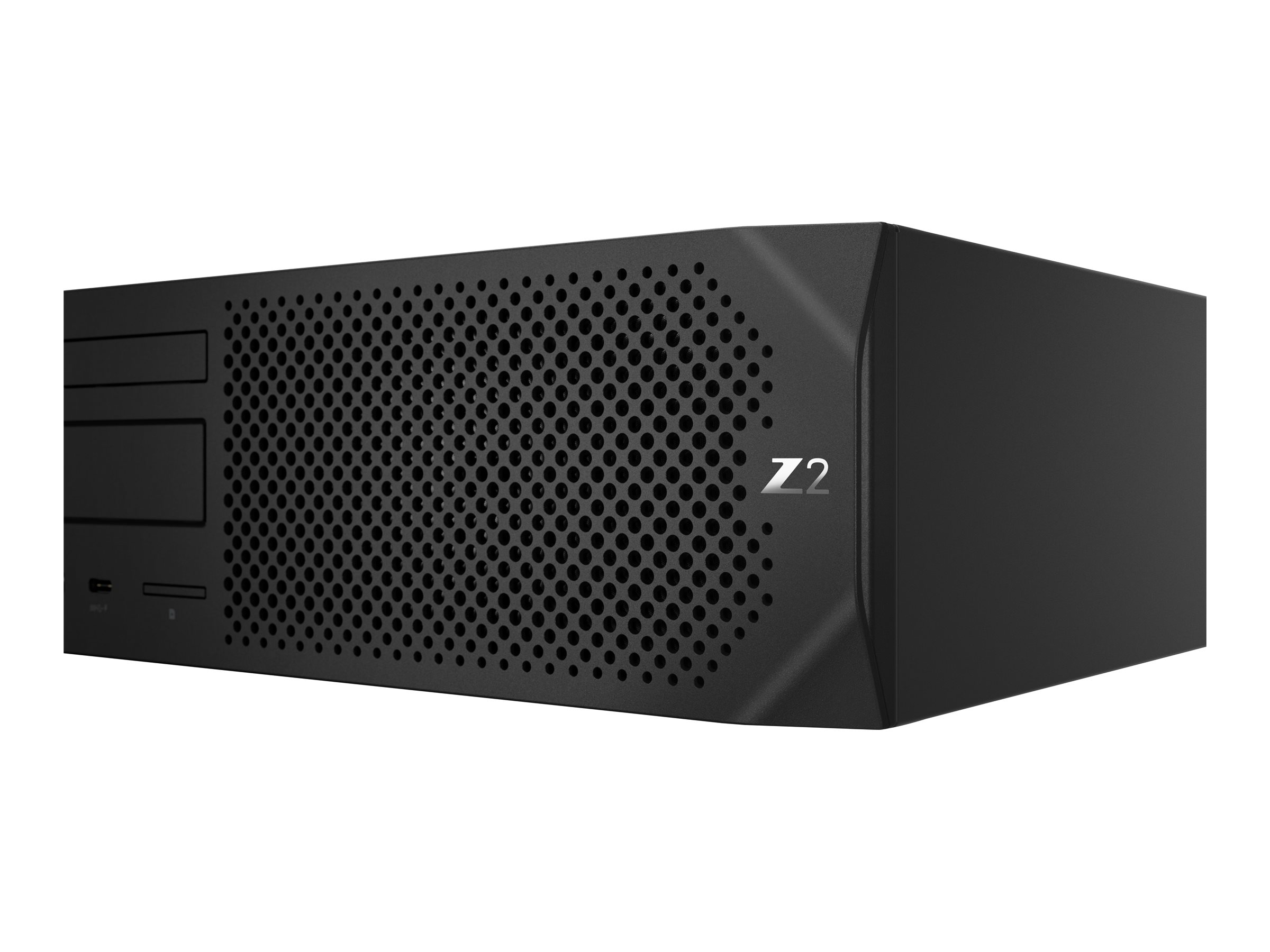

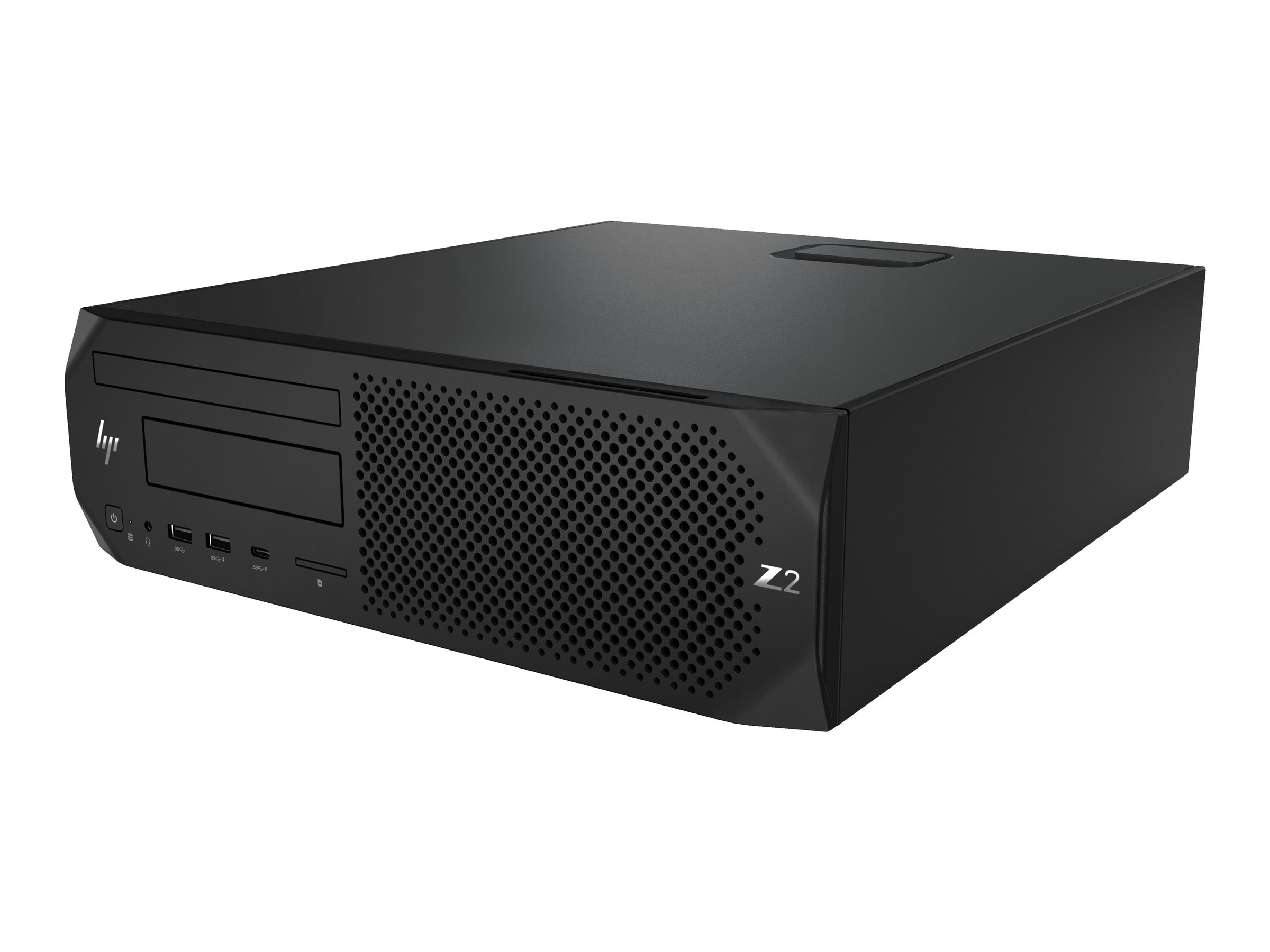

HP Workstation Z2 G4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HP Workstation Z2 G4
- SFF
- 1 x Core i7 8700 / 3.2 GHz
- vPro
- RAM 16 GB
- SSD 256 GB
- HP Z Turbo Drive
- DVD-Writer
- UHD Graphics 630
- GigE
- Win 10 Pro 64-bit
- monitor: none
- Smart Buy
| Additional Details | |
|---|---|
| Mfr Part #: | 5DU88UT#ABA |
| SHI Part #: | 35748992 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- Mini DisplayPort (M) to DisplayPort (F)
- for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8
- 19 cm
- for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
- USB cable
- USB (F)
- for Workstation Z2 G4, Z230, Z240, Z4 G4, Z420, Z440, Z6 G4, Z620, Z640, Z840; ZCentral 4R
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP Workstation Z2 G4 - SFF - 1 x Core i7 8700 / 3.2 GHz - vPro - RAM 16 GB - SSD 256 GB - HP Z Turbo Drive - DVD-Writer - UHD Graphics 630 - GigE - Win 10 Pro 64-bit - monitor: none - Smart Buy |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 38.1 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 5.5 kg |
| Dimensions & Weight / Width | 33.8 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Hard Drive / Interface | PCI Express 3.0 x4 |
| Hard Drive / Interface Type | PCI Express 3.0 x4 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | Intel C246 |
| Mainboard / Processor Socket | LGA1151 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD-Writer |
| OS Provided / Type | Windows 10 Pro 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Generation | 8 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | I7-8700 |
| Processor / Type | Core i7 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Specification Compliance | PC4-21333 |
| RAM / Memory Speed | 2666 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Platform Technology | Intel vPro Platform |
| System / Type | Workstation |
| Video Output / Graphics Processor | Intel UHD Graphics 630 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 38.1 cm |
| Height | 10 cm |
| Weight | 5.5 kg |
| Width | 33.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 51.8 cm |
| Shipping Height | 49.9 cm |
| Shipping Weight | 9.35 kg |
| Shipping Width | 22.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Platform Technology | Intel vPro Platform |
| Product Form Factor | SFF |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | HP Z Turbo Drive |
| Interface Type | PCI Express 3.0 x4 |
| Type | SSD - M.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Wake on LAN (WoL), ACPI support, PXE support, Intel Active Management Technology (AMT) 12 |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition English |
| Software | HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Remote Graphics Software 7, HP Sure Click, HP BIOSphere Gen4, HP Client Security Suite Gen4, HP Sure Run, HP Sure Start Gen4 |
| Optical Storage | |
| Type | DVD-Writer |
| Power | |
| Device Type | Power supply |
| Power Factor Correction | Yes (active) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C246 |
| Clock Speed | 3.2 GHz |
| CPU | Intel Core i7 (8th Gen) 8700 |
| CPU Qty | 1 |
| CPU Socket | LGA1151 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 6-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Effective Memory Speed | 2666 MHz |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Memory Specification Compliance | PC4-21333 |
| Rated Memory Speed | 2666 MHz |
| Slots | 4 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x SATA |
