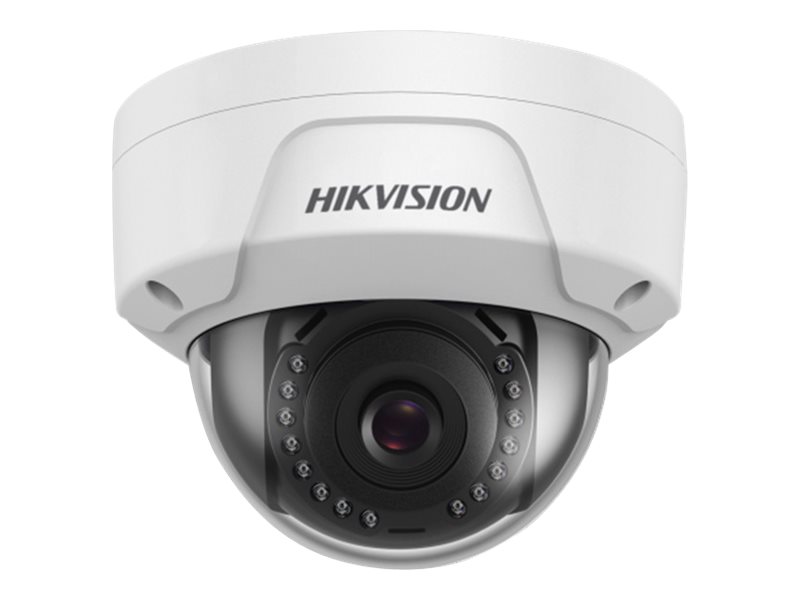

Hikvision 4 MP Outdoor IR Network Dome Camera ECI-D14F4
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hikvision 4 MP Outdoor IR Network Dome Camera ECI-D14F4
- Network surveillance camera
- dome
- outdoor
- color (Day&Night)
- 4 MP
- 2560 x 1440
- 720p, 1080p
- M12 mount
- fixed focal
- LAN 10/100
- MJPEG, H.264, H.265, H.265+, H.264+
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Mfr Part #: | ECI-D14F4 |
| SHI Part #: | 35720219 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Hikvision |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hikvision 4 MP Outdoor IR Network Dome Camera ECI-D14F4 - Network surveillance camera - dome - outdoor - color (Day&Night) - 4 MP - 2560 x 1440 - 720p, 1080p - M12 mount - fixed focal - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+ - DC 12 V / PoE Class 3 |
| Manufacturer | Hikvision |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.1 cm |
| Dimensions & Weight / Height | 8.24 cm |
| Dimensions & Weight / Weight | 410 g |
| Dimensions & Weight / Width | 11.1 cm |
| Header / Brand | Hikvision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, infrared cut filter, Privacy Mask Function, NAS-Ready, tamper-detection, dual video stream, password protection, Region of Interest (ROI), auto gain control, 3D Digital Noise Reduction Technology, True Wide Dynamic Range (TWDR), ONVIF (Profile S) support, ONVIF (Profile G) support, watermark, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), EXIR 2.0 LEDs |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor |
| Video Capture |
|
| Video Modes | 720p, 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| General | |
| Connectivity Technology | Wired |
| Depth | 11.1 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 8.24 cm |
| Weight | 410 g |
| Width | 11.1 cm |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, SMB, IGMP, QOS, CIFS, NFS |
| Lens Construction | |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 77 |
| Lens Iris | F/2.0 |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 42 |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, IP67, IK10, IEEE 802.3af |
| Panning | |
| Range (degree) | 0 to 355 |
| Power | |
| Power Device | 7 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 70 |
