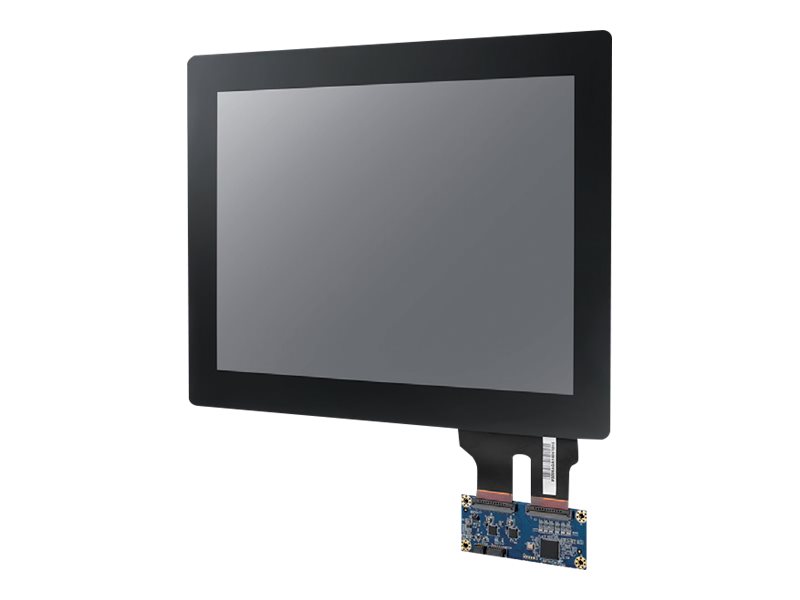

Advantech IDK-1110P-50XGA1E
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech IDK-1110P-50XGA1E
- LED monitor
- 10.4"
- open frame
- touchscreen
- 1024 x 768
- 500 cd/m²
- 1000:1
- 25 ms
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IDK-1110P-50XGA1E |
| SHI Part #: | 35640283 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | Advantech IDK-1110P-50XGA1E - LED monitor - 10.4" - open frame - touchscreen - 1024 x 768 - 500 cd/m² - 1000:1 - 25 ms |
| Manufacturer | Advantech |
| MSRP | $320.00 |
| UNSPSC | 43211903 |
| Main Specifications | |
| Dimensions & Weight / Depth | 1.132 cm |
| Dimensions & Weight / Height | 20.242 cm |
| Dimensions & Weight / Weight | 500 g |
| Dimensions & Weight / Width | 25.103 cm |
| Display / Diagonal Size | 10.4 in |
| Display / Diagonal Size (metric) | 26.4 cm |
| Display / Native Resolution | 1024 x 768 |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Advantech |
| Image Brightness | 500 cd/m² |
| Input Device / Type | Touchscreen |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Backlight Technology | LED backlight |
| Brightness | 500 cd/m² |
| Color Support | 16.2 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 10.4" |
| Dimensions (WxDxH) | 25.103 cm x 1.132 cm x 20.242 cm |
| Display Type | LED-backlit LCD monitor |
| Features | Projected Capacitive Touch (P-CAP) technology |
| Horizontal Viewing Angle | 176 |
| Native Resolution | 1024 x 768 |
| Response Time | 25 ms |
| Vertical Viewing Angle | 176 |
| Weight | 500 g |
| Input | |
| Movement Detection Technology | Capacitive |
| Type | Touchscreen - touchscreen |
| Miscellaneous | |
| Compliant Standards | RoHS, 2002/95/EC |
| MTBF | 50,000 hour(s) |
