Hardware Computer Components Control/Interface Boards

Control/Interface Boards

Advantech PCE-USB4-00A1E

$217.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
USB adapter PCIe 2.0 x4 USB 3.0 x 4

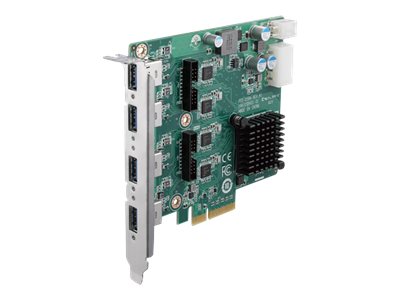

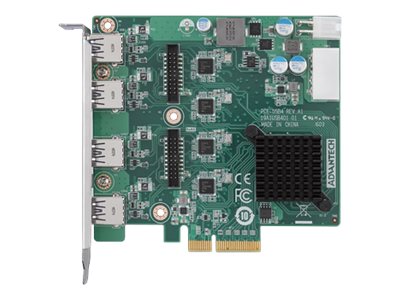

Advantech PCE-USB4-00A1E

General Information
Category	Serial port cards
Description	Advantech PCE-USB4-00A1E - USB adapter - PCIe 2.0 x4 - USB 3.0 x 4
Manufacturer	Advantech
MSRP	$215.00
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	11.1 cm
Dimensions & Weight / Width	11.8 cm
Header / Brand	Advantech
Miscellaneous / Product Color	Green
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	USB 3.0
Networking / Type	USB adapter
Packaged Quantity	1
System Requirements / OS Required	Linux Microsoft Windows 7 Windows 8.1
Dimensions & Weight
Depth	11.1 cm
Width	11.8 cm
Environmental Parameters
Max Operating Temperature	60 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	4 x USB 3.0 - 9 pin USB Type A
General
Device Type	USB adapter
Form Factor	Plug-in card
Interface (Bus) Type	PCI Express 2.0 x4
Miscellaneous
Compliant Standards	FCC, RoHS
Networking
Compliant Standards	USB 1.1, USB 2.0, USB 3.0, xHCI 1.0
Connectivity Technology	Wired
Data Link Protocol	USB 3.0
Performance	Maximum electric current: 1500 mA
Ports	USB 3.0 x 4
Processor / Memory
Processor	4 x Renesas µPD720202
Software / System Requirements
OS Required	Linux, Microsoft Windows 7, Windows 8.1

	Product	Qty	Price
