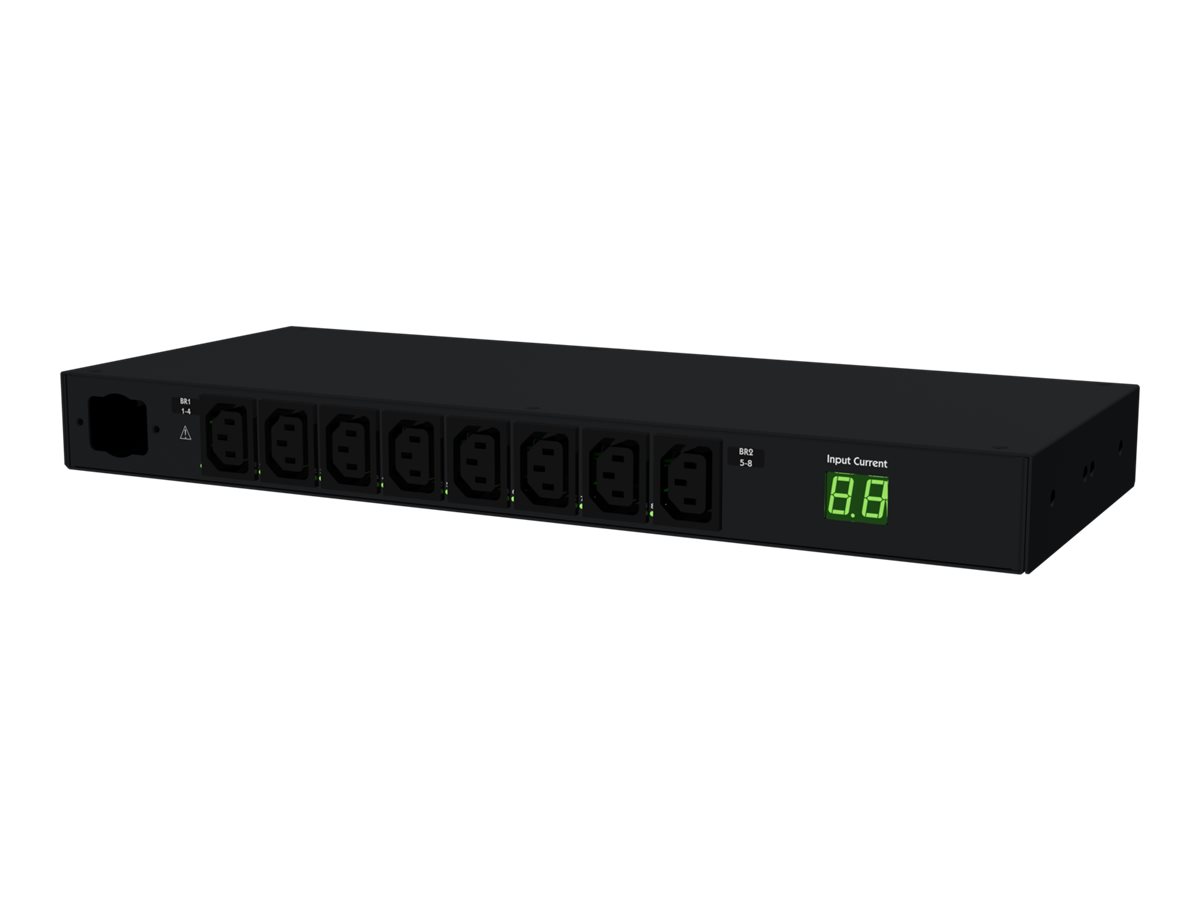

Server Technology PRO1 Switched PDU C1W08HC-2CBA2BAC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO1 Switched PDU C1W08HC-2CBA2BAC
- Master
- power distribution unit (rack-mountable)
- AC 208 V
- 5 kW
- Ethernet 10/100, RS-232
- input: NEMA L6-30P
- output connectors: 8 (8 x IEC 60320 C13)
- 1U
| Additional Details | |
|---|---|
| Mfr Part #: | C1W08HC-2CBA2BAC |
| SHI Part #: | 35552891 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO1 Switched PDU C1W08HC-2CBA2BAC - Master - power distribution unit (rack-mountable) - AC 208 V - 5 kW - Ethernet 10/100, RS-232 - input: NEMA L6-30P - output connectors: 8 (8 x IEC 60320 C13) - 1U |
| Manufacturer | Legrand |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.8 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Width | 43.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 17.8 cm |
| Height | 4.5 cm |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | EMC, WEEE, cTUVus, TUV T, FCC Part 15 B Class A, UL 498, RoHS 2011/65/EU, UL 60950-1:2007, EN 55024:2010, TLS v1.2, EN 55032:2012, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, EN60950-1:2006 +A11+A1+A12+A2 |
| Features | Horizontal orientation, voltage monitoring, current meter, overcurrent protection, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), High Density Outlet Technology (HDOT), high retention locking outlets |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, SFTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 5 kW |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
