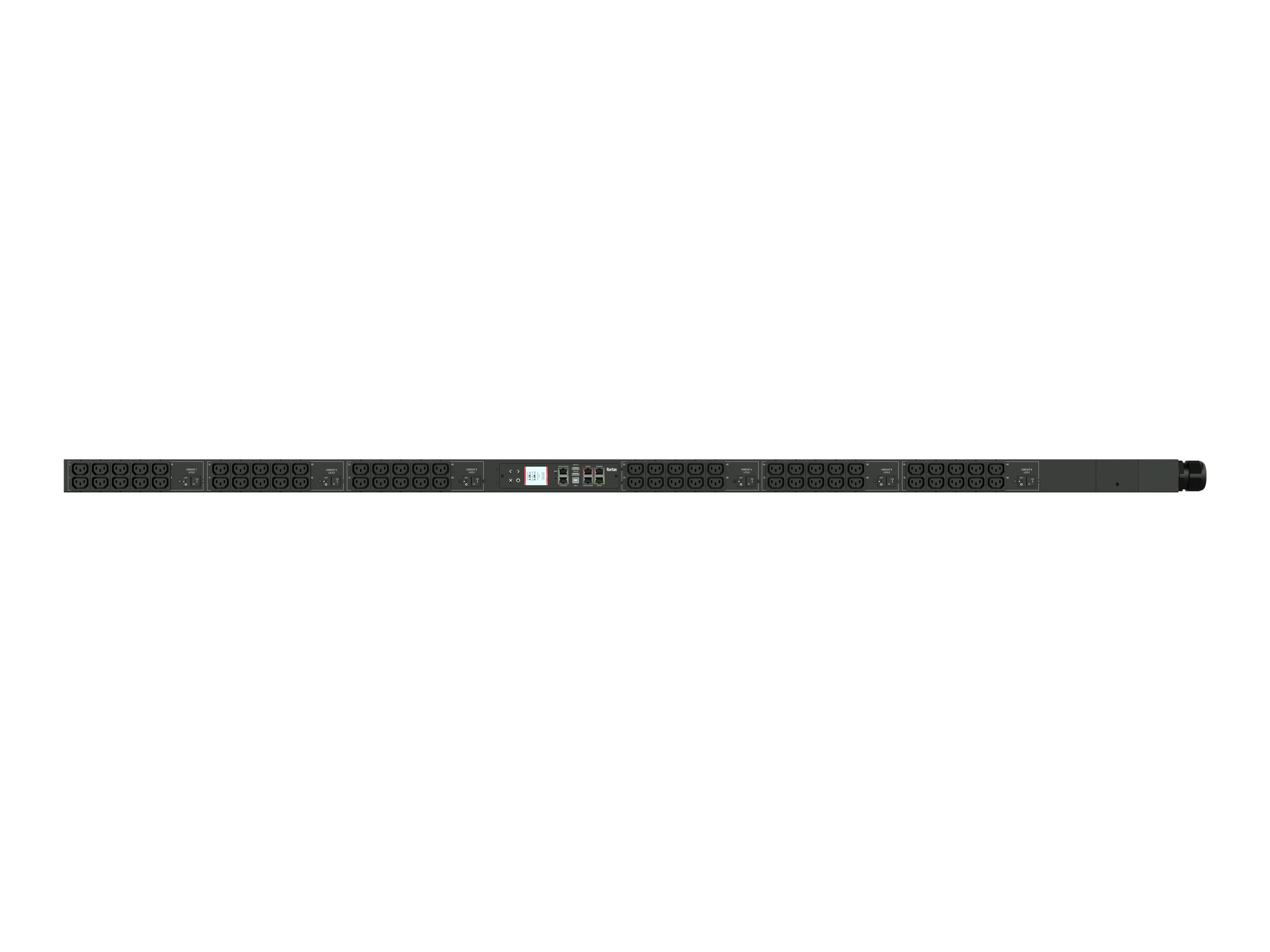

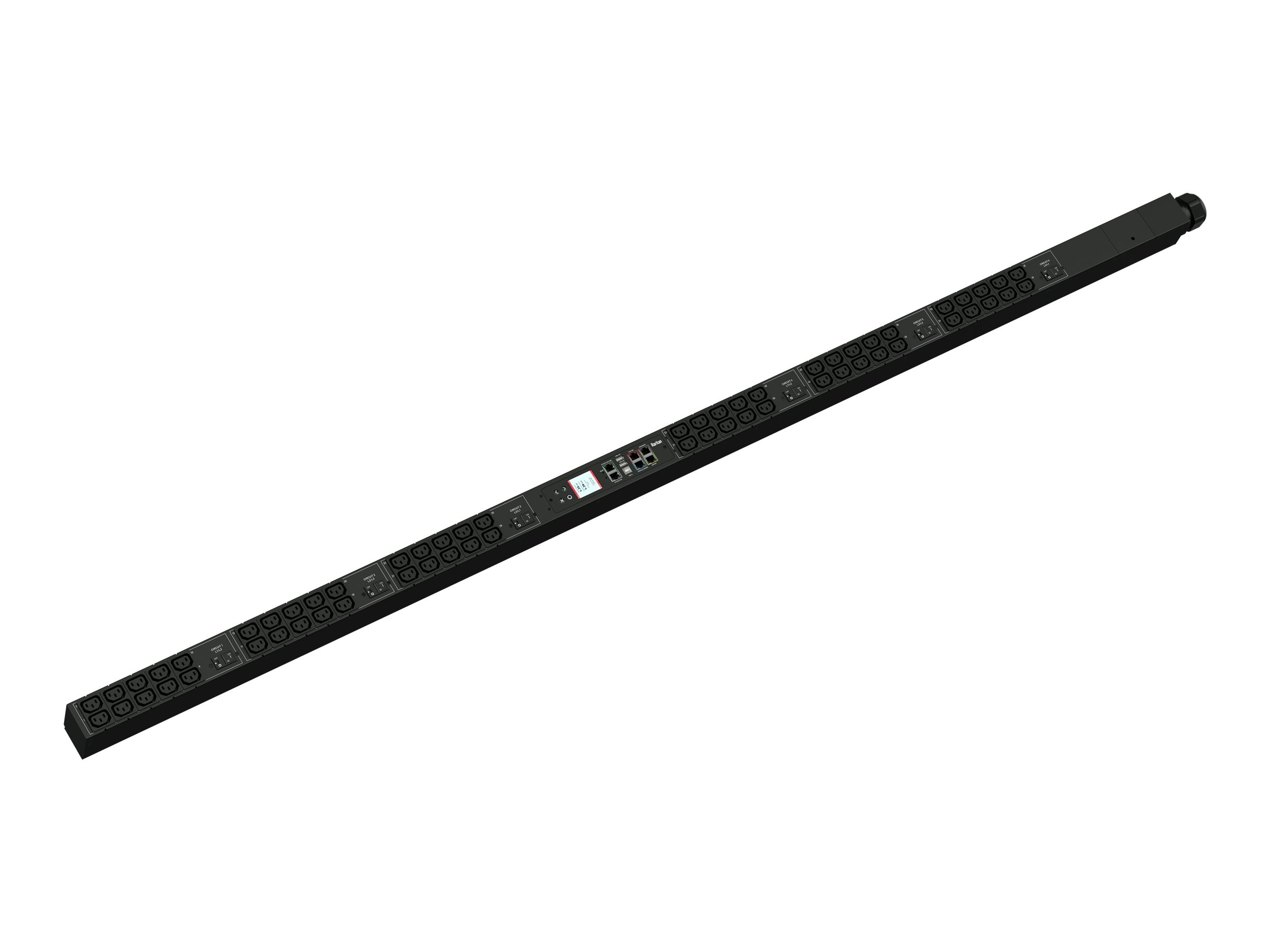

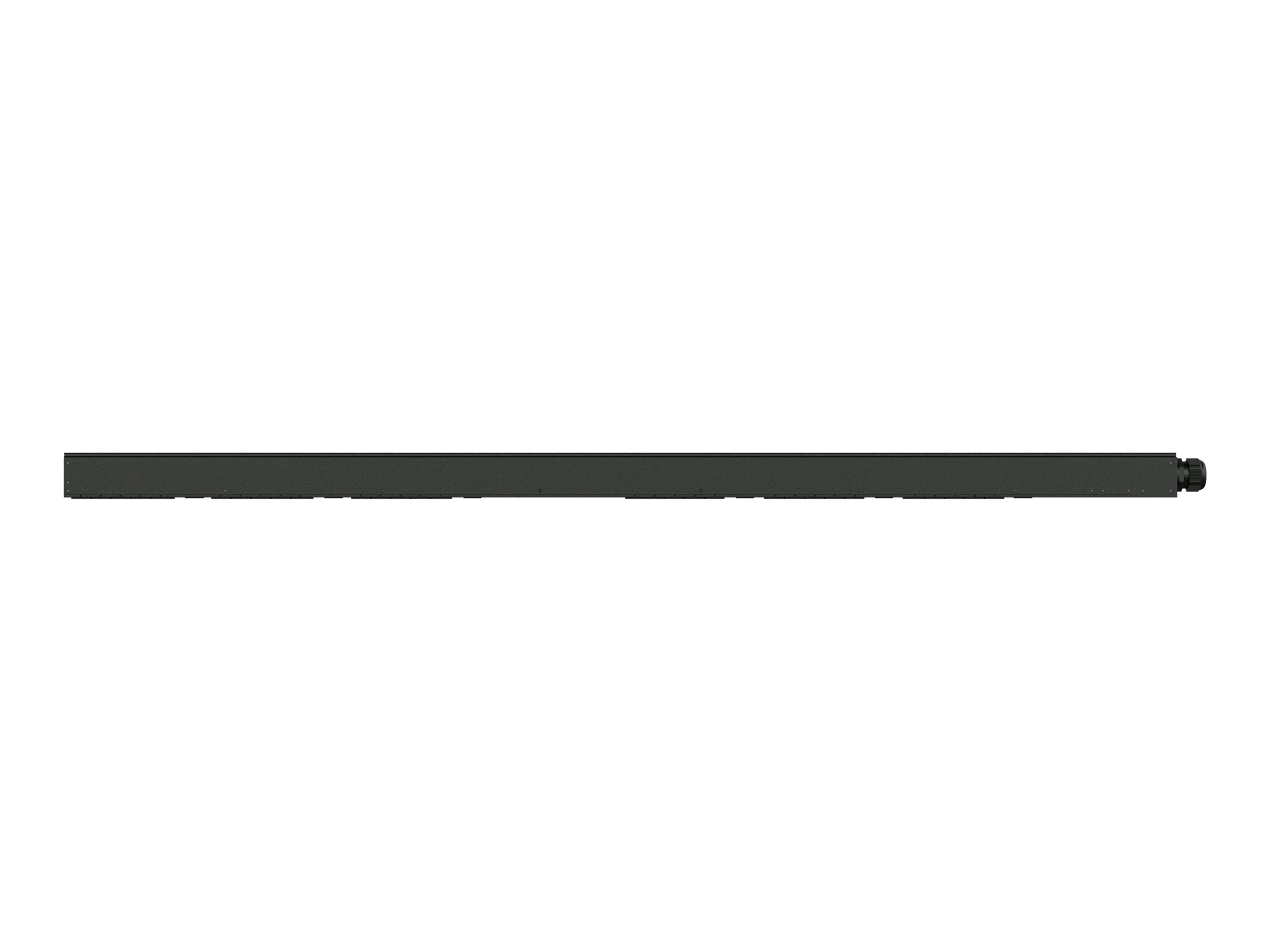

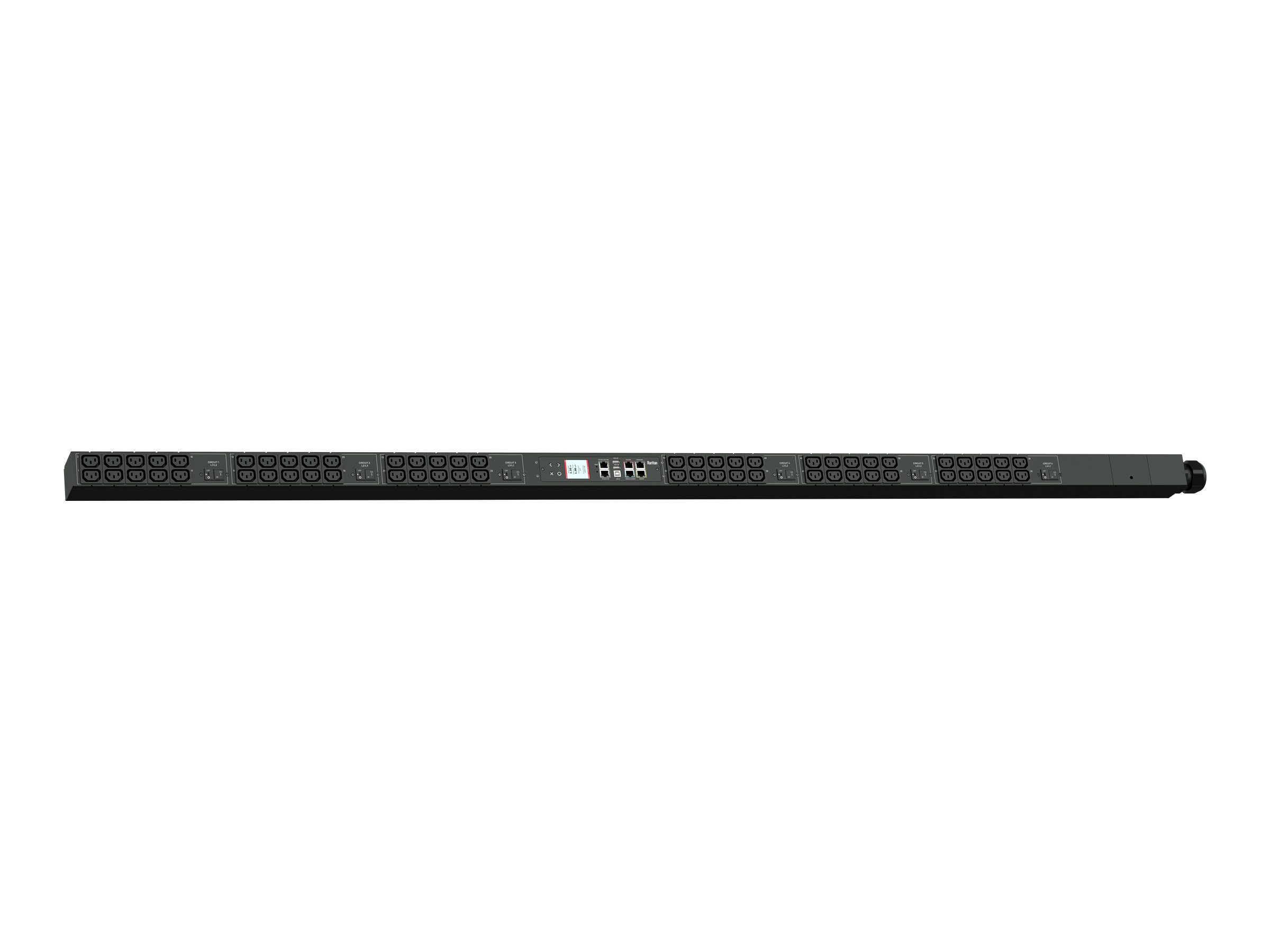

Raritan PX3-1349V-V2K3
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-1349V-V2K3
- Power distribution unit (rack-mountable)
- AC 208 V
- 14400 VA
- 3-phase 4 Wire delta
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: CS8365C
- output connectors: 60 (60 x IEC 60320 C13)
- 0U
- 3 m cord
- green
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-1349V-V2K3 |
| SHI Part #: | 35423991 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-1349V-V2K3 - Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase 4 Wire delta - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: CS8365C - output connectors: 60 (60 x IEC 60320 C13) - 0U - 3 m cord - green |
| Manufacturer | Legrand |
| MSRP | $2,645.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 198.1 cm |
| Dimensions & Weight / Weight | 10.2 kg |
| Dimensions & Weight / Width | 5.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Green |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 60 |
| Power Device / Power Capacity (VA) | 14400 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 198.1 cm |
| Weight | 10.2 kg |
| Width | 5.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 14 cm |
| Shipping Height | 229.7 cm |
| Shipping Weight | 13.7 kg |
| Shipping Width | 38 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Green |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, replaceable controller, cord retention outlet, 6 x LEGBX66-20 overload protection, power cable IP20 compliant |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365C |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase 4 Wire delta |
| Max Electric Current | 40 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Power Output Connectors Details | 60 x power IEC 60320 C13 - 208 V 12 A |
