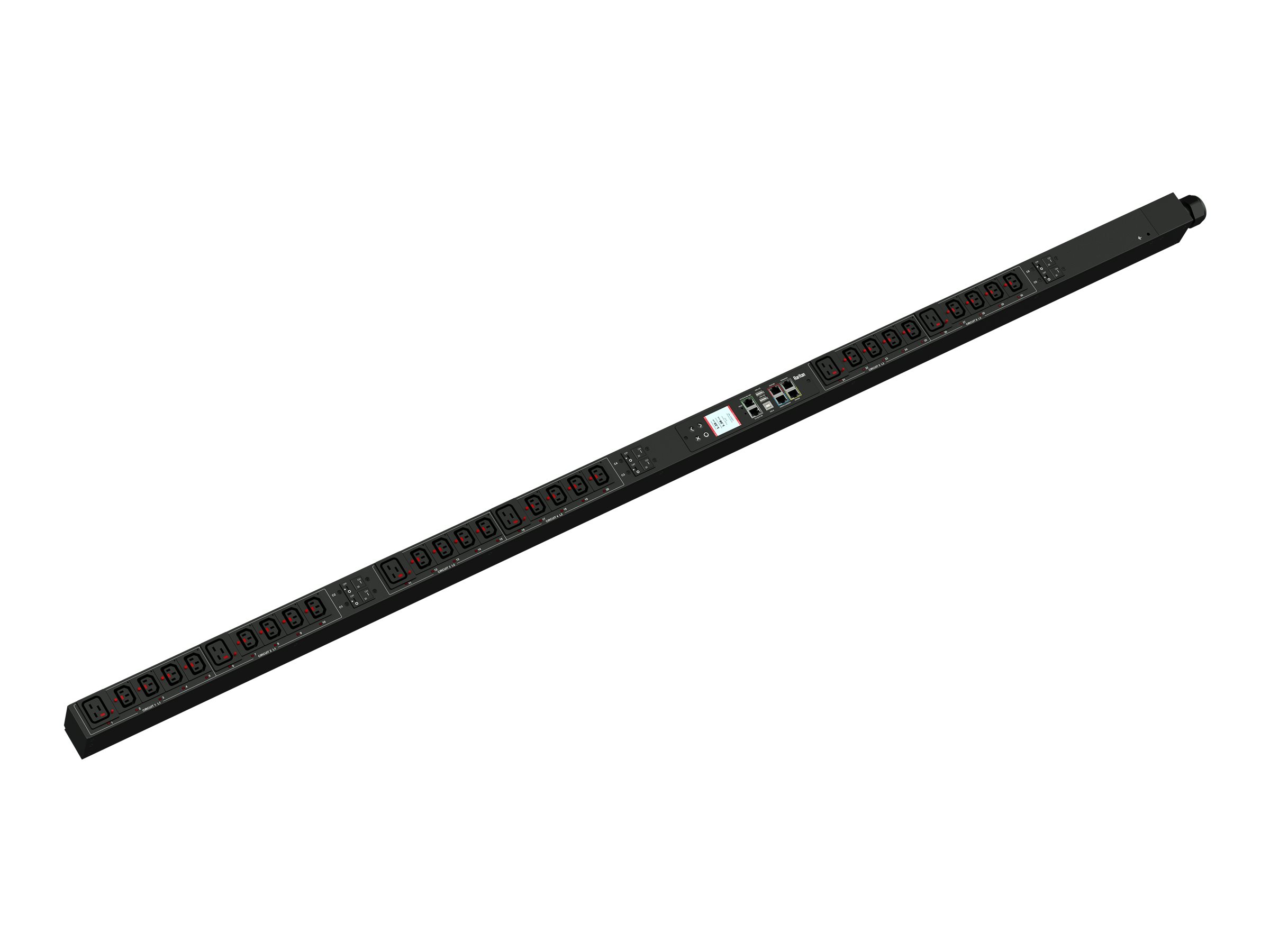

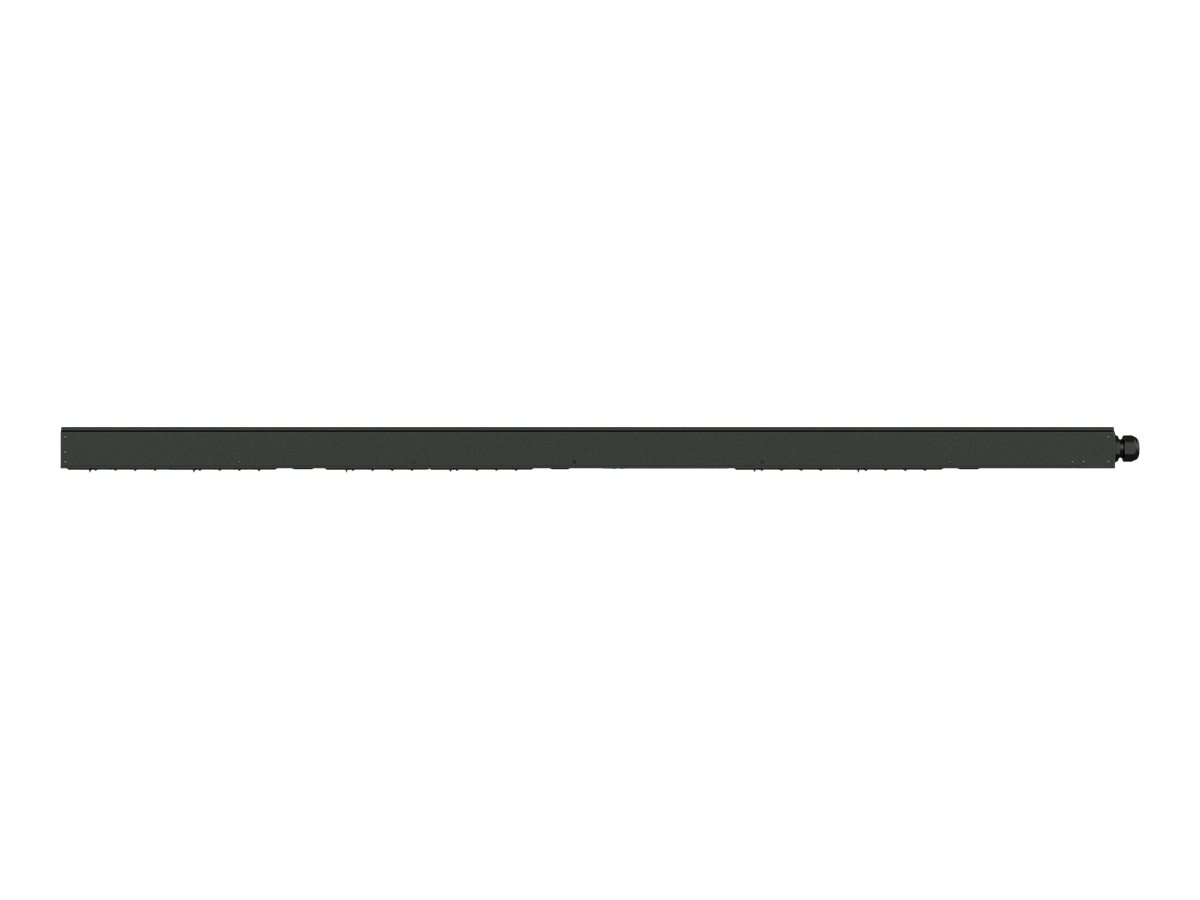

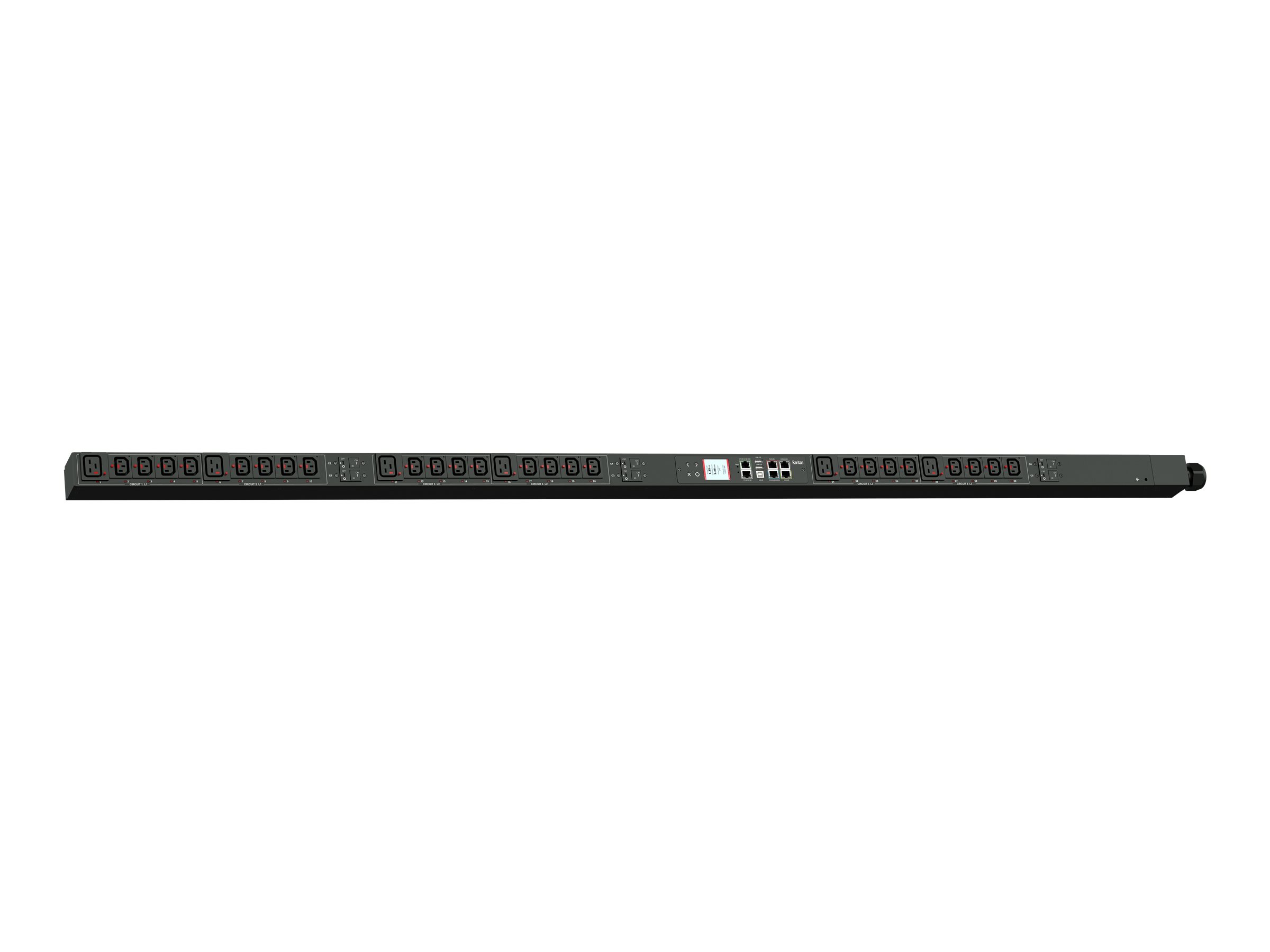

Raritan PX intelligent rack PDU series PX3-5668U-E2M5V2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX intelligent rack PDU series PX3-5668U-E2M5V2
- Power distribution unit (rack-mountable)
- AC 400 V
- 22200 VA
- 3-phase WYE (star)
- Ethernet 10/100, RS-232, Ethernet 10/100/1000
- input: IEC 60309 3P+N+E
- output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5668U-E2M5V2 |
| SHI Part #: | 35322019 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX intelligent rack PDU series PX3-5668U-E2M5V2 - Power distribution unit (rack-mountable) - AC 400 V - 22200 VA - 3-phase WYE (star) - Ethernet 10/100, RS-232, Ethernet 10/100/1000 - input: IEC 60309 3P+N+E - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,933.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.1 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Power Capacity (VA) | 22200 VA |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.1 cm |
| Height | 178 cm |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 207 cm |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21, ISO 62053-21 |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, overcurrent protection, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 22200 VA |
| Power Capacity Details | 21.1 kVA at 380 V, 23 kVA at 415 V |
| Power Output Connectors Details |
|
