Raritan PX intelligent PX3-4197X2U-K2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

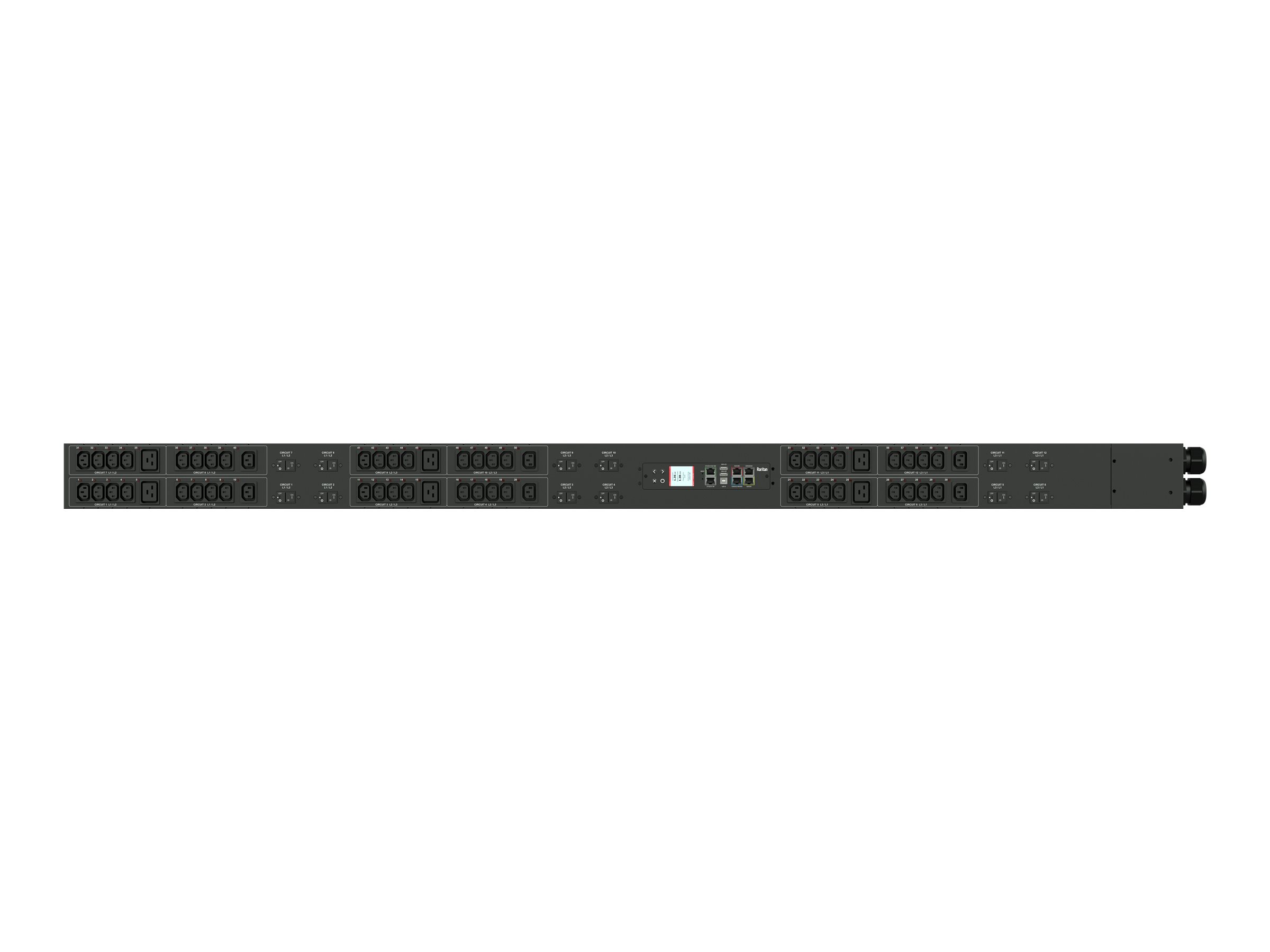

Raritan PX intelligent PX3-4197X2U-K2
- Power distribution unit (rack-mountable)
- AC 208 V
- 33300 VA
- 3-phase
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: CS8365C
- output connectors: 60 (6 x IEC 60320 C19, 54 x IEC 60320 C13)
- 0U
- 3 m cord
- blue
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-4197X2U-K2 |
| SHI Part #: | 35263893 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX intelligent PX3-4197X2U-K2 - Power distribution unit (rack-mountable) - AC 208 V - 33300 VA - 3-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: CS8365C - output connectors: 60 (6 x IEC 60320 C19, 54 x IEC 60320 C13) - 0U - 3 m cord - blue |
| Manufacturer | Legrand |
| MSRP | $4,710.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 186.7 cm |
| Dimensions & Weight / Weight | 17.4 kg |
| Dimensions & Weight / Width | 10.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Blue |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 60 |
| Power Device / Power Capacity (VA) | 33300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 186.7 cm |
| Weight | 17.4 kg |
| Width | 10.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18 cm |
| Shipping Height | 222 cm |
| Shipping Weight | 22.2 kg |
| Shipping Width | 41 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Blue |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A |
| Features | LCD display, cascadable, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, ISO/IEC 62053-21 1% metering accuracy, top-end feed cord entry, 12 x LEGBX66-20 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365C |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase |
| Max Electric Current | 50 A |
| Output Voltage | AC 208-240 V |
| Power Capacity | 33300 VA |
| Power Capacity Details | 28.8 kVA at 208 V, 33.3 kVA at 240 V |
| Power Output Connectors Details |
|
