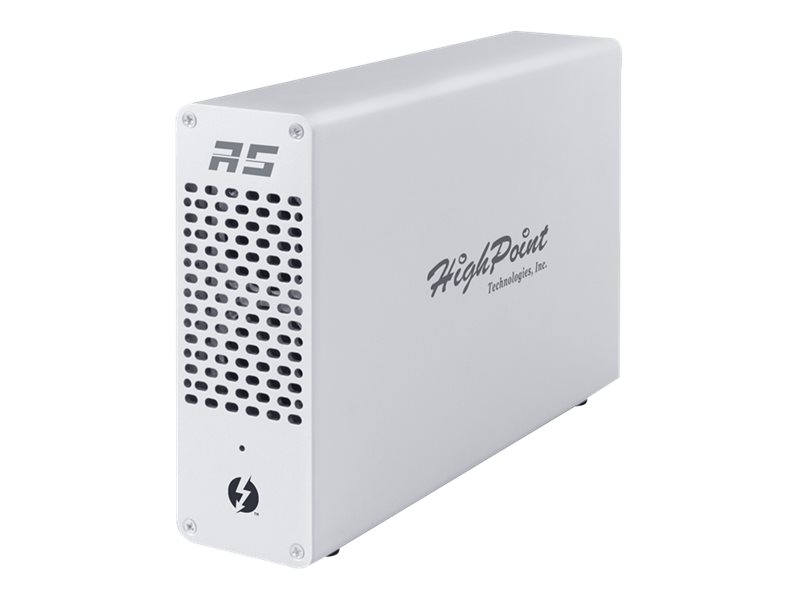

HighPoint RocketStor 6661A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HighPoint RocketStor 6661A
- Storage controller (RAID) with power indicator
- 8 Channel
- SATA 6Gb/s / SAS 6Gb/s
- Thunderbolt 3
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | RS6661A-MSAS2 |
| SHI Part #: | 35260521 |
| Category: | Power supply units |
| UNSPSC: | 39121004 |
| Manufacturer: | HighPoint |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power supply units |
| Description | HighPoint RocketStor 6661A - Storage controller (RAID) with power indicator - 8 Channel - SATA 6Gb/s / SAS 6Gb/s - Thunderbolt 3 |
| Manufacturer | HighPoint |
| MSRP | $369.00 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.7 cm |
| Dimensions & Weight / Height | 16 cm |
| Dimensions & Weight / Weight | 2.72 kg |
| Dimensions & Weight / Width | 5.69 cm |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | HighPoint |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage Controller / Form Factor | External |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 24.7 cm |
| Height | 16 cm |
| Weight | 2.72 kg |
| Width | 5.69 cm |
| Expansion / Connectivity | |
| Connections | 2 x Thunderbolt 3 input - 24 pin USB-C |
| Interfaces | 2 x SATA 6Gb/s / SAS 6Gb/s - 26 pin 4x Mini SAS (external) |
| General | |
| Device Type | Storage controller (RAID) - external |
| Features | Power indicator |
| Host Bus | Thunderbolt 3 |
| Product Material | Aluminum |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |

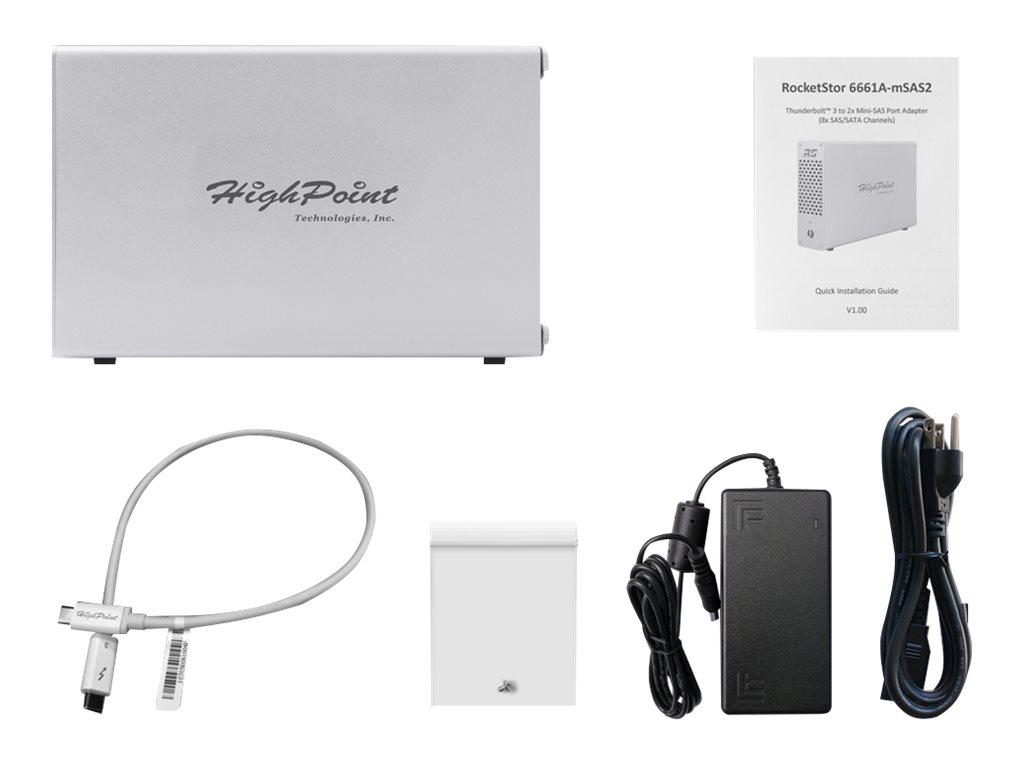

| Cables Included | 1 x Thunderbolt 3 cable |
| Compliant Standards | FCC, RoHS, WEEE, REACH |
| MTBF | 920,585 hours |
| Power | |
| Power Consumption Operational | 60 Watt |
| Type | Power adapter |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.10 or later, Windows 8 or later |
| Storage Controller | |
| Channel Qty | 8 |
| Data Transfer Rate | 6 Gbit/s |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Max Storage Devices Qty | 8 |
| Supported Devices | Disk array (RAID) |
