Cisco Nexus 9500R Buffer Linecard with external TCAM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

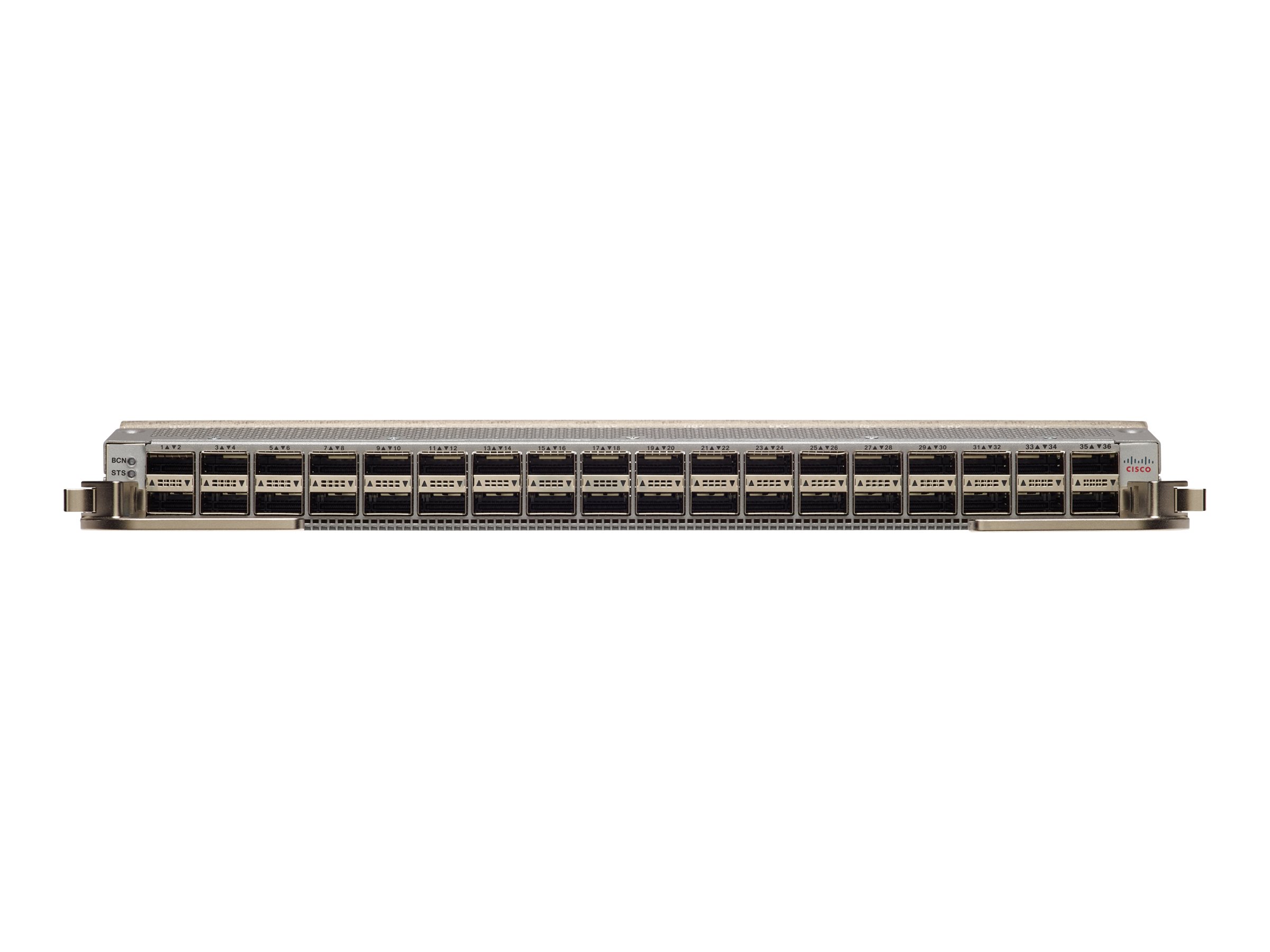

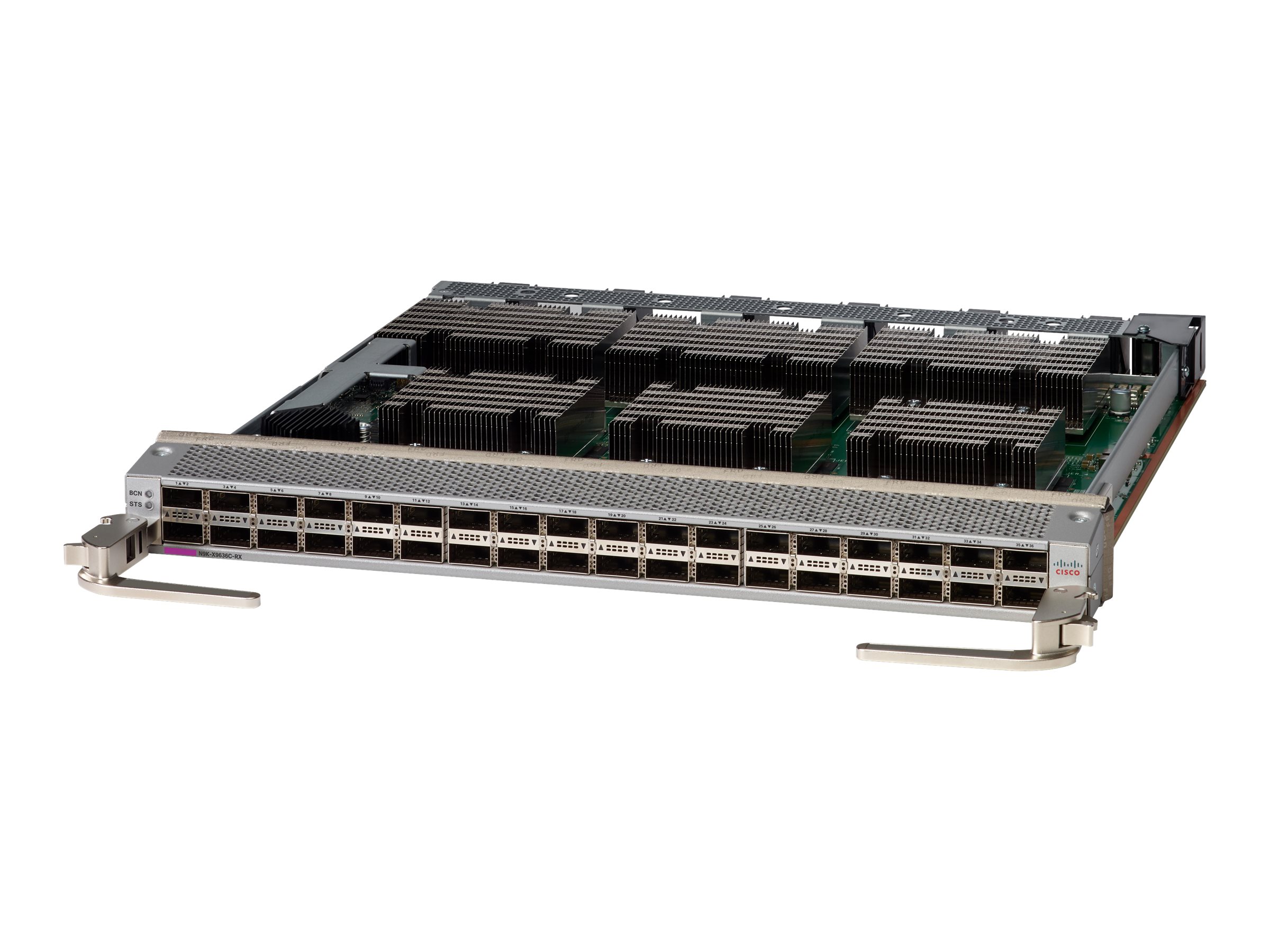

Cisco Nexus 9500R Buffer Linecard with external TCAM
- Expansion module
- 100 Gigabit QSFP28 x 36
- for P/N: N9K-C9504-FM-R
| Additional Details | |
|---|---|
| Mfr Part #: | N9K-X9636C-RX= |
| SHI Part #: | 35256567 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Cisco Nexus 9500R Buffer Linecard with external TCAM - Expansion module - 100 Gigabit QSFP28 x 36 - for P/N: N9K-C9504-FM-R |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Weight | 7.2 kg |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 100 Gigabit Ethernet |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | P/N: C1-N9K-C9508, N9K-C9504-FM-R |
| Dimensions & Weight | |
| Weight | 7.2 kg |
| Expansion / Connectivity | |
| Interfaces | 36 x 100Gb Ethernet - QSFP28 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
| MTBF | 224,060 hours |
| Networking | |
| Capacity |
|
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Features | ECMP, built-in ASIC, 16GB packet buffer |
| MAC Address Table Size | 750000 entries |
| Performance | Bandwidth: 3.6 Tbps |
| Ports | 100 Gigabit QSFP28 x 36 |
| Power | |
| Power Consumption Operational | 1050 Watt |
| Processor / Memory | |
| Flash Memory | 32 GB |
| Processor Clock Speed | 2.4 GHz |
| RAM | 16 GB |
