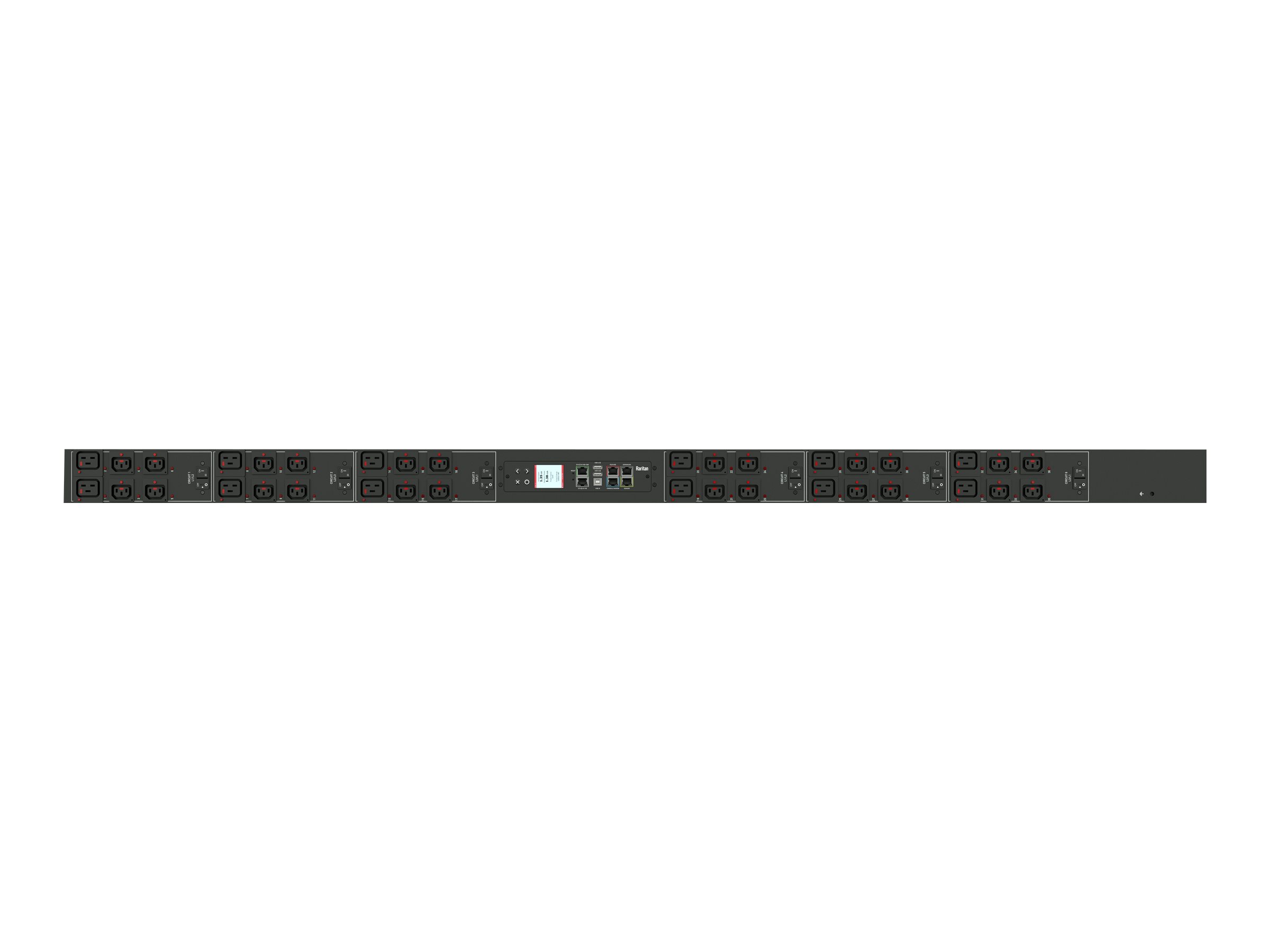

Raritan PX3-4749V-E2N1V2K1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-4749V-E2N1V2K1
- Power distribution unit (rack-mountable)
- AC 208 V
- 14400 VA
- 3-phase 4 Wire delta
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: CS8365C
- output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-4749V-E2N1V2K1 |
| SHI Part #: | 35224053 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-4749V-E2N1V2K1 - Power distribution unit (rack-mountable) - AC 208 V - 14400 VA - 3-phase 4 Wire delta - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: CS8365C - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - red |
| Manufacturer | Legrand |
| MSRP | $3,549.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.9 cm |
| Dimensions & Weight / Height | 165 cm |
| Dimensions & Weight / Weight | 13.1 kg |
| Dimensions & Weight / Width | 7.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 14400 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8.9 cm |
| Height | 165 cm |
| Weight | 13.1 kg |
| Width | 7.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 14 cm |
| Shipping Height | 191 cm |
| Shipping Weight | 15.6 kg |
| Shipping Width | 33 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking outlets, power cable IP20 compliant |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CS8365C |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase 4 Wire delta |
| Max Electric Current | 40 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14400 VA |
| Power Capacity Details | 14.4 kVA at 208 V, 16.6 kVA at 240 V |
| Power Output Connectors Details |
|
