Advantech PSD-A60W24
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

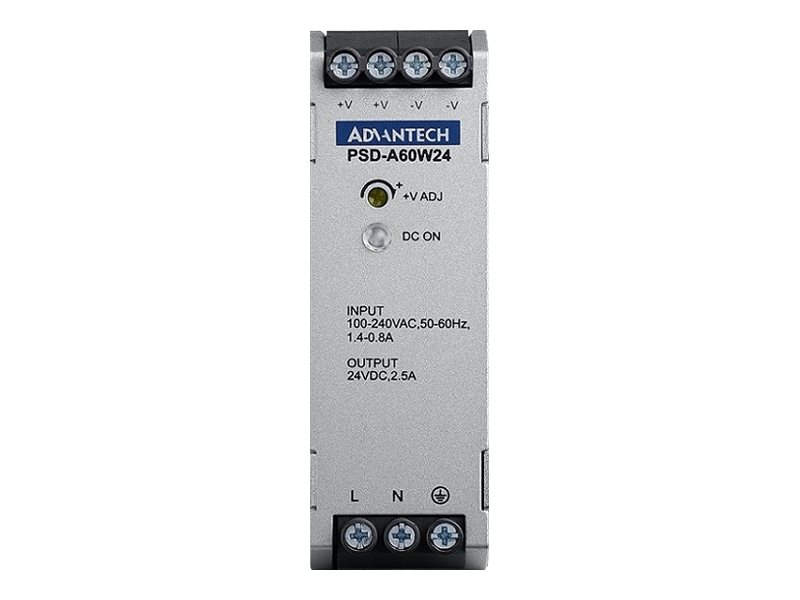

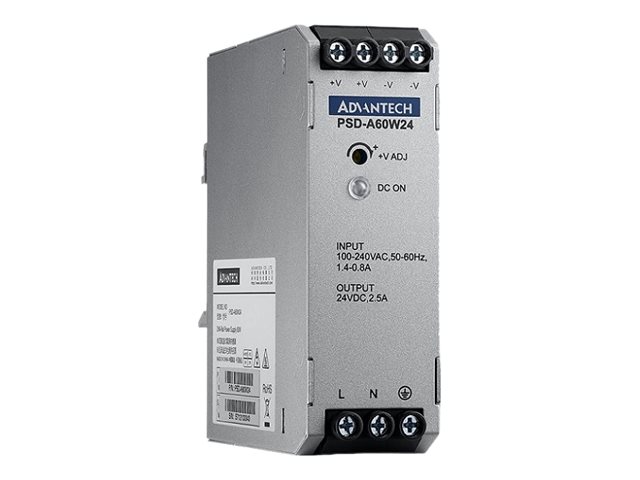

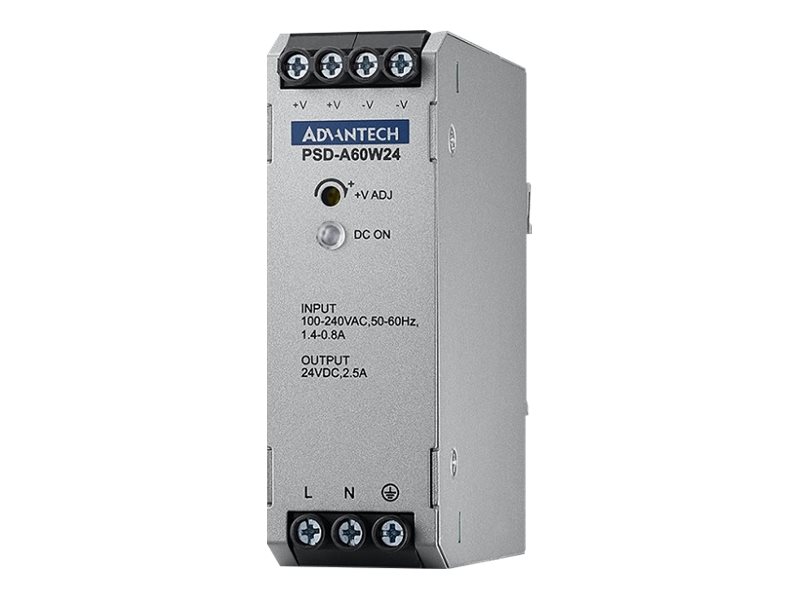

Advantech PSD-A60W24
- Power supply (DIN rail mountable)
- AC 115/230 V
- 60 Watt
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PSD-A60W24 |
| SHI Part #: | 35214263 |
| Category: | Power supply units |
| UNSPSC: | 39121004 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power supply units |
| Description | Advantech PSD-A60W24 - Power supply (DIN rail mountable) - AC 115/230 V - 60 Watt |
| Manufacturer | Advantech |
| MSRP | $73.98 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.02 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 315 g |
| Dimensions & Weight / Width | 3.2 cm |
| General / Subcategory | Power supplies |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Power Device / Form Factor | DIN rail mountable |
| Power Device / Power Supply Compatibility | Power equipment |
| Power Device / Voltage Required | AC 115/230 V |
| Product Type | Power supply |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 9.02 cm |
| Height | 10 cm |
| Weight | 315 g |
| Width | 3.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| General | |
| Device Type | Power supply - DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV, CB, CCC, RoHS, IEC 60068-2-27, IEC 60068-2-6, GB 4943.1, IEC60950-1 |
| Features | Overheat protection, overvoltage protection, overload protection, short-circuit protection |
| MTBF | 500,000 hours |
| Power Device | |
| Efficiency | 89% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | Screw terminal |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 85 - 264 / 110 - 375 V |
| Output Voltage | 24 V |
| Power Capacity | 60 Watt |
