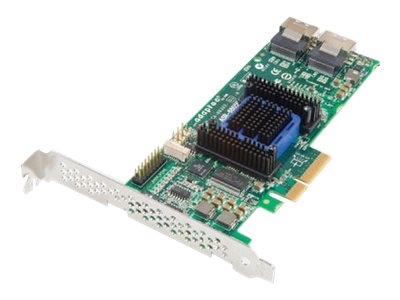

Advantech 96RC-SAS-4P-PE-AD2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech 96RC-SAS-4P-PE-AD2
- Storage controller (RAID)
- 4 Channel
- SATA 6Gb/s / SAS 6Gb/s
- low profile
- RAID RAID 0, 1, 10, JBOD, 1E
- PCIe x1
| Additional Details | |
|---|---|
| Mfr Part #: | 96RC-SAS-4P-PE-AD2 |
| SHI Part #: | 35214141 |
| Category: | Peripheral controller cards |
| UNSPSC: | 43201407 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral controller cards |
| Description | Advantech 96RC-SAS-4P-PE-AD2 - Storage controller (RAID) - 4 Channel - SATA 6Gb/s / SAS 6Gb/s - low profile - RAID RAID 0, 1, 10, JBOD, 1E - PCIe x1 |
| Manufacturer | Advantech |
| UNSPSC | 43201407 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 6.4 cm |
| General / Product Type | Storage controller (RAID) |
| Header / Brand | Advantech |
| Packaged Quantity | 1 |
| Storage Controller / Form Factor | Plug-in card |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 6.4 cm |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal) |
| General | |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Host Bus | PCIe x1 |
| Miscellaneous | |
| Cables Included | 1 x Serial ATA cable - 70 cm |
| Compliant Standards | UL, VCCI, C-Tick, FCC, RoHS, KCC, WEEE, REACH |
| Included Accessories | Low-profile bracket |
| MTBF | 889,115 hours |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Storage Controller | |
| Buffer Size | 128 MB |
| Channel Qty | 4 |
| Data Transfer Rate | 6 Gbit/s |
| Interface | SATA 6Gb/s / SAS 6Gb/s |
| Processor | PMC-Sierra PM8013 |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD, RAID 1E |
| Supported Devices | Hard drive, disk array (RAID) |
