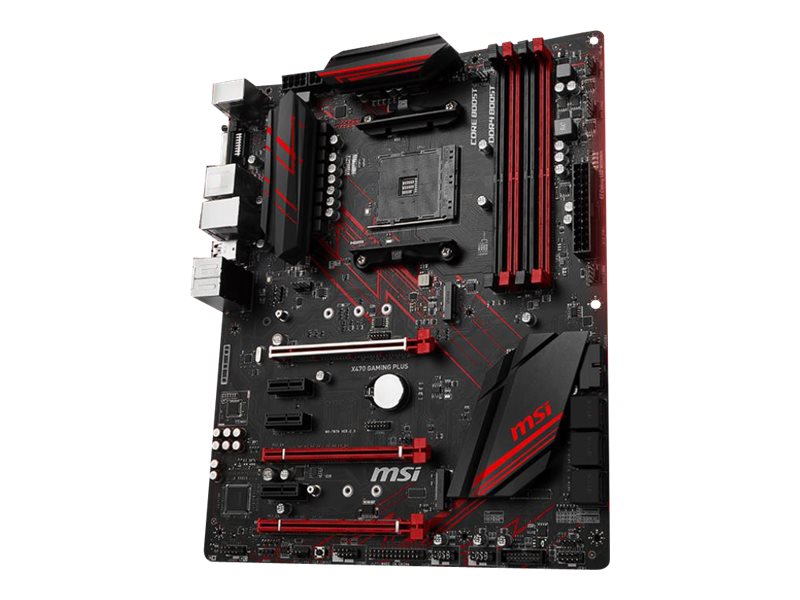

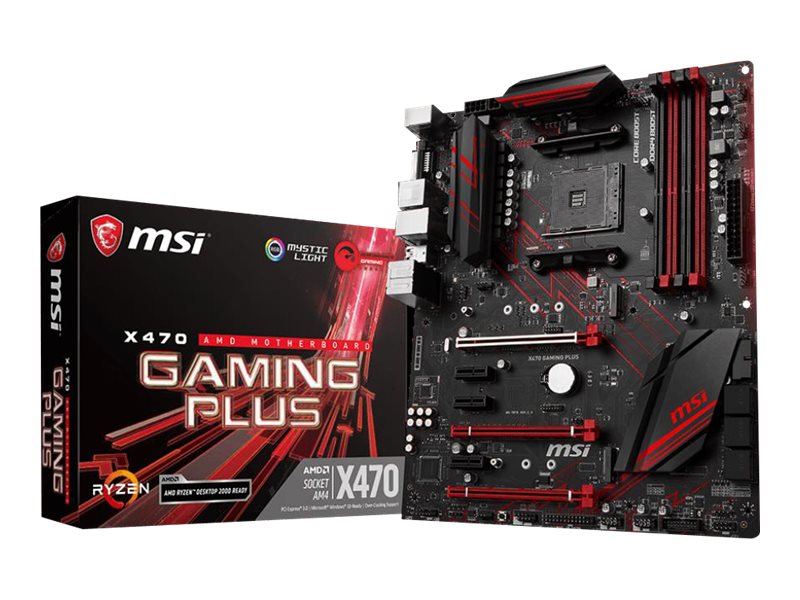

MSI X470 GAMING PLUS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
MSI X470 GAMING PLUS
- Motherboard
- ATX
- Socket AM4
- AMD X470
- USB 3.1 Gen 1, USB 3.1 Gen 2
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | X470GPLUS |
| SHI Part #: | 35210051 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI X470 GAMING PLUS - Motherboard - ATX - Socket AM4 - AMD X470 - USB 3.1 Gen 1, USB 3.1 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | AMD X470 |
| Mainboard / Compatible Processors |
|
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, MSI Audio Boost, Clear CMOS Button, MSI Gaming Device Port, Debug LED, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Game Boost, LAN Protect, Nahimic 3 Sound Technology, MSI Core Boost |
| General | |
| Chipset Type | AMD X470 |
| Compatible Processors | Athlon, A series, Ryzen |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| Graphics | |
| Max Allocated RAM Size | 2048 MB |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | I/O back plate |
| Software Included | MSI Live Update, MSI Command Center, RAMdisk, MSI Gaming Hotkey, MSI X-BOOST |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3066 MHz (O.C.) |
| Features | Dual channel memory architecture, A-XMP support |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
