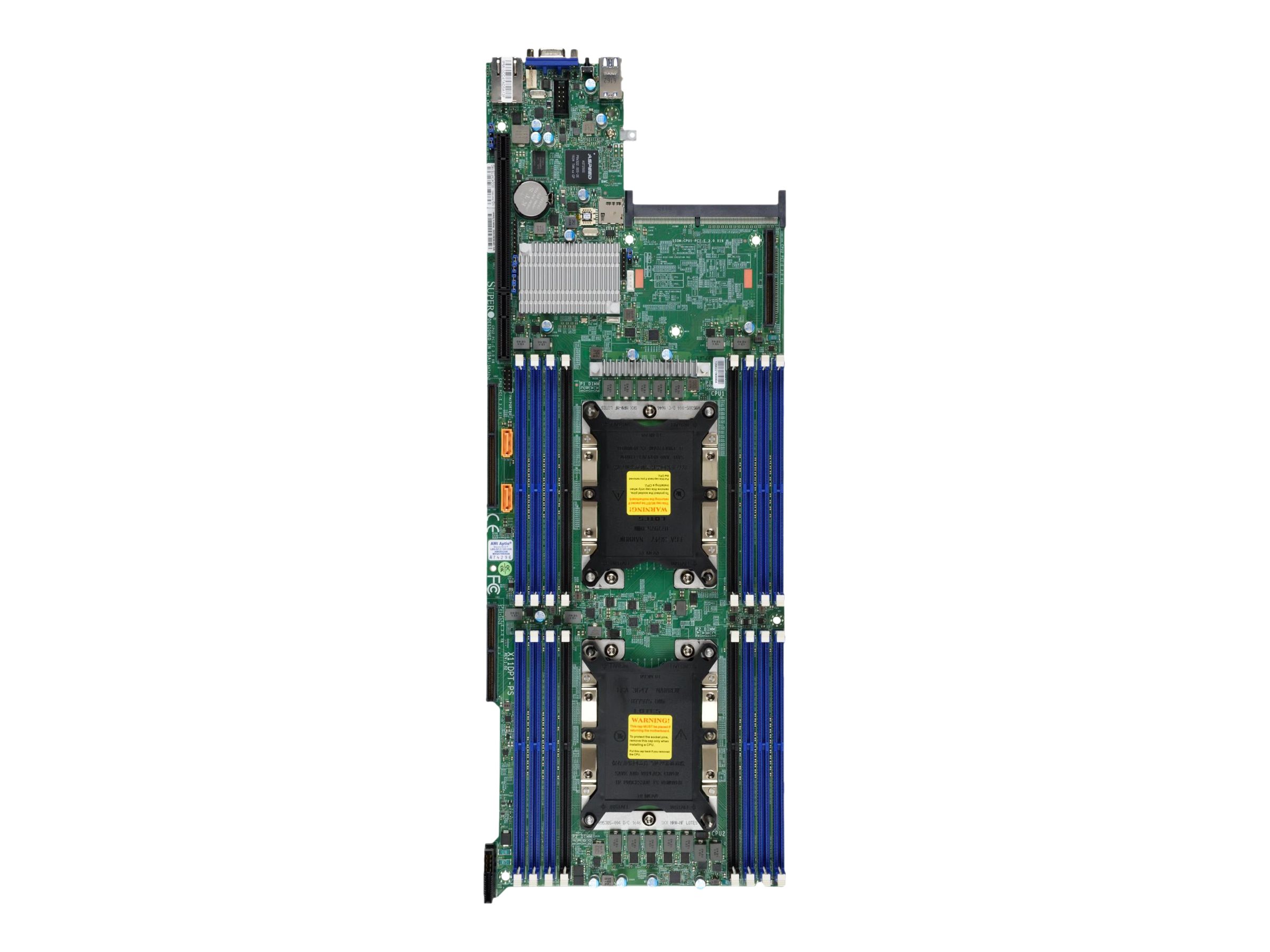

SUPERMICRO X11DPT-PS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SUPERMICRO X11DPT-PS
- Motherboard
- Socket P
- 2 CPUs supported
- C621 Chipset
- USB 3.0
- onboard graphics
| Additional Details | |
|---|---|
| Mfr Part #: | MBD-X11DPT-PS-P |
| SHI Part #: | 35076678 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | SUPERMICRO X11DPT-PS - Motherboard - Socket P - 2 CPUs supported - C621 Chipset - USB 3.0 - onboard graphics |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 47.9 cm |
| Dimensions & Weight / Width | 17.27 cm |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Compatible Processors | Xeon |
| Mainboard / Processor Socket | Socket P |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Storage Interfaces | Intel C621: SATA-600 -connectors: 10 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Features | |
| BIOS Features | UEFI BIOS, IPMI 2.0 support |
| BIOS Type | AMI |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Hardware Monitoring | Chassis temperature, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| General | |
| Chipset Type | Intel C621 |
| Compatible Processors | Xeon (supports CPUs with up to 28 cores, Maximum TDP 165 Watt) |
| Data Bus Transfer Rate | 10.4 GT/s |
| Max Processors Qty | 2 |
| Processor Socket | Socket P |
| Product Type | Motherboard |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | RoHS |
| Depth | 47.9 cm |
| Width | 17.27 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Details |
|
| Max Size | 2 TB |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
