Hardware

Supermicro SC826 BE1C4-R1K23WB

MSRP$1,714.67

$1,708.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
- SATA/SAS hot-swap

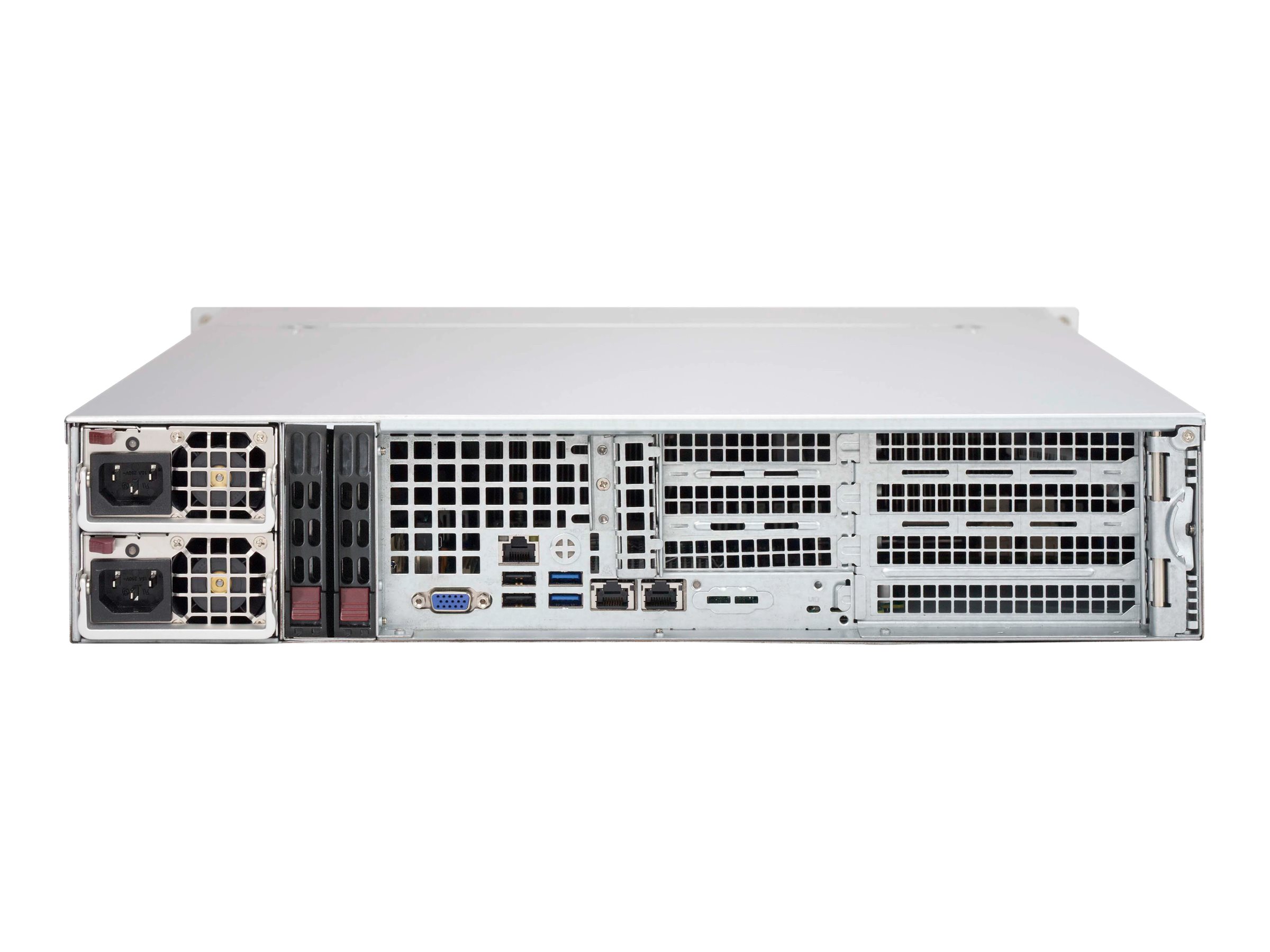

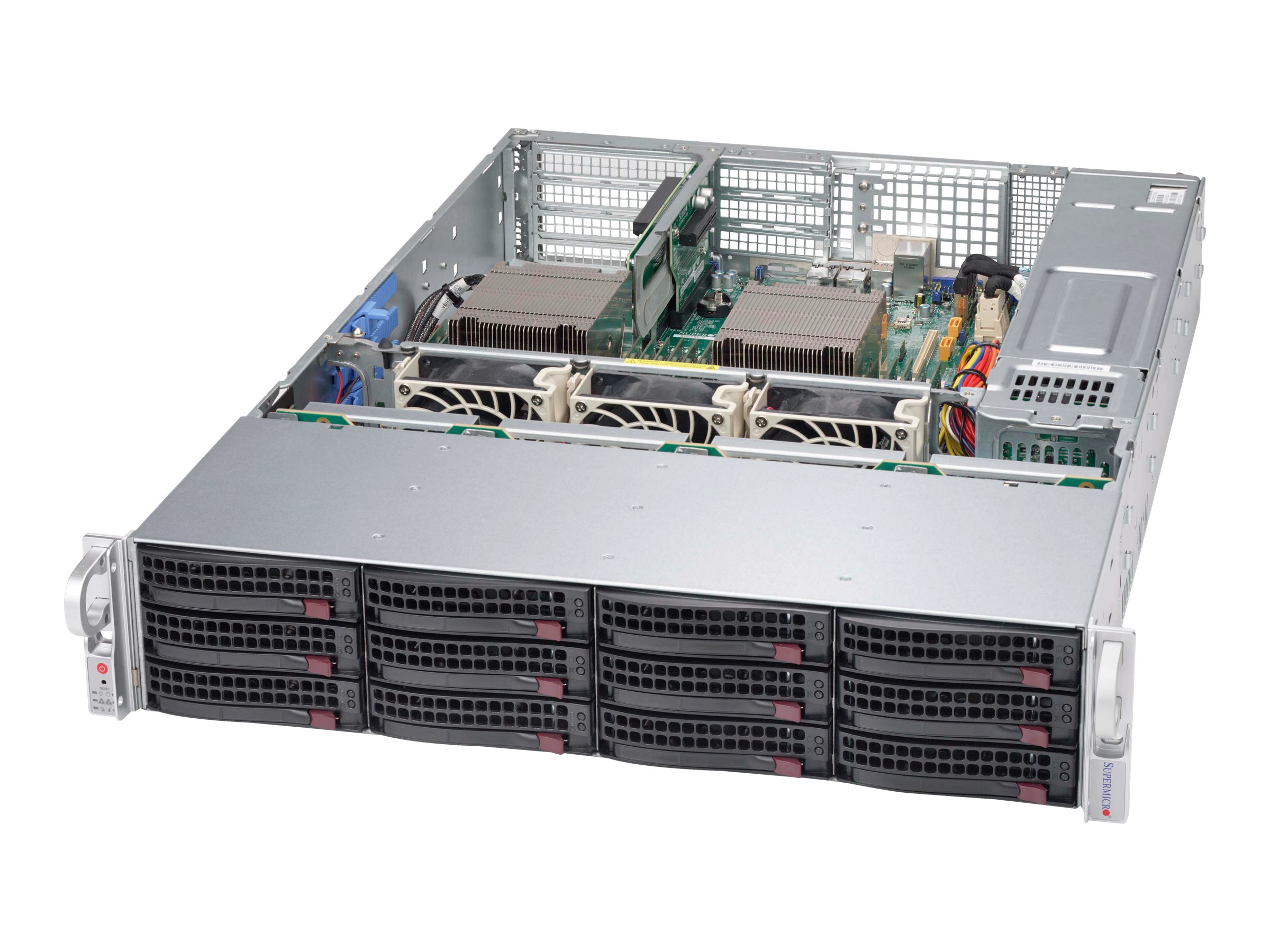

Supermicro SC826 BE1C4-R1K23WB

General Information
Category	Chassis
Description	Supermicro SC826 BE1C4-R1K23WB - - SATA/SAS - hot-swap
Manufacturer	Super Micro Computer
MSRP	$1,714.67
UNSPSC	43201601
Main Specifications
Chassis / Form Factor	Rack-mountable
Chassis / Server Storage Bays	Hot-swap
Chassis / Server Swappable Drive Interface	SATA/SAS
Dimensions & Weight / Depth	64.7 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Width	43.7 cm
Header / Brand	Supermicro
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Type	Power supply
Dimensions & Weight
Depth	64.7 cm
Height	8.9 cm
Width	43.7 cm
Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Expansion Bays	12 (total) / 12 (free) x hot-swap - 3.5"
Expansion Slots	4 x half-length, full-height 3 x low-profile
General
Built-in Devices	LED panel
Color	Black
Cooling System	Internal: 80 mm fan x 3 / Pulse-width modulation (PWM) support
Form Factor	Rack-mountable - 2U
Hot-Swap Bays Qty	12
Server Swappable Drive Interface	SATA/SAS
System Cabinet Features	Chassis intrusion detection
Miscellaneous
Compliant Standards	FCC Class A certified, BSMI, CCC, CE/EMC, UL/cUL
Included Accessories	SAS / SATA backplane
Power
80 PLUS Certification	80 PLUS Titanium
Power Device	Power supply
Power Provided	1200 Watt
Voltage Required	(50 - 60 Hz)
