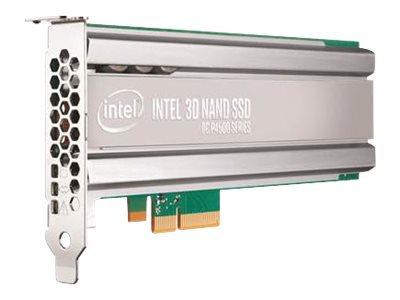

Intel P4500 Entry Flash Adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Intel P4500 Entry Flash Adapter
- Solid state drive
- 4 TB
- internal
- PCIe card (HHHL)
- PCI Express 3.0 x4 (NVMe)
- for ThinkSystem SD530; SR570; SR630; SR650; SR850; SR860; SR950
| Additional Details | |
|---|---|
| Mfr Part #: | 7SD7A05776 |
| SHI Part #: | 34995827 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Intel P4500 Entry Flash Adapter - Solid state drive - 4 TB - internal - PCIe card (HHHL) - PCI Express 3.0 x4 (NVMe) - for ThinkSystem SD530; SR570; SR630; SR650; SR850; SR860; SR950 |
| Manufacturer | Lenovo |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 168 mm |
| Dimensions & Weight / Height | 19 mm |
| Dimensions & Weight / Weight | 182 g |
| Dimensions & Weight / Width | 68 mm |
| Hard Drive / Capacity | 4 TB |
| Hard Drive / Form Factor | PCIe card (HHHL) |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Intel |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | PCIe card (HHHL) |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 4 TB |
| Depth | 168 mm |
| Device Type | Solid state drive - internal |
| Features | Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, S.M.A.R.T. |
| Form Factor | PCIe card (HHHL) |
| Height | 19 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| Weight | 182 g |
| Width | 68 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | CSA, UL, C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, KCC Article 11.1 |
| Included Accessories | 2U bracket |
| Performance | |
| 4KB Random Read | 645000 IOPS |
| 4KB Random Write | 62500 IOPS |
| Average Latency | 10 µs |
| Drive Writes Per Day (DWPD) | 0.65 |
| Internal Data Rate | 3.2 GBps (read) / 1.8 GBps (write) |
| SSD Endurance | 4.84 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Software & System Requirements | |
| OS Required | Red Hat Enterprise Linux 6 x64 Edition, SuSE Linux Enterprise Server 11 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2016, VMware ESXi 6.0, VMware ESXi 6.5 |
