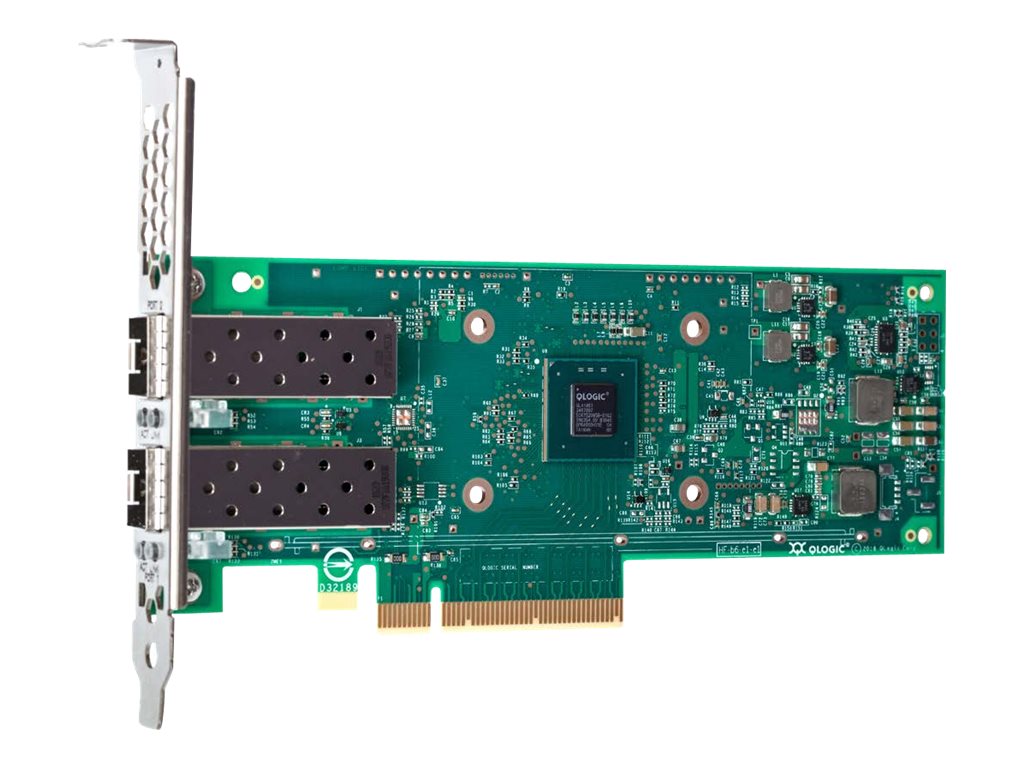

Lenovo ThinkSystem QLogic QL41262
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo ThinkSystem QLogic QL41262
- Network adapter
- PCIe 3.0 x8 low profile
- 25 Gigabit SFP28 x 2
- for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX1320 Appliance; VX7820 Appliance
| Additional Details | |
|---|---|
| Mfr Part #: | 4XC7A08228 |
| SHI Part #: | 34995785 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Lenovo ThinkSystem QLogic QL41262 - Network adapter - PCIe 3.0 x8 low profile - 25 Gigabit SFP28 x 2 - for ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX1320 Appliance; VX7820 Appliance |
| Manufacturer | Lenovo |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.7 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Header / Brand | Lenovo |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 25 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 16.7 cm |
| Height | 6.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 25Gb Ethernet - SFP28 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | CB 60950-1, CSA C22.2, TUV, IEC 60950-1, CB, FCC, FCC CFR47 Part 15 A, ICES-003 Class A, EN 55032, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class A, AS/NZS, BSMI CNS 13438, RoHS |
| Included Accessories | Full-height bracket, low-profile bracket |
| Networking | |
| Capacity | Jumbo frame size: 9600 |
| Compliant Standards | IEEE 802.3by, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3x, IEEE 802.1AX |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | SR-IOV, MSI-X, WOL, PXE support, DPDK, TSO, UDP, LSO, GSO, LRO, RSC, RSS, TSS, Interrupt coalescing, DCB, VXLAN, iWARP support, iSER, RoCE, UFP, NPAR |
| Ports | 25 Gigabit SFP28 x 2 |
