Hardware

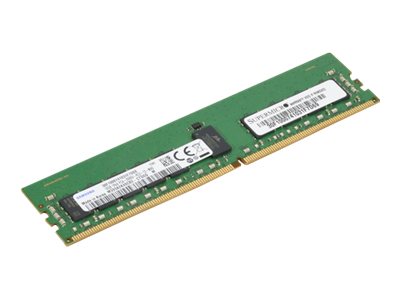

Samsung - DDR4 - module

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
16 GB DIMM 288-pin 2666 MHz / PC4-21300 CL19 1.2 V

Samsung - DDR4 - module

General Information
Category	DRAM
Description	Samsung - DDR4 - module - 16 GB - DIMM 288-pin - 2666 MHz / PC4-21300 - CL19 - 1.2 V - registered - ECC
Manufacturer	Super Micro Computer
UNSPSC	32101602
Main Specifications
Header / Brand	Samsung
Packaged Quantity	1
RAM / Data Integrity Check	ECC
RAM / Form Factor	DIMM 288-pin
RAM / Memory Specification Compliance	PC4-21300
RAM / Memory Speed	2666 MHz
RAM / Registered or Buffered	Registered
RAM / Technology	DDR4 SDRAM
RAM / Type	DRAM
RAM / Upgrade Type	System specific
Service & Support / Type	5-year warranty
General
Capacity	16 GB
Upgrade Type	System specific
Manufacturer Warranty
Service & Support	5-year warranty
Memory
Chips Organization	2048 x 4
Data Integrity Check	ECC
Features	Single rank, On-Die Termination (ODT), sixteen banks, registered
Form Factor	DIMM 288-pin
Latency Timings	CL19 (19-19-19)
Module Configuration	2048 x 72
Module Height (inch)	1.23
Speed	2666 MHz (PC4-21300)
Technology	DDR4 SDRAM
Type	DRAM memory module
Voltage	1.2 V
Miscellaneous
Compliant Standards	RoHS, Lead-Free, Halogen-free

	Product	Qty	Price

We currently have limited stock of this product.
For availability options and shipping info, contact your sales team.

Overview
