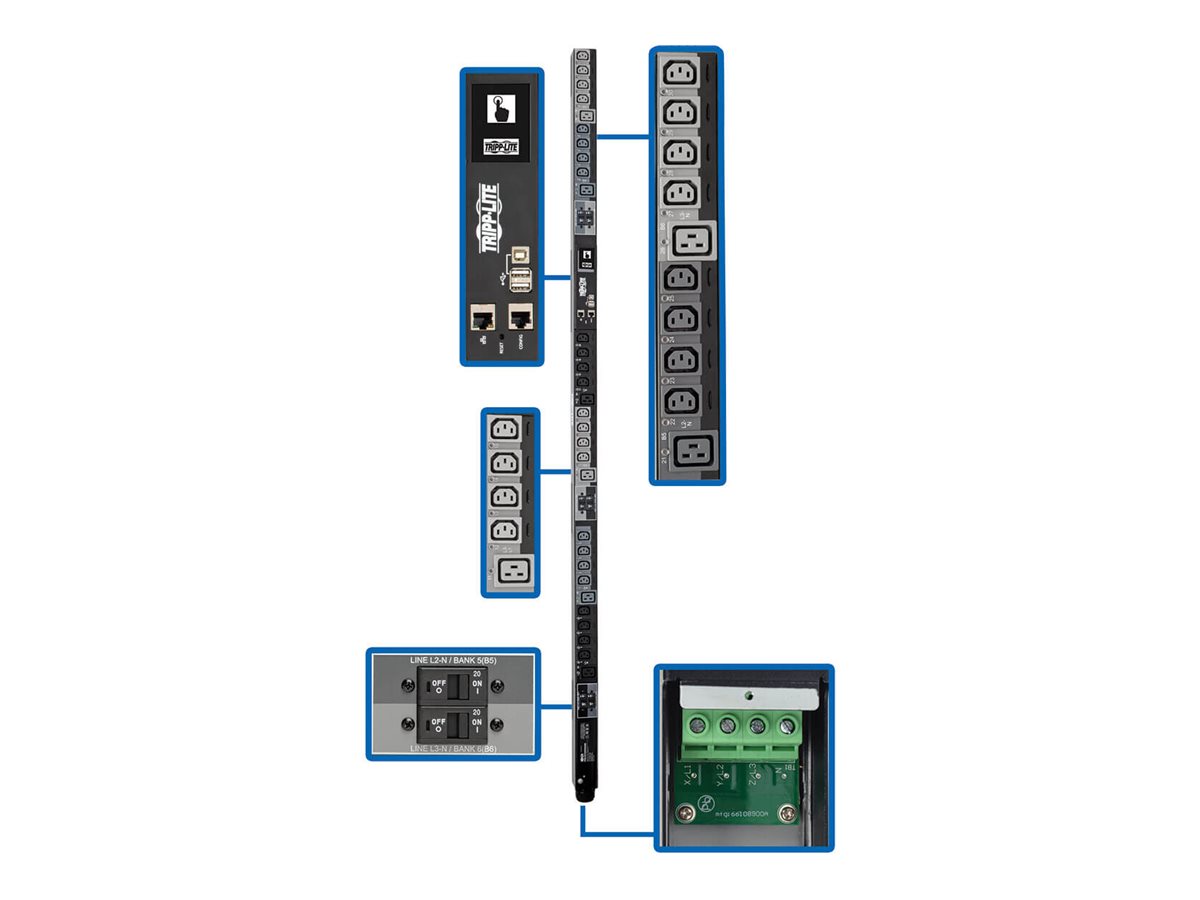

Tripp Lite 28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA
MSRP$2,798.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Tripp Lite 28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA
- Power distribution unit (rack-mountable)
- 40 A
- AC 380/400 V
- 28.8 kW
- 3-phase
- Ethernet 10/100, USB
- input: hardwire
- output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
- 0U
- 1.83 m
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,798.00 |
| Mfr Part #: | PDU3XEVSRHWB |
| SHI Part #: | 34921458 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Tripp Lite 28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA - Power distribution unit (rack-mountable) - 40 A - AC 380/400 V - 28.8 kW - 3-phase - Ethernet 10/100, USB - input: hardwire - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 1.83 m - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $2,798.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Weight | 6.12 kg |
| Dimensions & Weight / Width | 5.51 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Voltage Required | AC 380/400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Weight | 6.12 kg |
| Width | 5.51 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 192.8 cm |
| Shipping Height | 17.5 cm |
| Shipping Weight | 8.3 kg |
| Shipping Width | 24.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 1.83 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, NOM, RoHS, EN 60950-1, UL 60950-1:2007, IEC 60950-1:2005 + A1:2009, CAN/CSA-C22.2 No. 60950-1-07+A1:2011 |
| Features | LED indicator, vertical orientation, voltage monitoring, current meter, overload protection, digital power meter, email alerts support, firmware upgradable, touch screen LCD display, energy meter |
| Included Accessories | 30 plug-lock insert sleeves |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Input Voltage | AC 380/400 V |
| Input Wiring | 3-phase |
| Max Electric Current | 40 A |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Power Capacity | 28.8 kW |
| Power Output Connectors Details |
|
