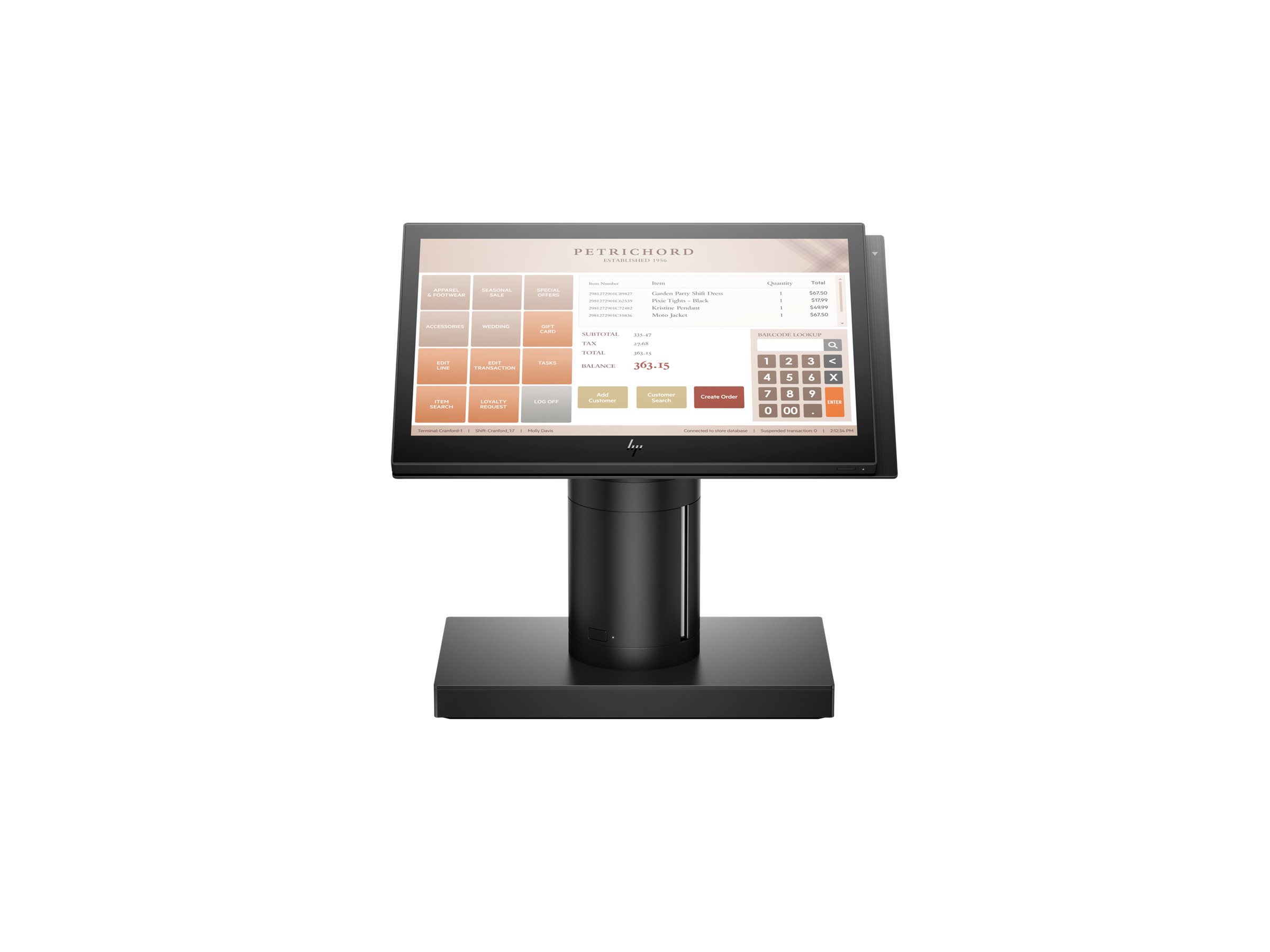

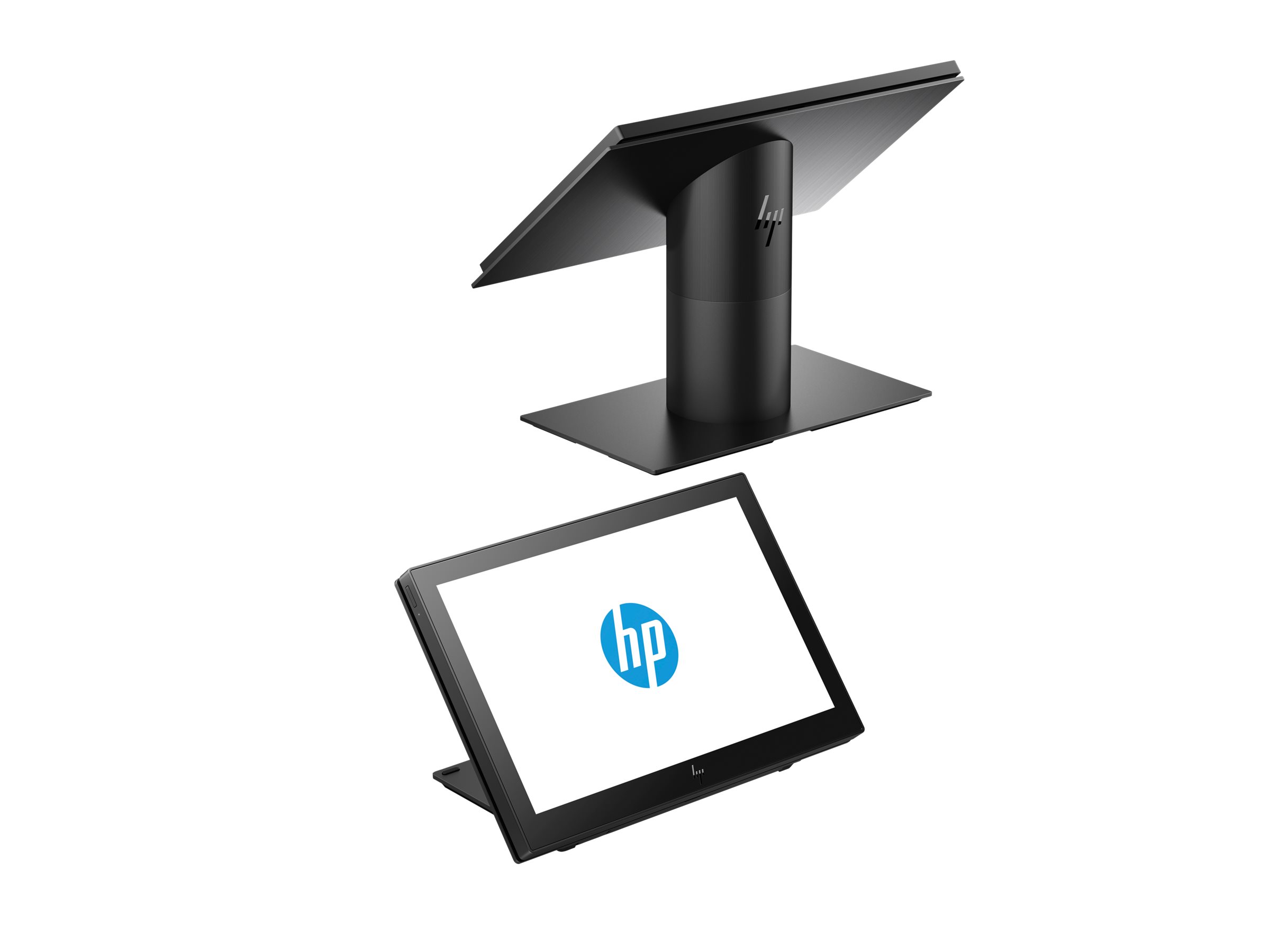

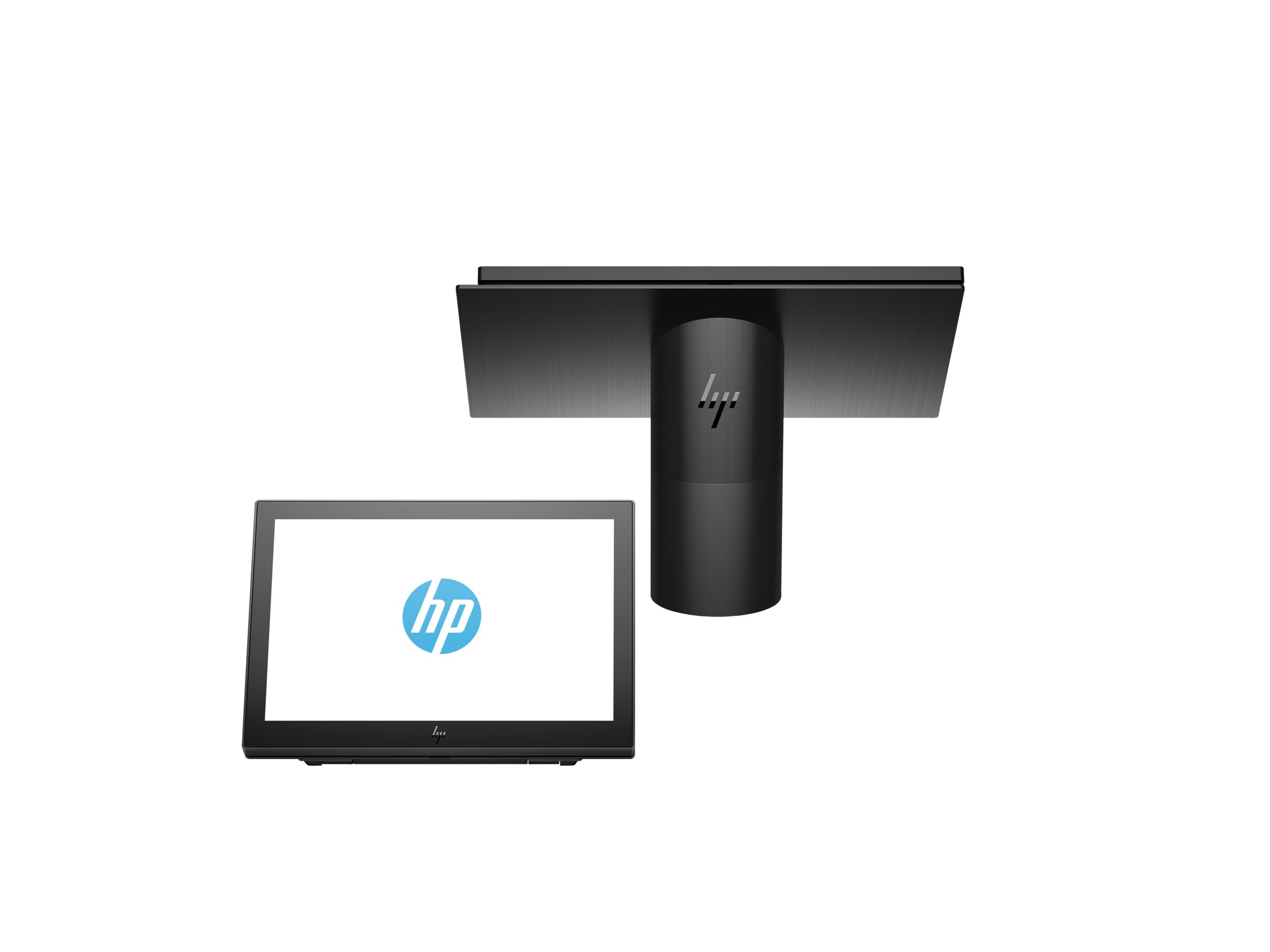

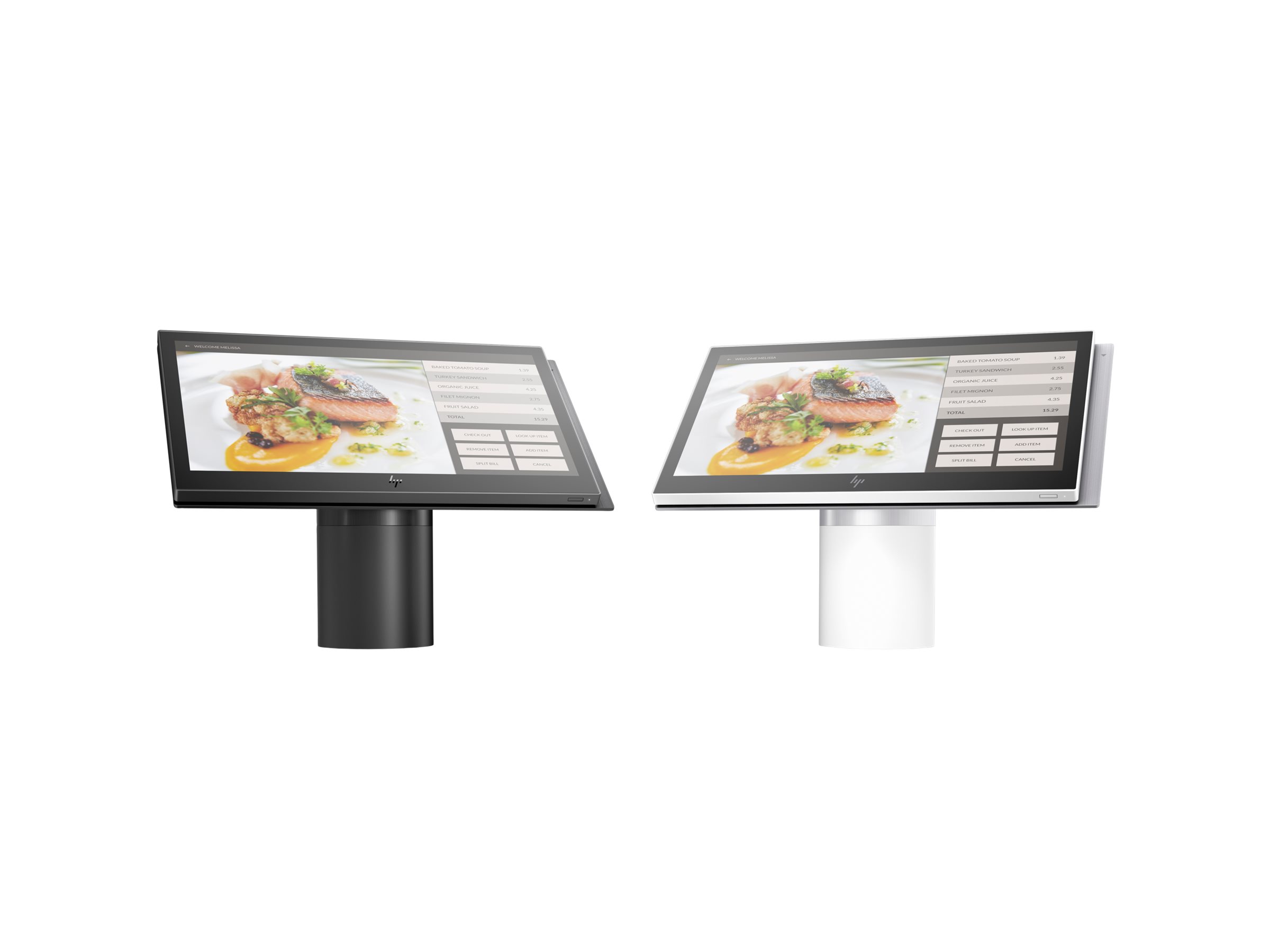

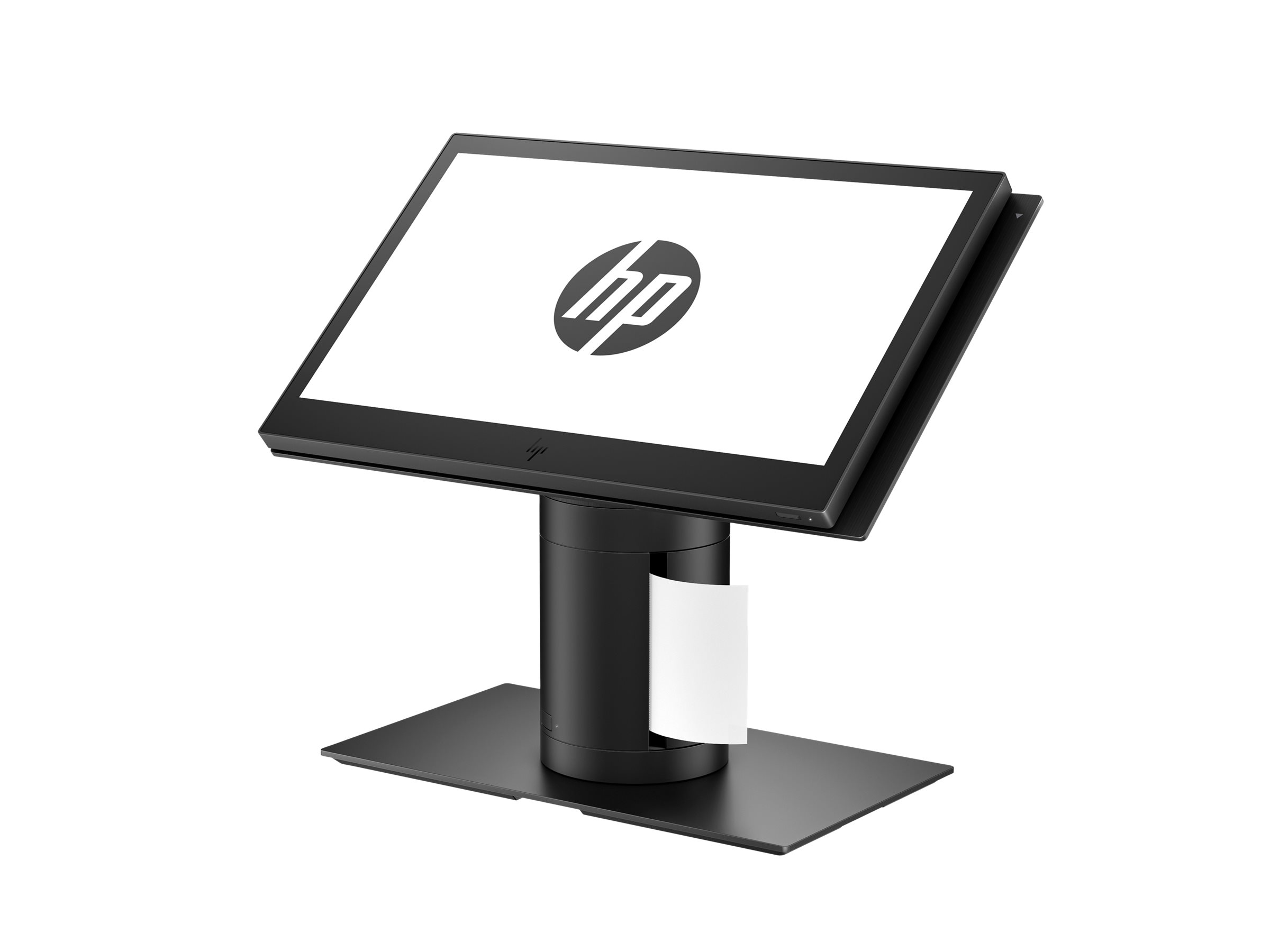

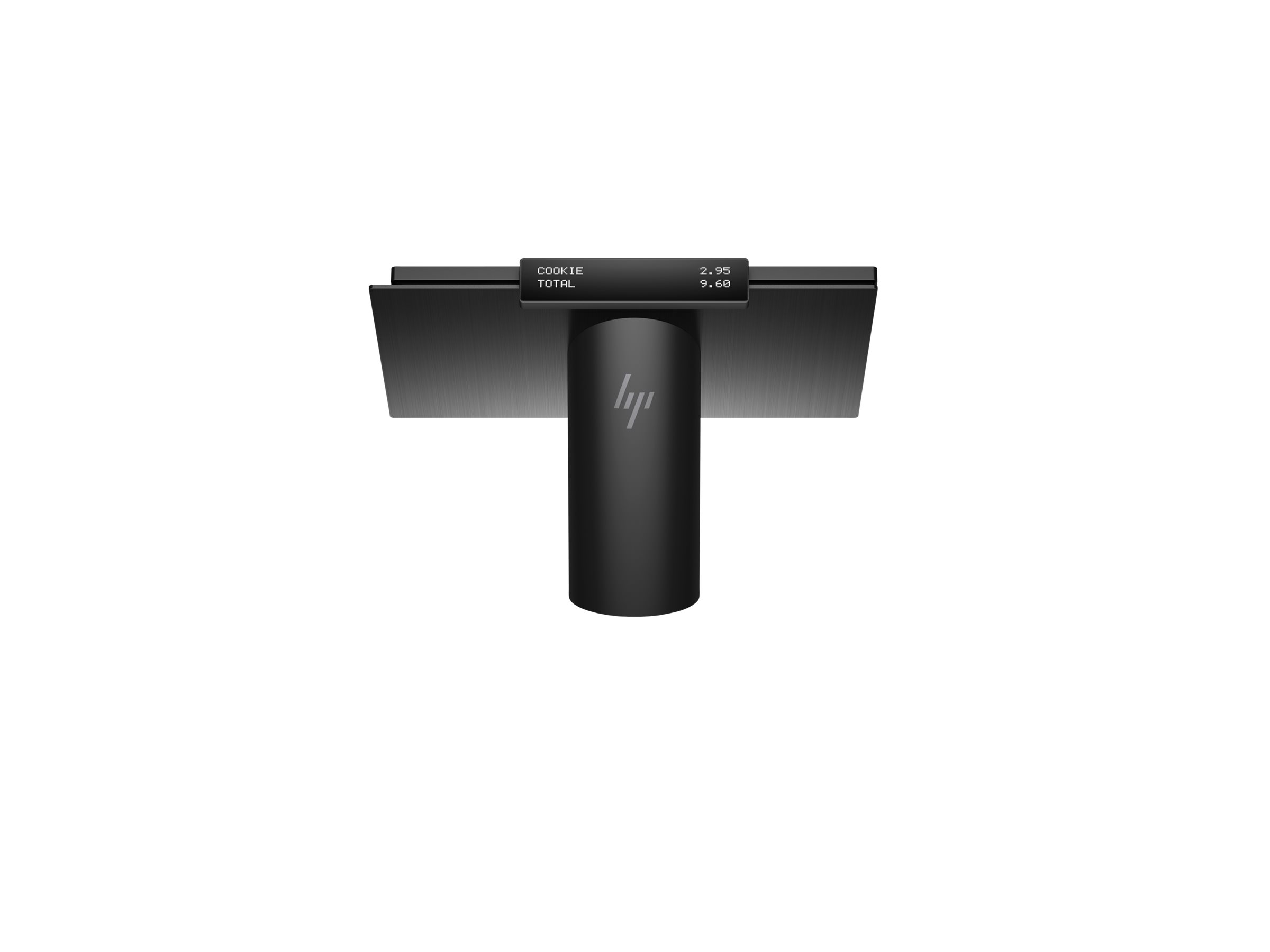

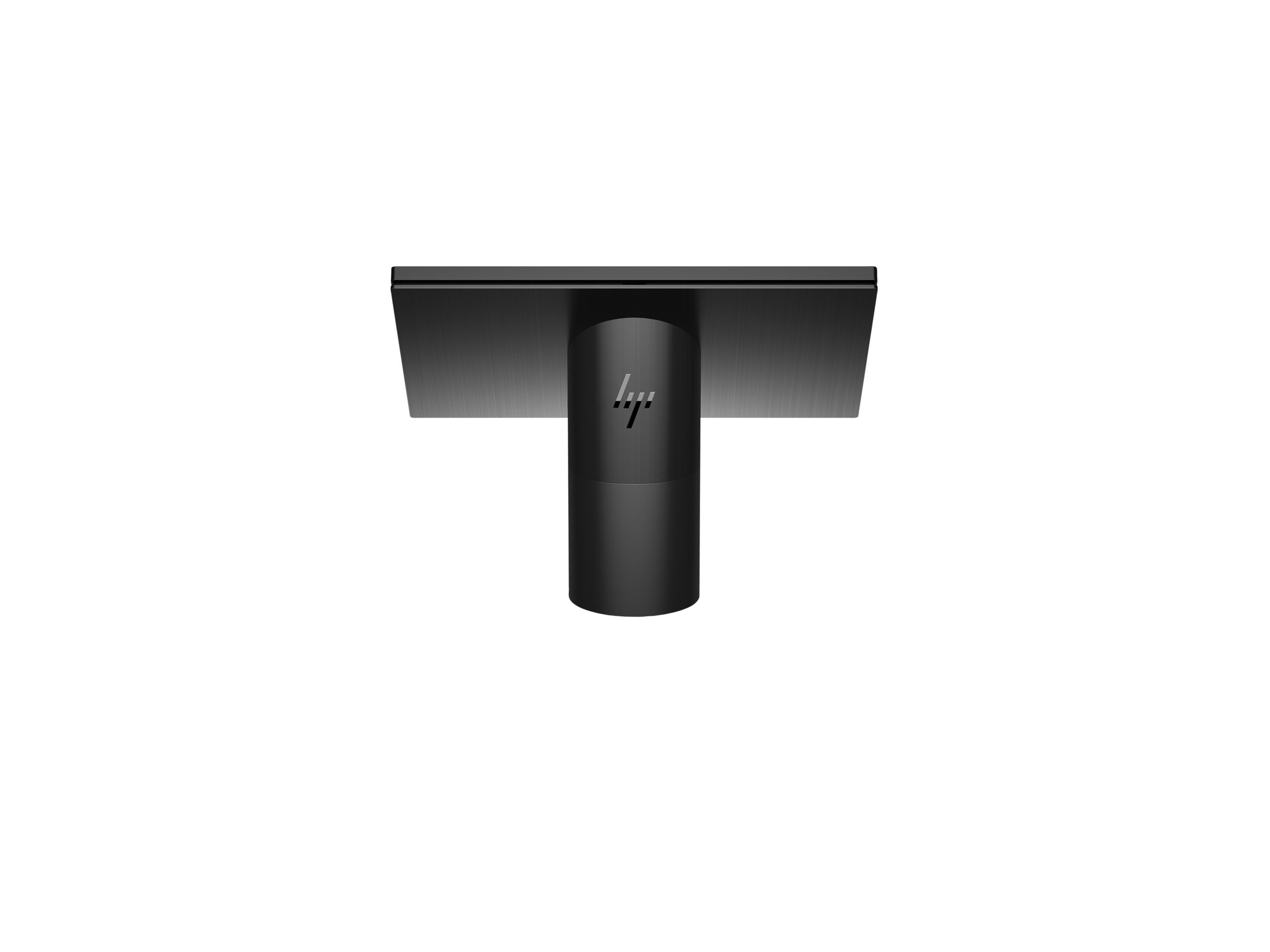

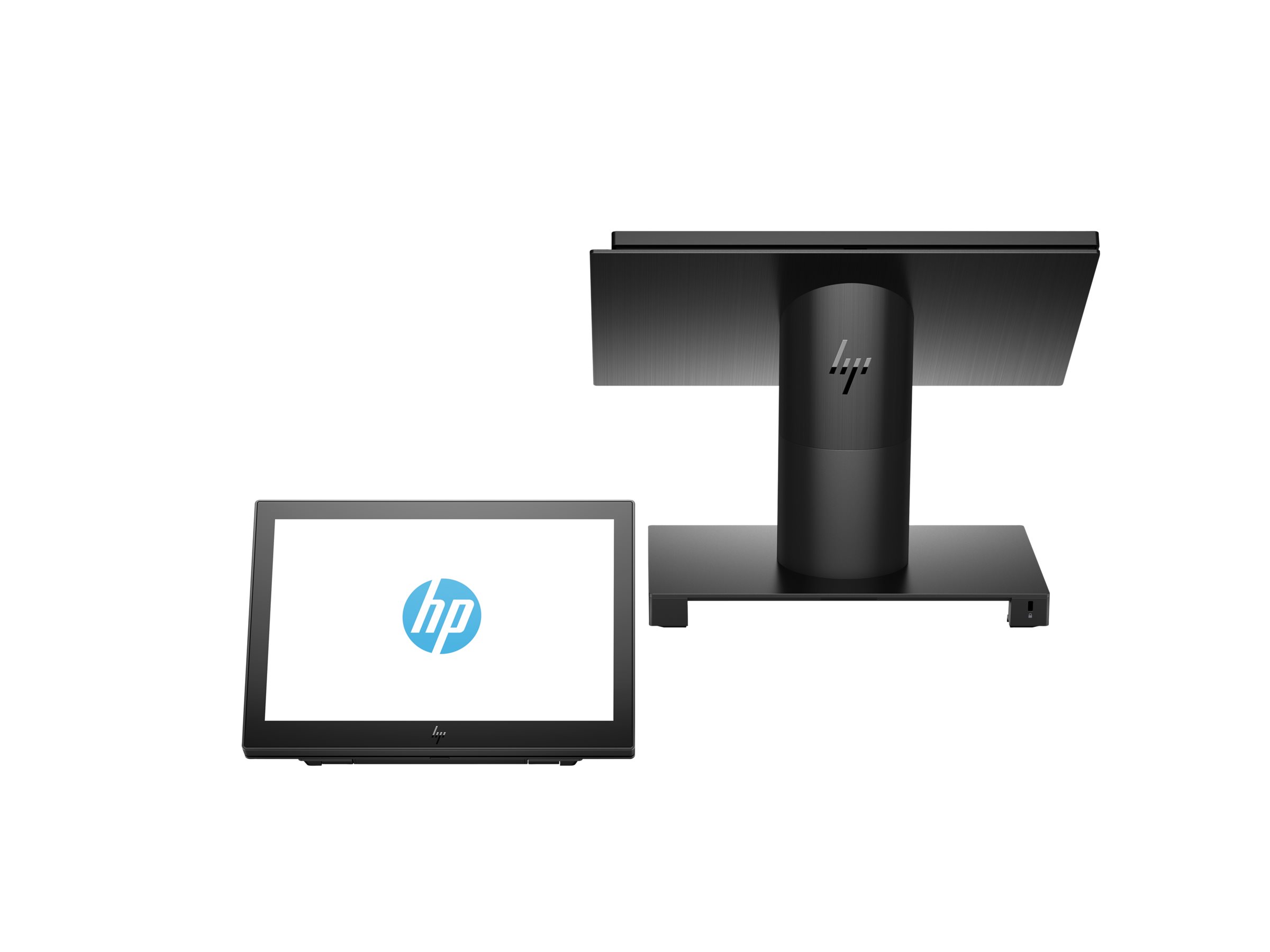

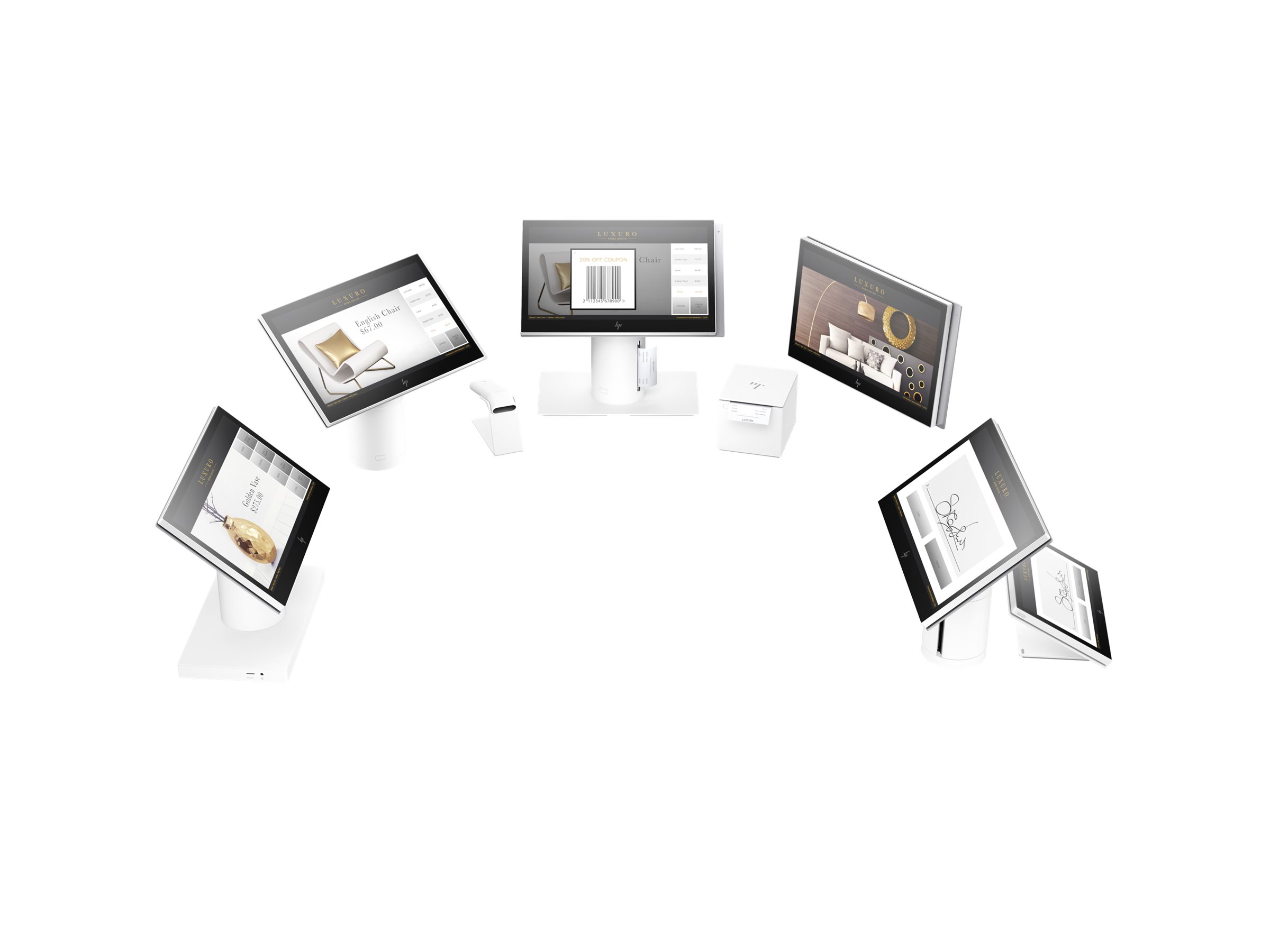

HP Engage One 145 - All-in-one
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HP Engage One 145 - All-in-one
- 1 x Core i5 7300U / 2.6 GHz
- RAM 8 GB
- SSD 256 GB
- TLC
- HD Graphics 620
- GigE
- Win 10 IoT Enterprise 2016 LTSB 64-bit
- monitor: LED 14" 1920 x 1080 (Full HD) touchscreen
| Additional Details | |
|---|---|
| Mfr Part #: | 3TP88UA#ABA |
| SHI Part #: | 34822592 |
| Category: | Point of sale (POS) terminals |
| UNSPSC: | 43211505 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Point of sale (POS) terminals |
| Description | HP Engage One 145 - All-in-one - 1 x Core i5 7300U / 2.6 GHz - RAM 8 GB - SSD 256 GB - TLC - HD Graphics 620 - GigE - Win 10 IoT Enterprise 2016 LTSB 64-bit - monitor: LED 14" 1920 x 1080 (Full HD) touchscreen |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211505 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 21.64 cm |
| Dimensions & Weight / Height | 1.76 cm |
| Dimensions & Weight / Weight | 1.38 kg |
| Dimensions & Weight / Width | 33.62 cm |
| Display / Diagonal Size | 14 in |
| Display / Diagonal Size (metric) | 35.56 cm |
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 256 GB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 2016 LTSB 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.6 GHz |
| Processor / Generation | 7 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | I5-7300U |
| Processor / Type | Core i5 |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Specification Compliance | PC4-19200 |
| RAM / Memory Speed | 2133 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Point of sale terminal |
| Video Output / Graphics Processor | Intel HD Graphics 620 |
| Video Output / HDCP compatible | Yes |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Max Sampling Rate | 192 kHz |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 3 MB |
| Installed Size | 3 MB |
| Card Reader | |
| Supported Flash Memory Cards | microSD |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 21.64 cm |
| Dimensions & Weight Details |
|
| Height | 1.76 cm |
| Weight | 1.38 kg |
| Width | 33.62 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Image Color Disclaimer | The displayed product image may be a different color |
| Localization | Language: English / region: United States |
| Product Form Factor | All-in-one - with rotate/tilt stand |
| Type | Point of sale terminal |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 620 Dynamic Video Memory Technology |
| HDCP Compatible | Yes |
| Max Monitors Supported | 3 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | Triple-level cell (TLC) |
| Interface Type | SATA 6Gb/s |
| Type | SSD - M.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | IEC 60601-1-2 |
| Included Accessories | HP Retail Integrated Dual-Head MSR, HP Engage Advanced I/O Connectivity Base |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm |
| Monitor | |
| Diagonal Size | 14" |
| Horizontal Viewing Angle | 178 |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 500 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | Anti-glare, Projected Capacitive Touch (PCT) technology |
| Monitor Type | LED |
| Native Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 0.161 mm |
| Response Time | 25 ms |
| Touchscreen | Yes (multi-touch) |
| Vertical Viewing Angle | 178 |
| Widescreen Display | Yes |
| Networking | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, DASH 1.1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8153 |
| Features | Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), Intel Active Management Technology (AMT) 11, PXE 2.1 support |
| Remote Management Protocol | SNMP |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2016 LTSB 64-bit Edition English |
| Software | HP Support Assistant, HP Device Guard, HP Credential Guard, HP BIOSphere with Sure Start Generation 3.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 89% |
| Power Factor Correction | Yes (active) |
| Power Provided | 180 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 2.6 GHz |
| CPU | Intel Core i5 (7th Gen) 7300U |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | Dual-Core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 2133 MHz |
| Features | Unbuffered |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Memory Specification Compliance | PC4-19200 |
| Rated Memory Speed | 2400 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| Carbon Footprint | 270 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 4 |
| Logistics (kg CO2e) | 3 |
| Manufacturing (kg CO2e) | 159 |
| Total Carbon w/o Use Phase (kg CO2e) | 270 |
| Use (kg CO2e) | 104 |
