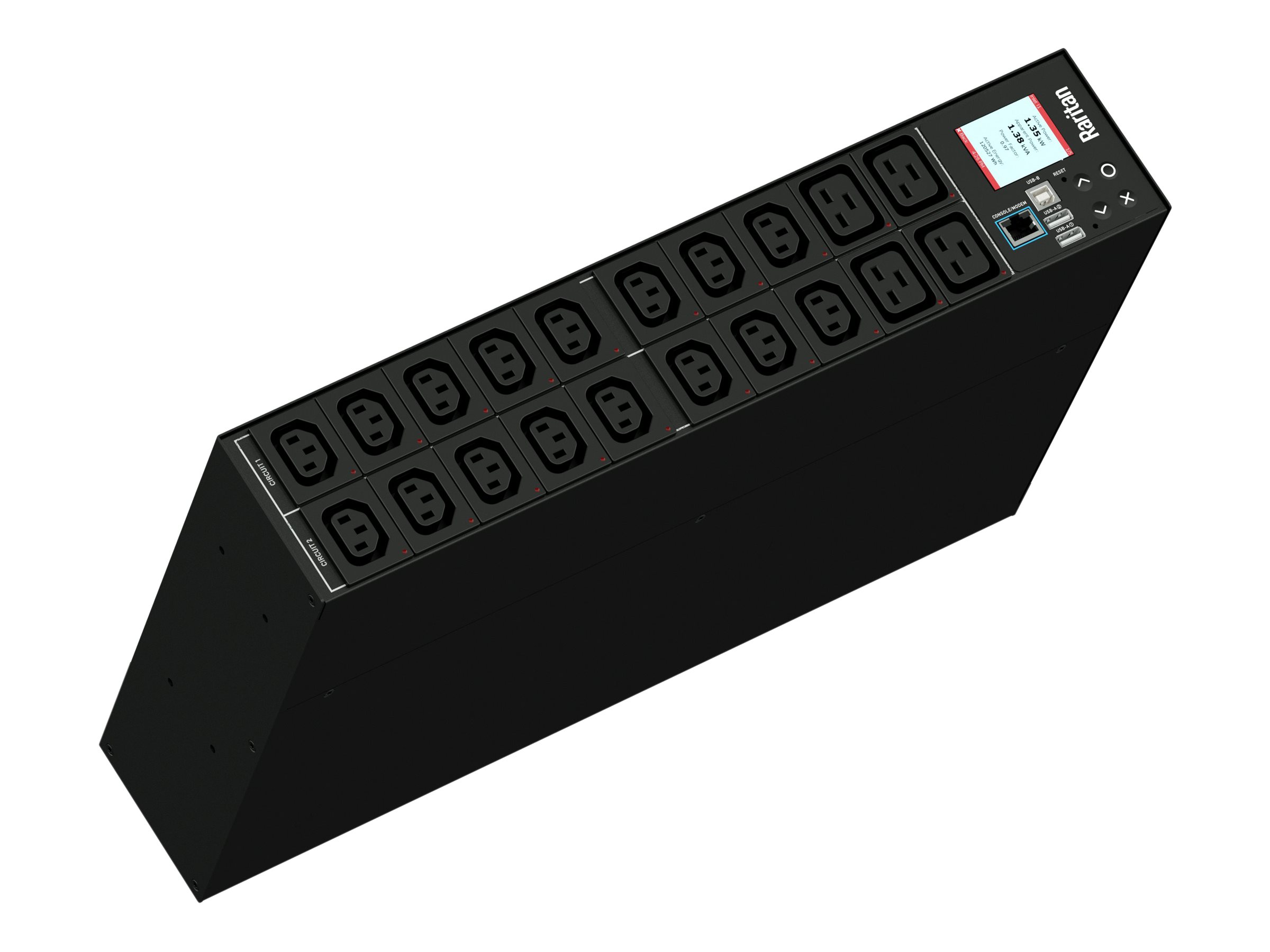

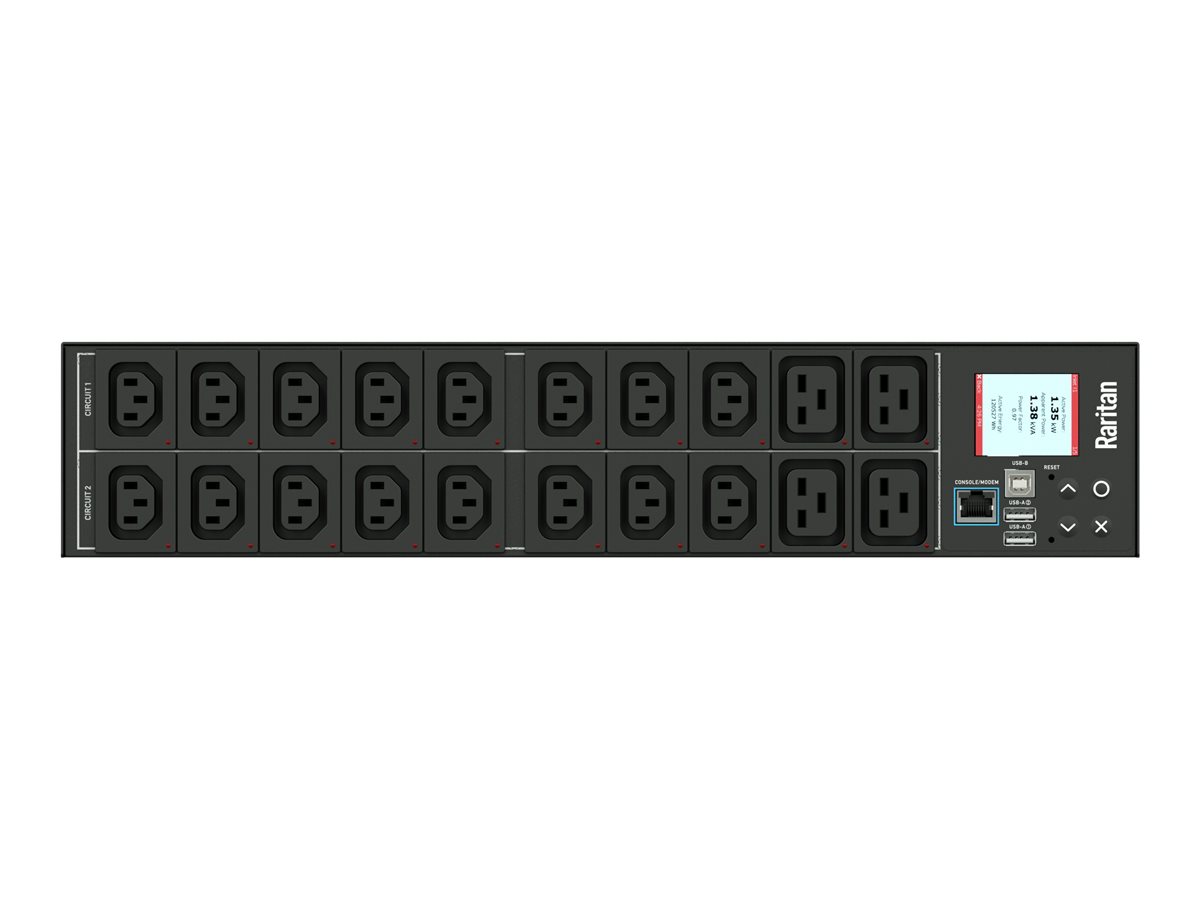

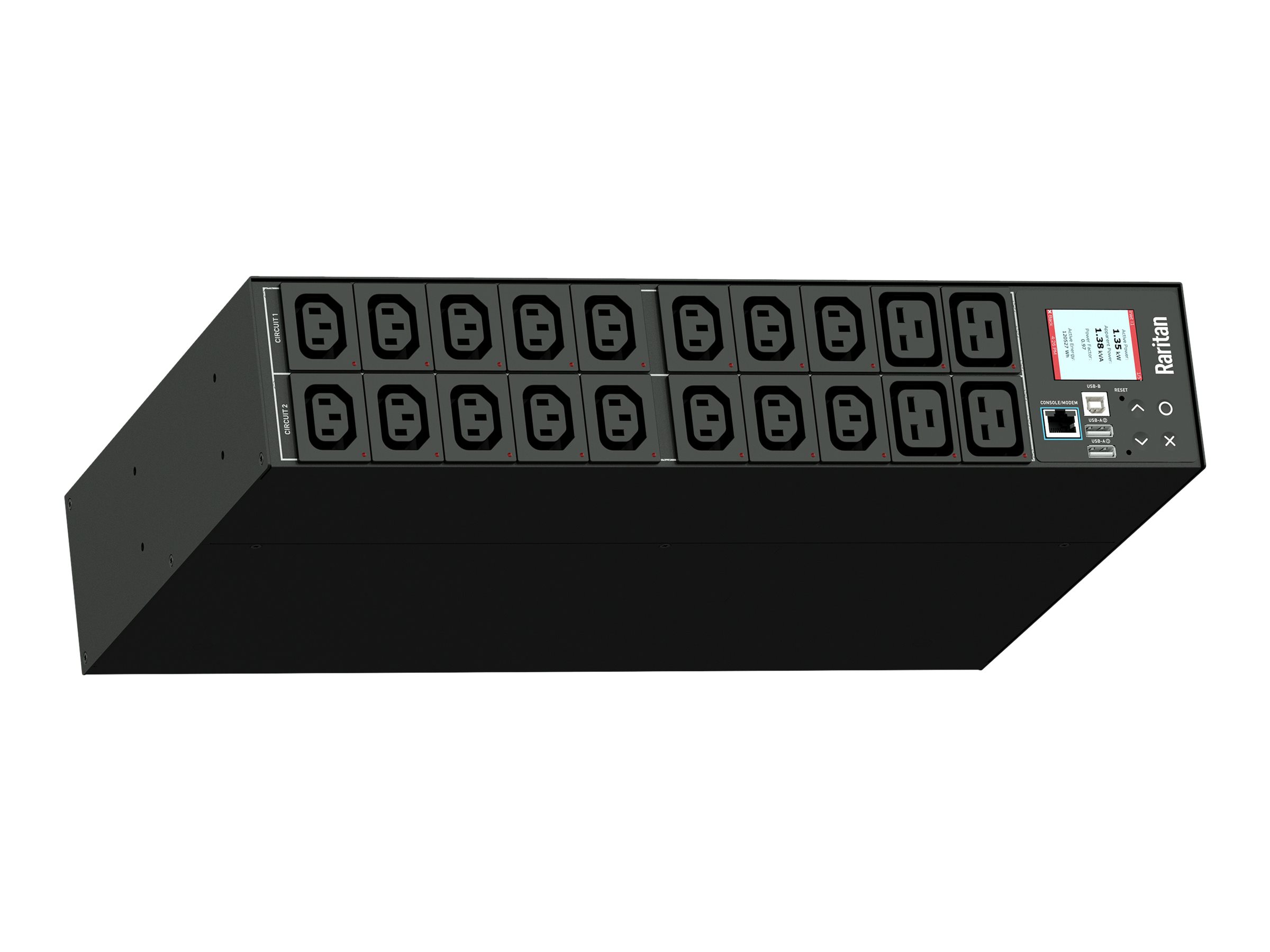

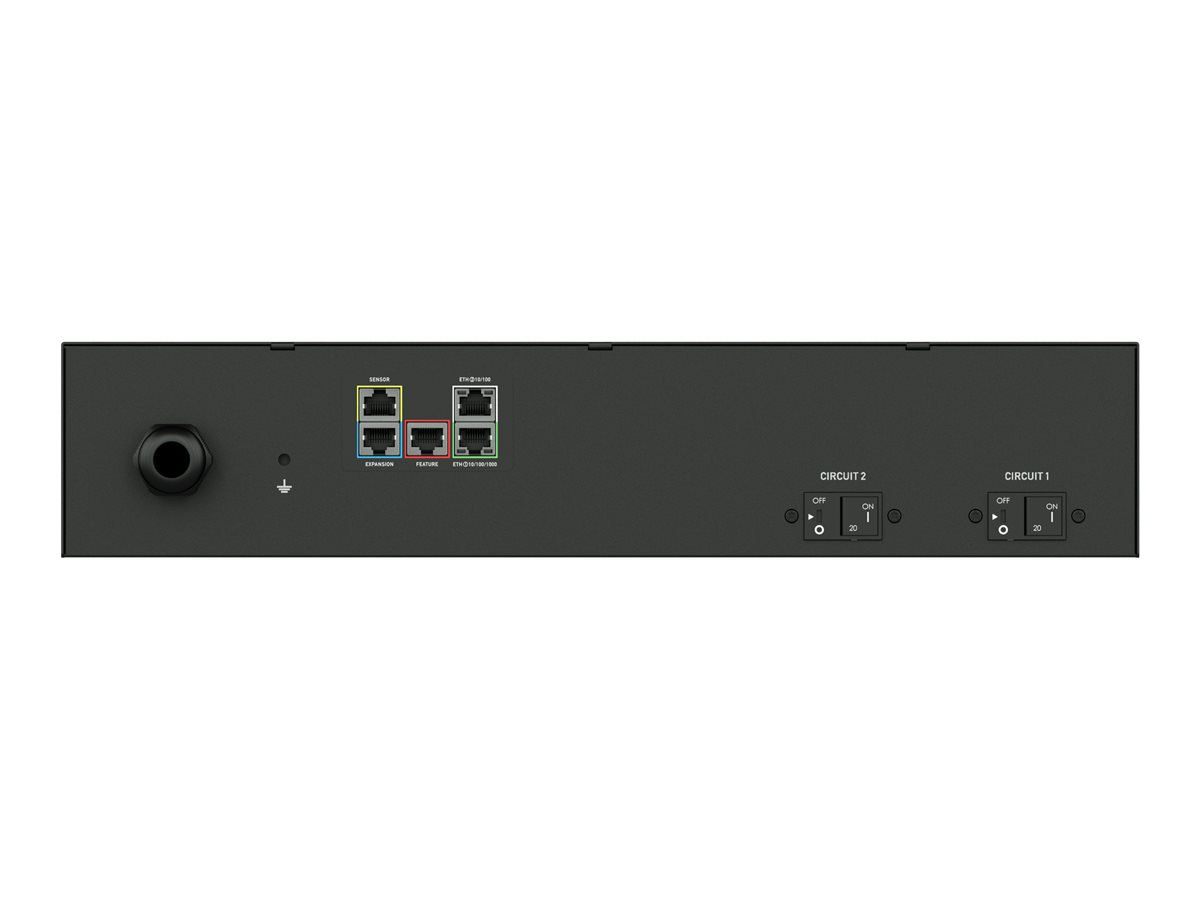

Raritan PX3-5469NR-A6
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5469NR-A6
- Power distribution unit (rack-mountable)
- AC 230 V
- 7400 VA
- 1-phase
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: hardwire 3-wire (1PH + N + G)
- output connectors: 20 (4 x IEC 60320 C19, 16 x IEC 60320 C13)
- 2U
- 5 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5469NR-A6 |
| SHI Part #: | 34680323 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5469NR-A6 - Power distribution unit (rack-mountable) - AC 230 V - 7400 VA - 1-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: hardwire 3-wire (1PH + N + G) - output connectors: 20 (4 x IEC 60320 C19, 16 x IEC 60320 C13) - 2U - 5 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,615.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.3 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Power Capacity (VA) | 7400 VA |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 29.3 cm |
| Height | 8.8 cm |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 55.2 cm |
| Shipping Height | 28.4 cm |
| Shipping Width | 56 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 5 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 5 m |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A |
| Features | Horizontal orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
| Power Output Connectors Details |
|
