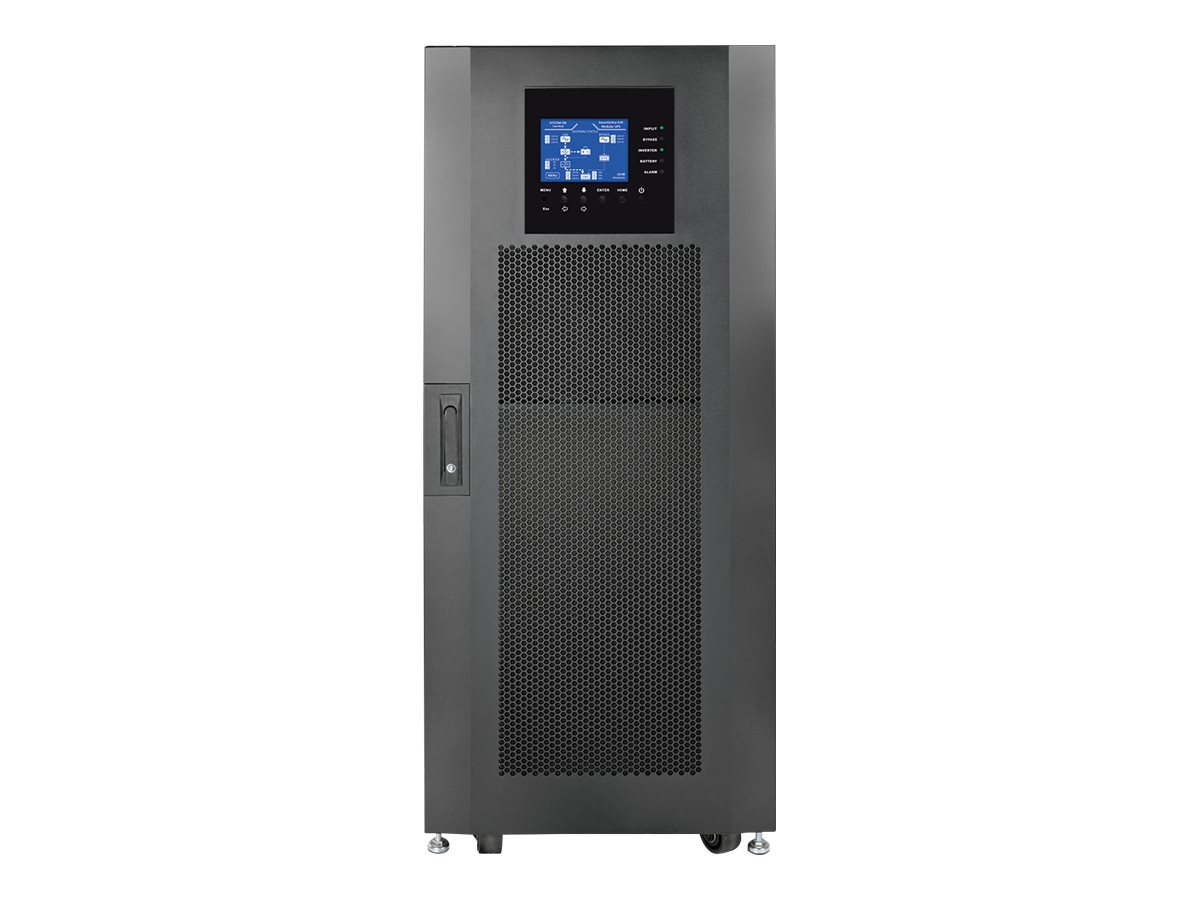

Tripp Lite SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module
MSRP$36,115.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Tripp Lite SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module
- UPS
- AC 120/127/208/220 V
- 18 kW
- 20000 VA
- 3-phase WYE (star)
- RS-232
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $36,115.00 |
| Mfr Part #: | SV20KS1P1B |
| SHI Part #: | 34574963 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Warranties
- Premium
- Extended service agreement
- parts and labor
- 1 year
- on-site
- 24x7
MSRP $9,630.00
$6,357.00
- Extended service agreement
- parts and labor (for 3-phase UPS including 1 extra battery)
- 1 year
- on-site
- 24x7
- for P/N: S3M20K3B, S3M20K-NIB, S3M30K, SV20KM1P0B, SV20KS1P0B, SV20KS1P2B, SV20KS1P3B
MSRP $8,820.00
$5,822.00
- Technical support
- preventive maintenance
- 1 year
- on-site
- after business hours/weekends
- for P/N: S3M20K3B, S3M20K-NIB, S3M30K, SV20KM1P0B, SV20KS1P0B, SV20KS1P2B, SV20KS1P3B
MSRP $8,460.00
$5,585.00
Cables
- Environmental module
- TAA Compliant
MSRP $299.00
$263.00
- Temperature sensor
- TAA Compliant
MSRP $219.00
$193.00
- Environmental module
- TAA Compliant
MSRP $232.00
$204.00
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Tripp Lite SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module - UPS - AC 120/127/208/220 V - 18 kW - 20000 VA - 3-phase WYE (star) - RS-232 |
| Manufacturer | Eaton |
| MSRP | $36,115.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 110 cm |
| Dimensions & Weight / Height | 147.5 cm |
| Dimensions & Weight / Weight | 408.69 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | UPS |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 20000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 120/127/208/220 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |

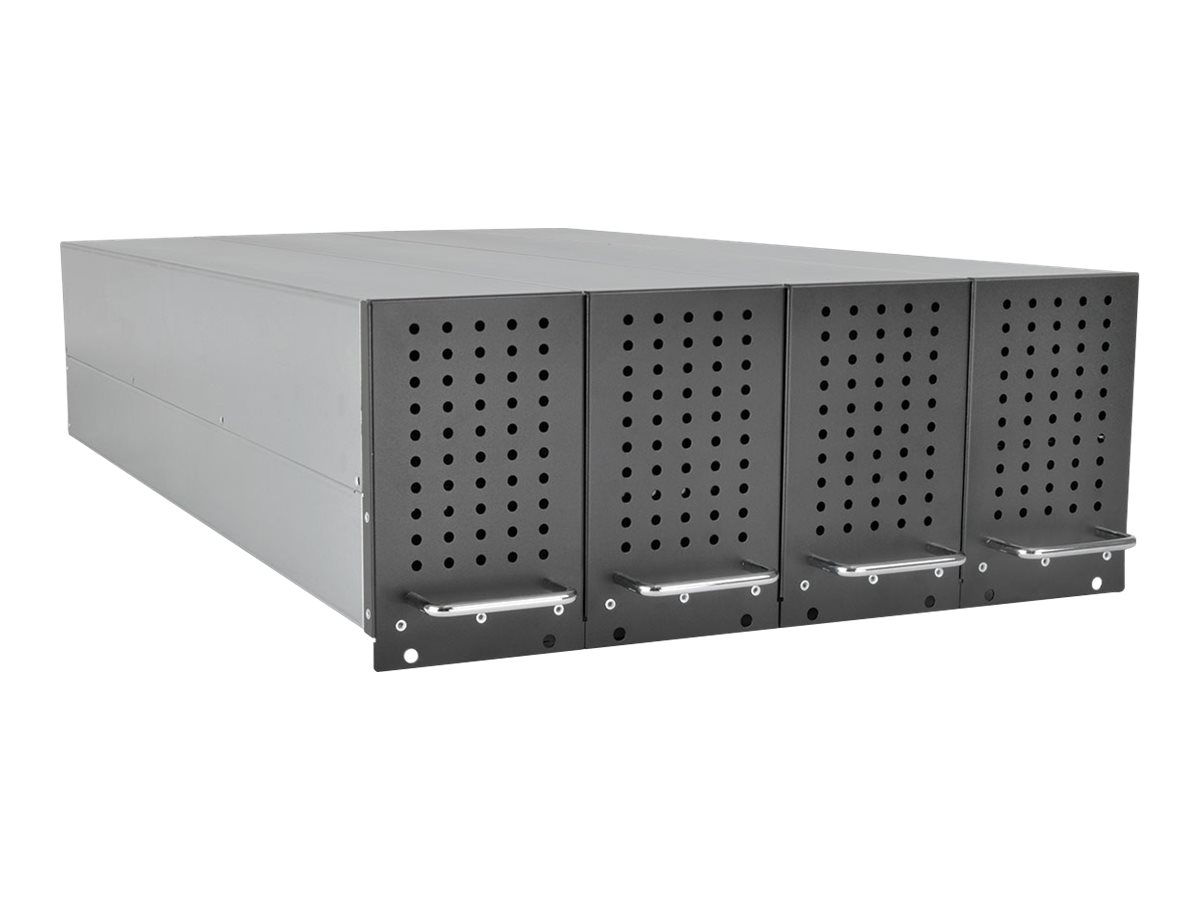

| Battery | |
| Quantity | 1 |
| Run Time (Up To) |
|
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 110 cm |
| Height | 147.5 cm |
| Weight | 408.69 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 122 cm |
| Shipping Height | 164.6 cm |
| Shipping Weight | 502 kg |
| Shipping Width | 75 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 73 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, UL 1778 5th edition, CSA C22.2 No. 107.3.14, FCC Part 15 A, CSA, NOM |

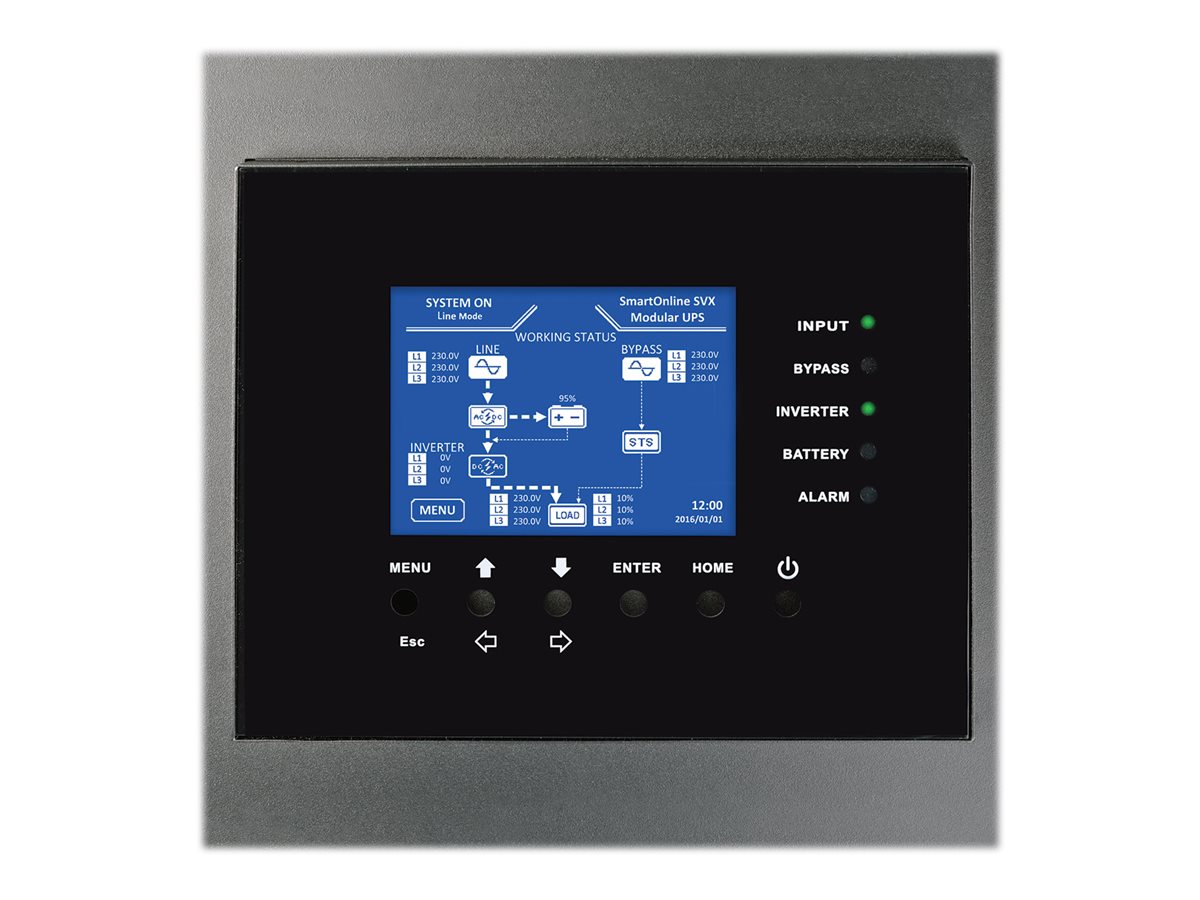

| Features | Overload protection, hot-swappable batteries, overvoltage protection, LCD display, audible alarm, LED indicators, cold-start function, cooling fan, DSP technology, IGBT rectifier, hot swappable PSU, undervoltage protection |
| Networking | |

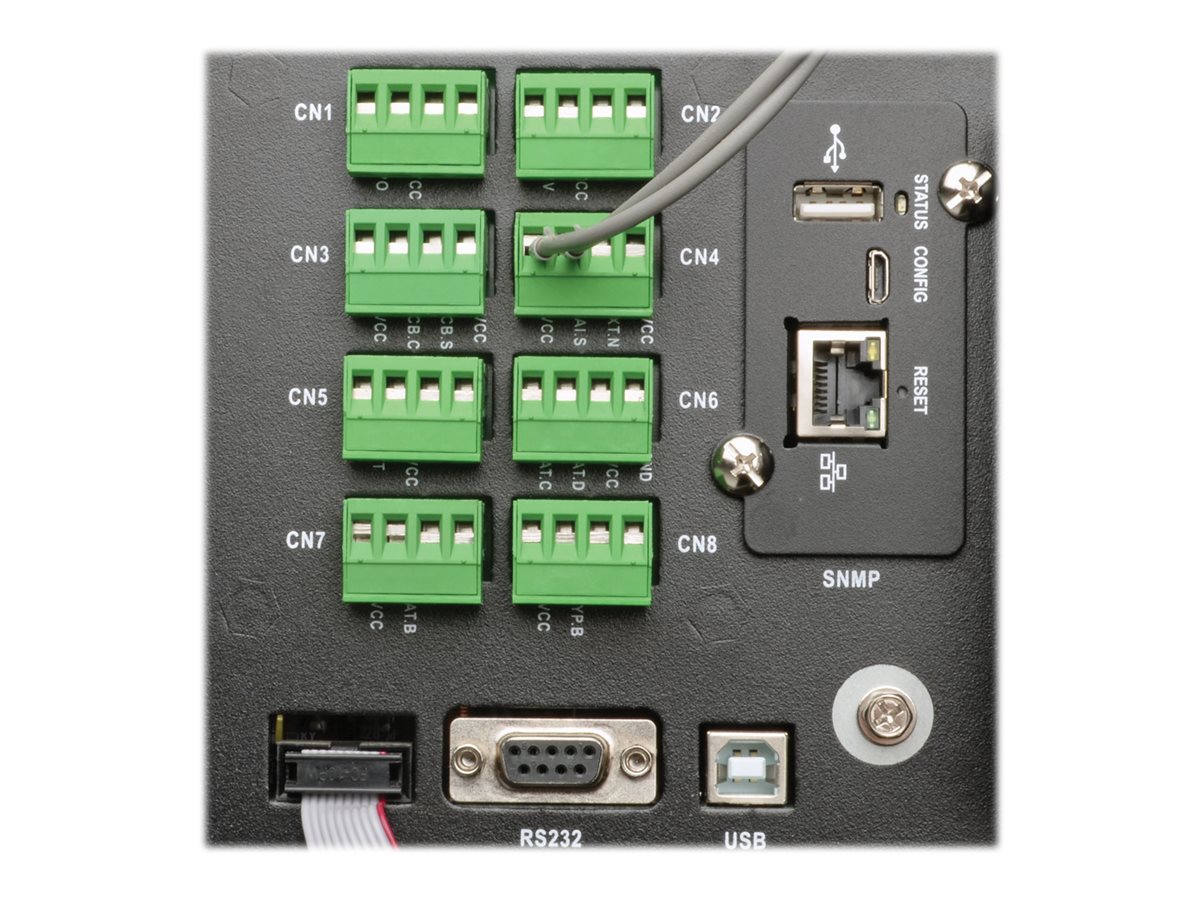

| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP, SSH, Telnet |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |

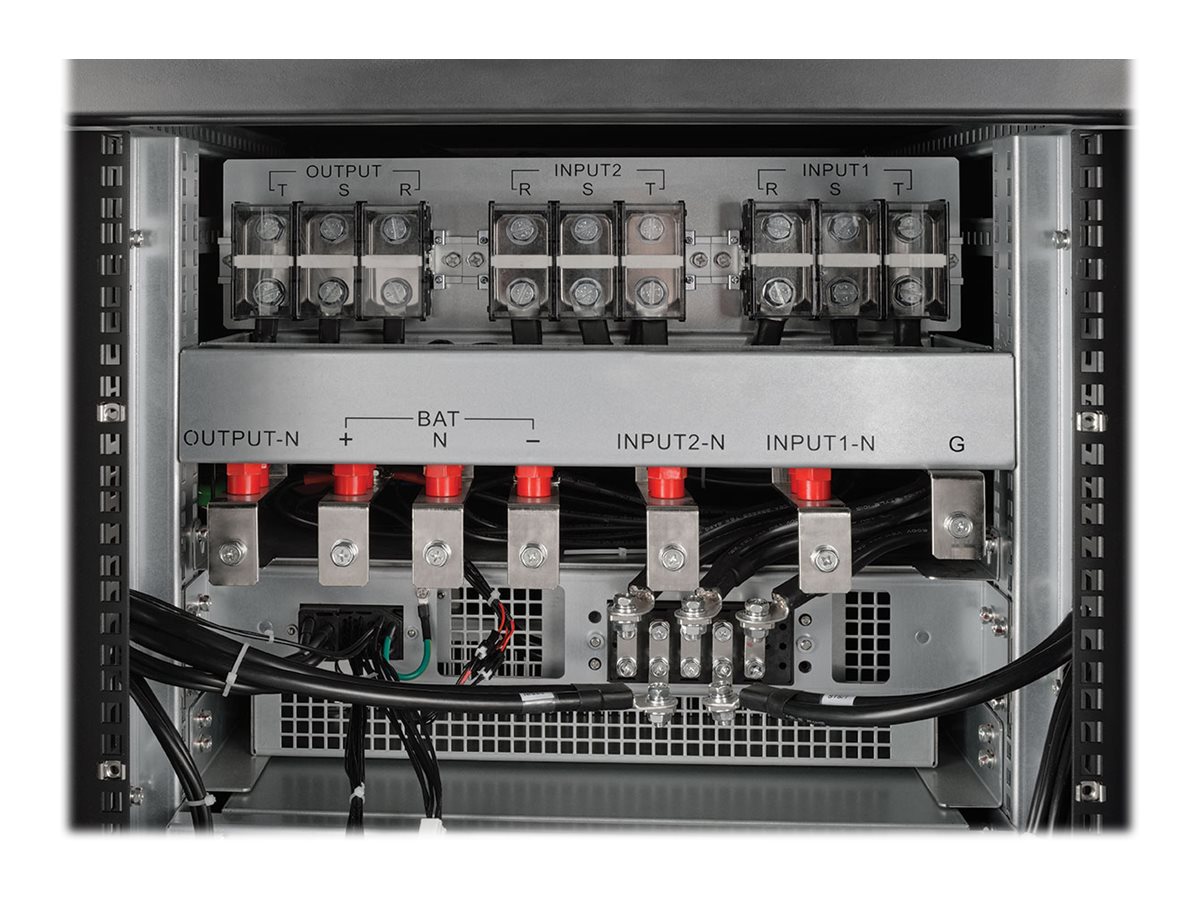

| Input Connectors | Hardwire |
| Input Voltage | AC 120/127/208/220 V |
| Input Wiring | 3-phase WYE (star) |
| Output Voltage | AC 120/127/208/220 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 18 kW / 20000 VA |
| Power Factor (PF) | 0.99 |
| Power Modules Qty | 1 |
| Power Output Connectors Details | Hardwire |
| Surge Energy Rating | 2496 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
