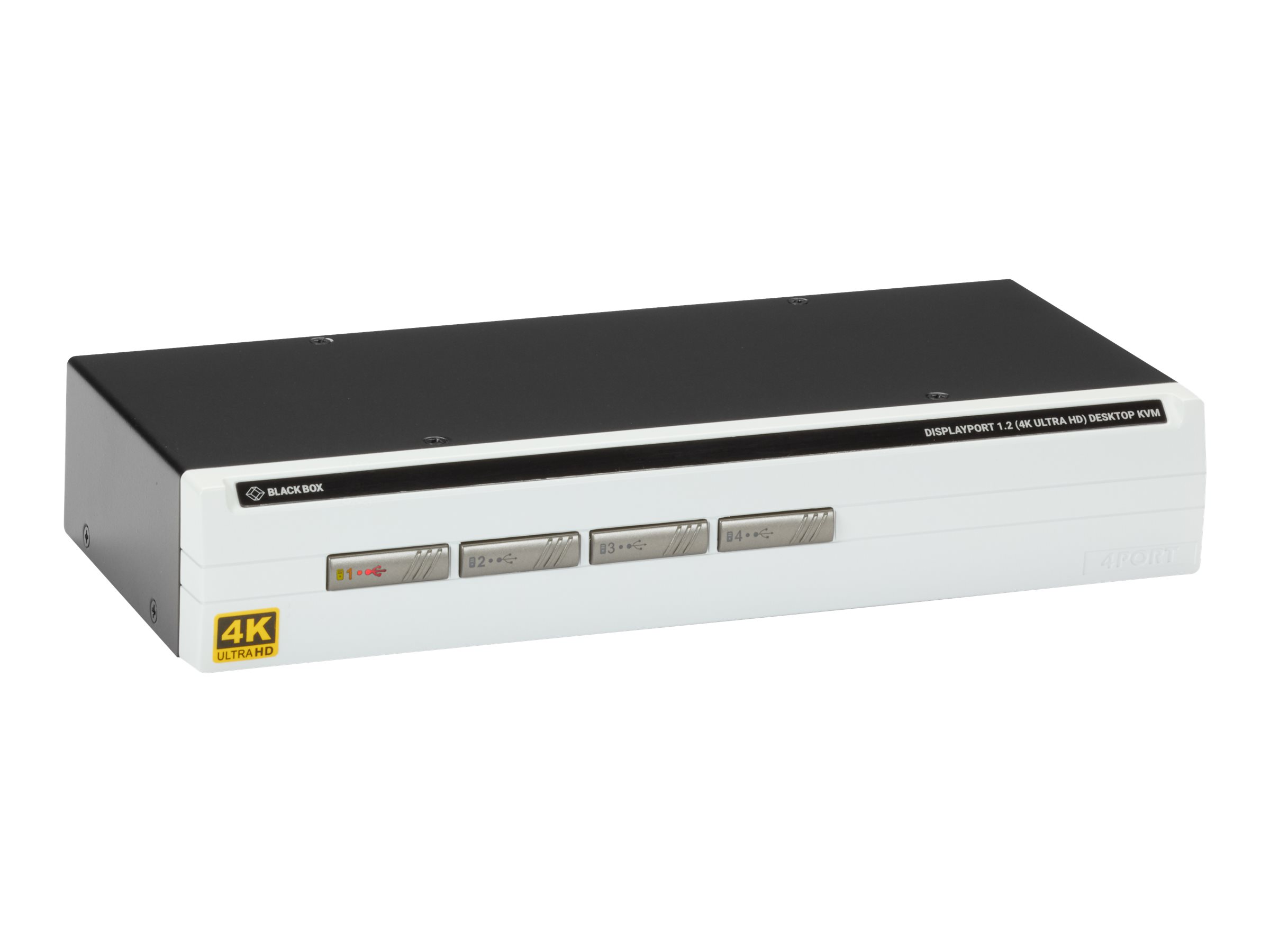

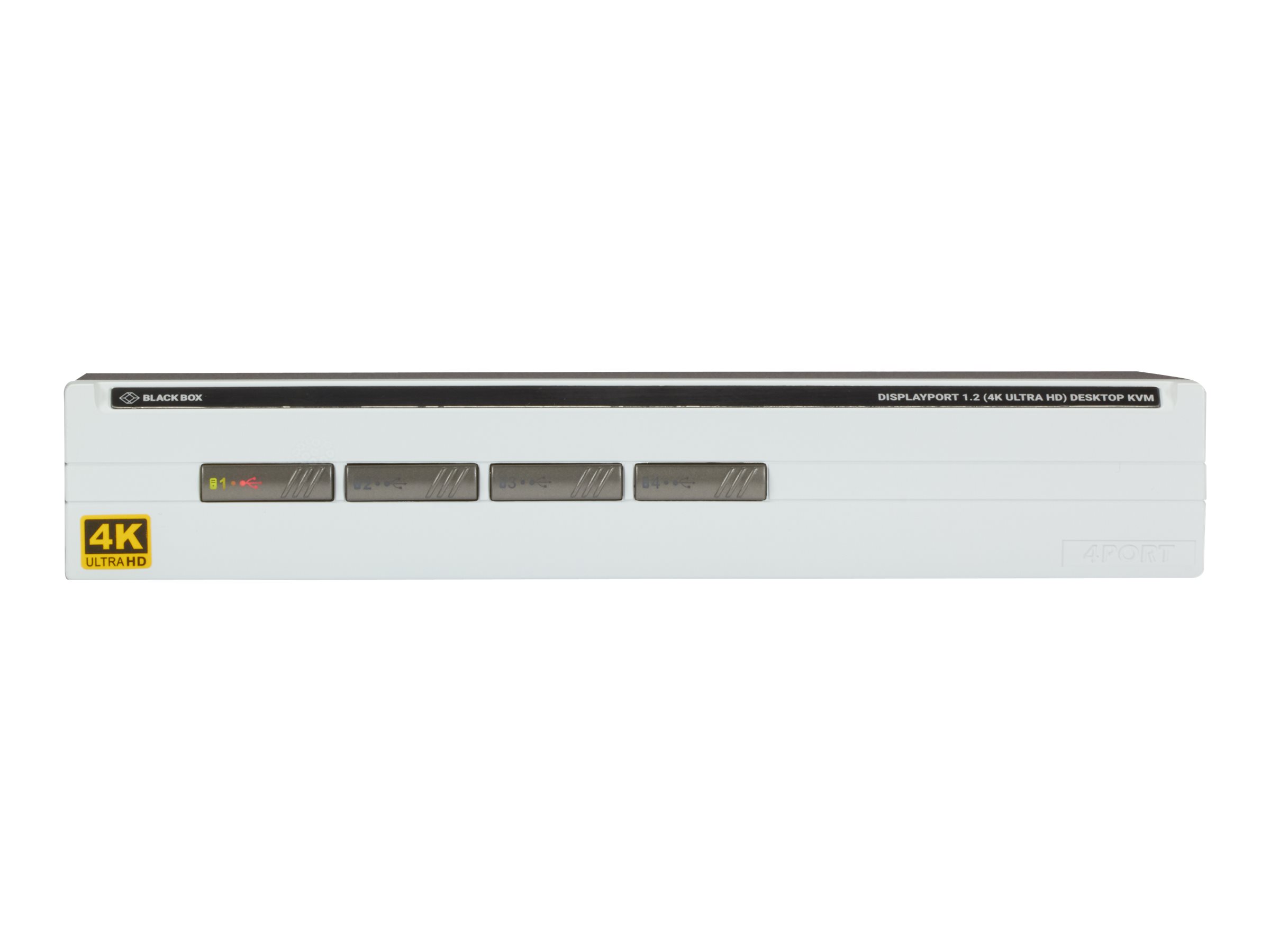

Black Box Desktop 4K60 DisplayPort KVM Switch Single-Head

Login for Price
Black Box Desktop 4K60 DisplayPort KVM Switch Single-Head
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • KVM / audio / USB switch
  • 4 x KVM / audio / USB
  • 1 local user
  • desktop
  • AC 100
Black Box Desktop 4K60 DisplayPort KVM Switch Single-Head
  • KVM / audio / USB switch
  • 4 x KVM / audio / USB
  • 1 local user
  • desktop
  • AC 100
  • 240 V
  • TAA Compliant
  Additional Details
Mfr Part #: KV6204A
SHI Part #: 34531135
Category: Peripheral switch boxes
UNSPSC: 43211604
Manufacturer: Black Box
Product Type: Hardware
General Information
CategoryPeripheral switch boxes
DescriptionBlack Box Desktop 4K60 DisplayPort KVM Switch Single-Head - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop - AC 100 - 240 V - TAA Compliant
ManufacturerBlack Box
UNSPSC43211604
Main Specifications
Dimensions & Weight / Depth11.7 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight1 kg
Dimensions & Weight / Width25.4 cm
Header / BrandBlack Box
Miscellaneous / Product Color
  • Black
  • White
Networking / Form FactorDesktop
Networking / Ports Qty4
Networking / TypeKVM / audio / USB switch
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Depth11.7 cm
Height4.5 cm
Weight1 kg
Width25.4 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Storage Temperature60 °C
Min Storage Temperature-20 °C

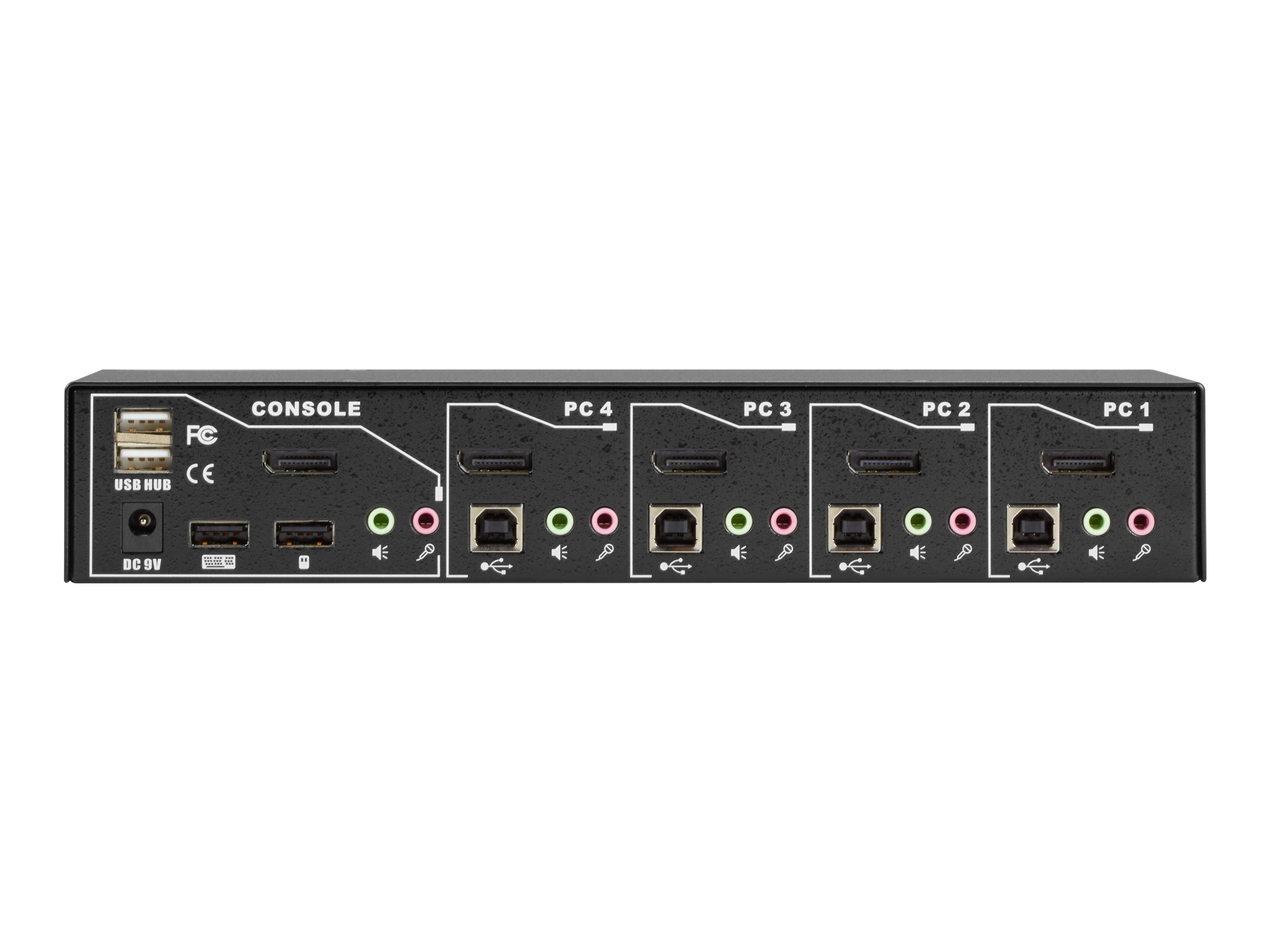

Expansion / Connectivity
Interfaces
  • 4 x DisplayPort input
  • 4 x USB Type B
  • 4 x audio / headphones mini-jack
  • 4 x audio / microphone mini-jack
  • 1 x DisplayPort output
  • 2 x USB 2.0 Type A
  • 2 x keyboard (USB) / mouse (USB) Type A
  • 1 x audio output mini-jack
  • 1 x microphone mini-jack
General
Built-in DevicesUSB 2.0 hub
Device TypeKVM / audio / USB switch - 4 ports
Enclosure TypeDesktop
FeaturesInput selection buttons, True Transparent USB Emulation Technology
Keyboard / Mouse InterfaceUSB
KVM Local Users Qty1 local user
Max Resolution3840 x 2160 @ 60 Hz
Ports4 x KVM / audio / USB
Status IndicatorsStatus
SubtypeDisplayPort
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsUL, TUV, RoHS, DDC, WEEE, EDID compatible, FCC Part 15 Class B, DisplayPort 1.2
TAA CompliantYes
Power
Power DeviceExternal power adapter
Voltage RequiredAC 100 - 240 V (50 - 60 Hz)
