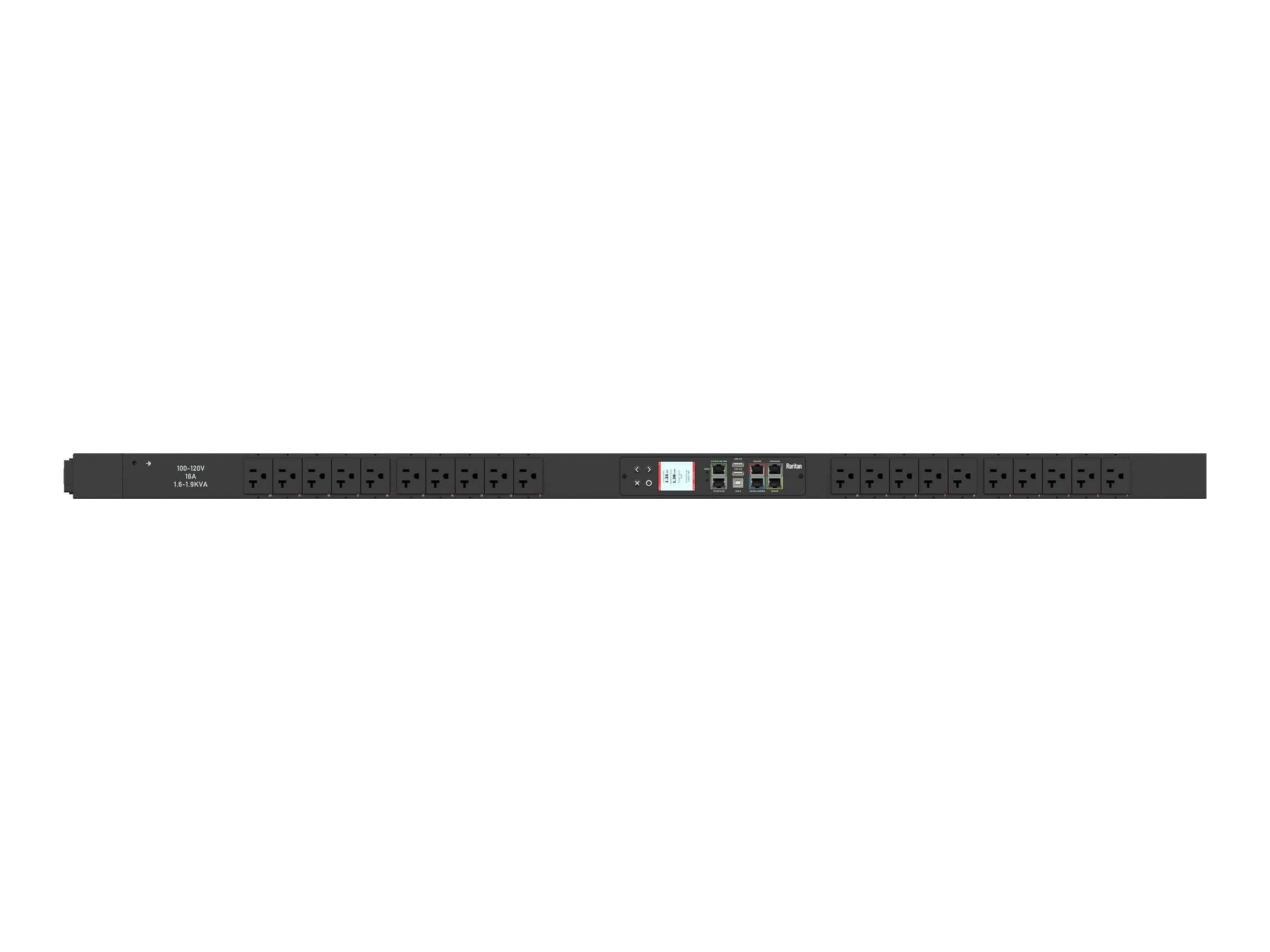

Raritan Dominion PX PX3-5404V
- - RS-232
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5404V |
| SHI Part #: | 34529977 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan Dominion PX PX3-5404V - - RS-232 |
| Manufacturer | Legrand |
| MSRP | $1,479.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 129.8 cm |
| Dimensions & Weight / Weight | 2.9 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Power Capacity (VA) | 1400 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 129.8 cm |
| Weight | 2.9 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 18.5 cm |
| Shipping Height | 140.8 cm |
| Shipping Weight | 5.8 kg |
| Shipping Width | 18.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug, remote outlet switching, metering per input line, metering per output receptacle, replaceable controller, ISO/IEC 62053-21 1% metering accuracy, bottom-bottom feed cord entry, environmental sensor ready |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase |
| Max Electric Current | 15 A |
| Output Voltage | AC 120 V |
| Power Capacity | 1400 VA |
| Power Capacity Details | 1.2 kVA at 100 V, 1.4 kVA at 120 V |
| Power Output Connectors Details | 20 x power NEMA 5-20R 12 A |
