Raritan PX3-4068YV-V2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

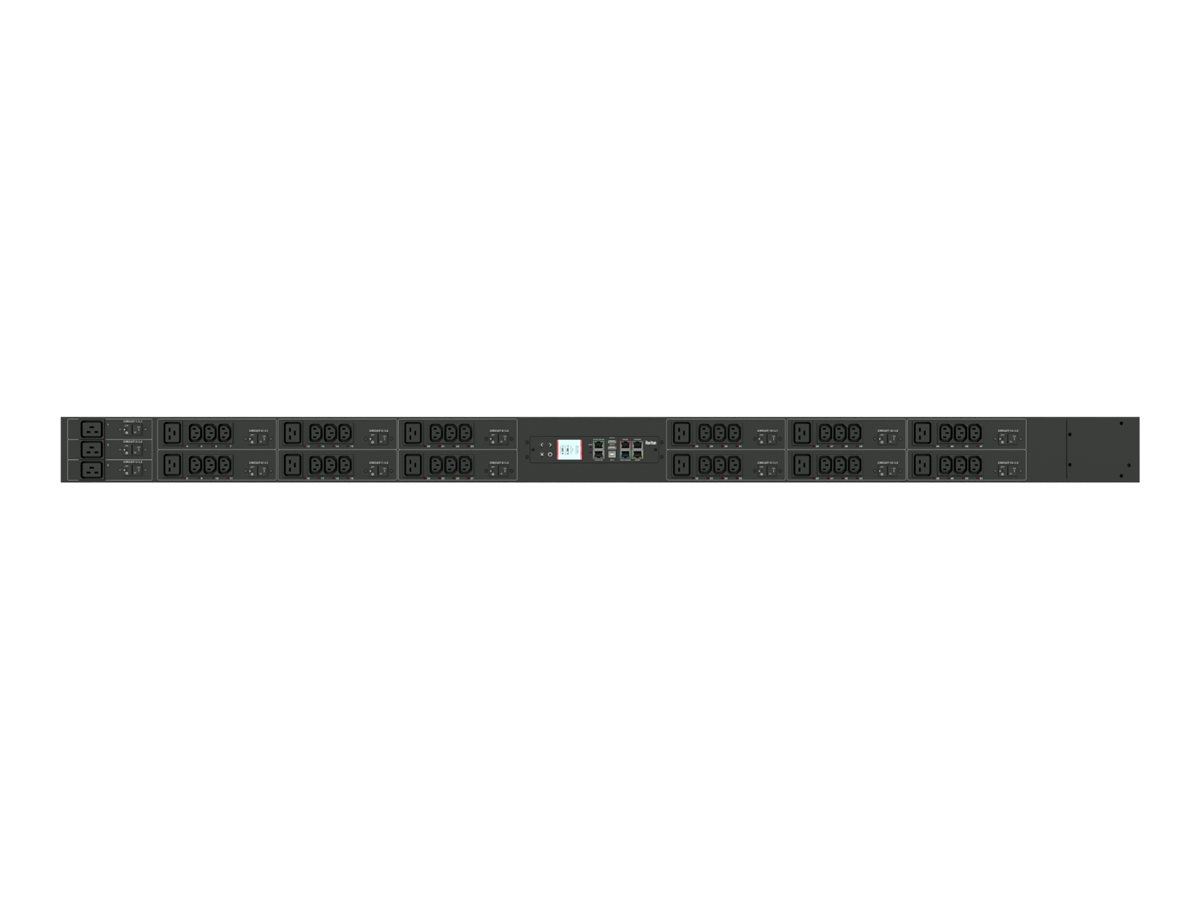

Raritan PX3-4068YV-V2
- Power distribution unit (rack-mountable)
- AC 415 V
- 57500 VA
- 3-phase WYE (star)
- RS-232, USB, Ethernet 10/100/1000
- output connectors: 51 (36 x IEC 60320 C13 12A, 15 x IEC 60320 C19)
- 0U
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-4068YV-V2K1 |
| SHI Part #: | 34490847 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-4068YV-V2 - Power distribution unit (rack-mountable) - AC 415 V - 57500 VA - 3-phase WYE (star) - RS-232, USB, Ethernet 10/100/1000 - output connectors: 51 (36 x IEC 60320 C13 12A, 15 x IEC 60320 C19) - 0U - red |
| Manufacturer | Legrand |
| MSRP | $4,065.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 9.8 kg |
| Dimensions & Weight / Width | 10.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 51 |
| Power Device / Power Capacity (VA) | 57500 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 178 cm |
| Weight | 9.8 kg |
| Width | 10.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.5 cm |
| Shipping Height | 2 m |
| Shipping Weight | 12.3 kg |
| Shipping Width | 21.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21 |
| Features | LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, 15 x Airpax LELBX1-20 overload protection |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 80 A |
| Output Voltage | 230 V |
| Power Capacity | 57500 VA |
| Power Capacity Details | 52.7 kVA at 380 V, 57.5 kVA at 415 V |
| Power Output Connectors Details |
|
