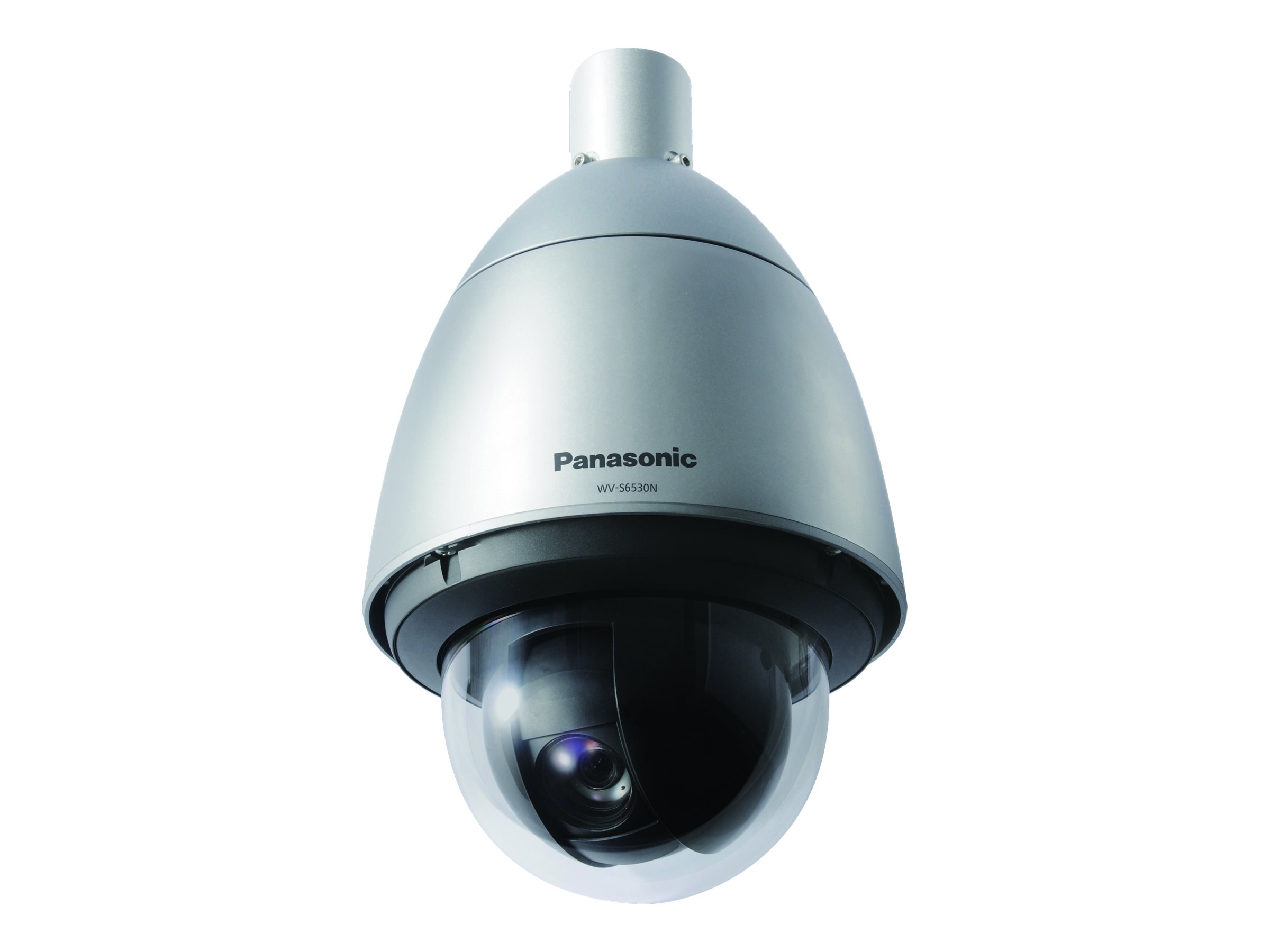

Panasonic i-Pro Extreme WV-S6530N
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Panasonic i-Pro Extreme WV-S6530N
- Network surveillance camera
- PTZ
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 3 MP
- 2048 x 1536
- 1080p
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- AC 24 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Mfr Part #: | WV-S6530N |
| SHI Part #: | 34426510 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Panasonic i-Pro Extreme WV-S6530N - Network surveillance camera - PTZ - outdoor - vandal / weatherproof - color (Day&Night) - 3 MP - 2048 x 1536 - 1080p - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - AC 24 V / PoE Plus Class 4 |
| Manufacturer | Panasonic |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.9 cm |
| Dimensions & Weight / Height | 39.3 cm |
| Dimensions & Weight / Weight | 4.8 kg |
| Dimensions & Weight / Width | 22.9 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 16 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | Backlight Compensation (BLC), digital noise reduction, Adaptive Black Stretch (ABS), Iintelligent Video Motion Detection (i-VMD), infrared cut filter, Intelligent Auto (iA), Highlight Compensation (HLC), 256 preset positions, Video Motion Detection Technology, Privacy Zone, fog compensation, dehumidifier, Enhanced Super Dynamic, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, Smart Coding Technology, Smart Facial Coding, ClearSight Coating |
| Max Digital Video Resolution | 2048 x 1536 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Video Capture |
|
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 22.9 cm |
| Device Type | Network surveillance camera |
| Height | 39.3 cm |
| Weight | 4.8 kg |
| Width | 22.9 cm |
| Image Sensor | |
| Type | 3 MP MOS 1/2.9" |
| Interfaces | |
| Alarm Inputs Qty | 3 |
| Alarm Outputs Qty | 2 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, MLD |
| Lens Construction | |
| Focal Length | 4 mm - 84.6 mm |
| Horizontal Field of View (degree) | 2.9 - 73 |
| Lens Iris | F/1.6-4.5 |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 21 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 2 - 46 |
| Miscellaneous | |
| Color | Clear lower dome, natural silver |
| Compliant Standards | IEC 60529 IP66, NEMA Type 4, IEC 62262 IK10, UL 50, IEEE 802.3at |
| Panning | |
| Range (degree) | 0 to 350 |
| Speed (degree/sec) | Up to 300 |
| Power | |
| Power Device | 43 Watt |
| Power Requirements | AC 24 V / PoE Plus Class 4 |
| Software / System Requirements | |
| OS Required | Android, Apple iOS |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 100 |
