Panasonic AW-HN40HWPJ
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

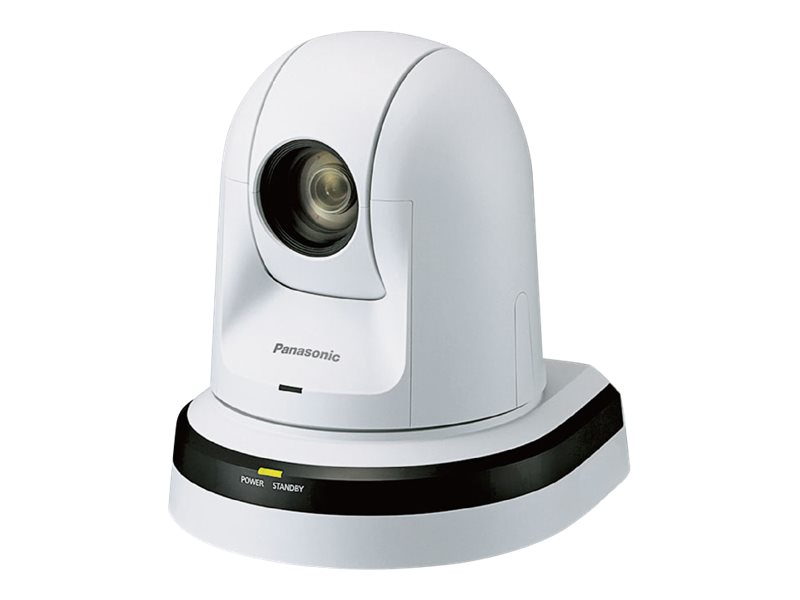

Panasonic AW-HN40HWPJ
- Conference camera
- PTZ
- indoor
- color (Day&Night)
- 1920 x 1080
- motorized
- 1000 TVL
- audio
- HDMI
- LAN 10/100
- MJPEG, H.264, MPEG-4 AVC
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Mfr Part #: | AW-HN40HWPJ |
| SHI Part #: | 34365195 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | Panasonic AW-HN40HWPJ - Conference camera - PTZ - indoor - color (Day&Night) - 1920 x 1080 - motorized - 1000 TVL - audio - HDMI - LAN 10/100 - MJPEG, H.264, MPEG-4 AVC - DC 12 V / PoE Plus |
| Manufacturer | Panasonic |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.6 cm |
| Dimensions & Weight / Height | 18.6 cm |
| Dimensions & Weight / Weight | 1.5 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 640 x 360, 320 x 180 |
| Digital Video Format | MJPEG, H.264, MPEG-4 AVC |
| Digital Zoom | 16 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Features | White balance, Multicast Streaming, Unicast Streaming |
| Frame Rate (max) | 60 frames per second |
| Horizontal Resolution (TV Lines) | 1000 |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - pan / tilt / zoom - indoor |
| Video Modes | 720/50p, 1080/50p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94p, 720/59.94p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | AAC-LC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 16.6 cm |
| Device Type | Conference camera |
| Height | 18.6 cm |
| Weight | 1.5 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | MOS 1/2.3" |
| Interfaces | |
| Control Interface | RS-232C, RS-422 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, DNS, FTP, HTTP, NTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, IGMP, SSL, NDI HX |
| Video | HDMI |
| Lens Construction | |
| Diagonal Field of View (degree) | 2.4 - 68.7 |
| Focal Length | 4.5 mm - 129 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.1 - 61.6 |
| Lens Iris | F/1.6-4.7 |
| Min Focus Distance | 10 cm |
| Optical Zoom | 30 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.1 - 37 |
| Miscellaneous | |
| Color | Pearl white |
| Compliant Standards | IEEE 802.3at |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 300 |
| Power | |
| Power Device | Power adapter |
| Power Requirements | DC 12 V / PoE Plus - 1.2 A |
| Software / System Requirements | |
| OS Required | Apple MacOS, Microsoft Windows, Android, Apple iOS |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 300 |
