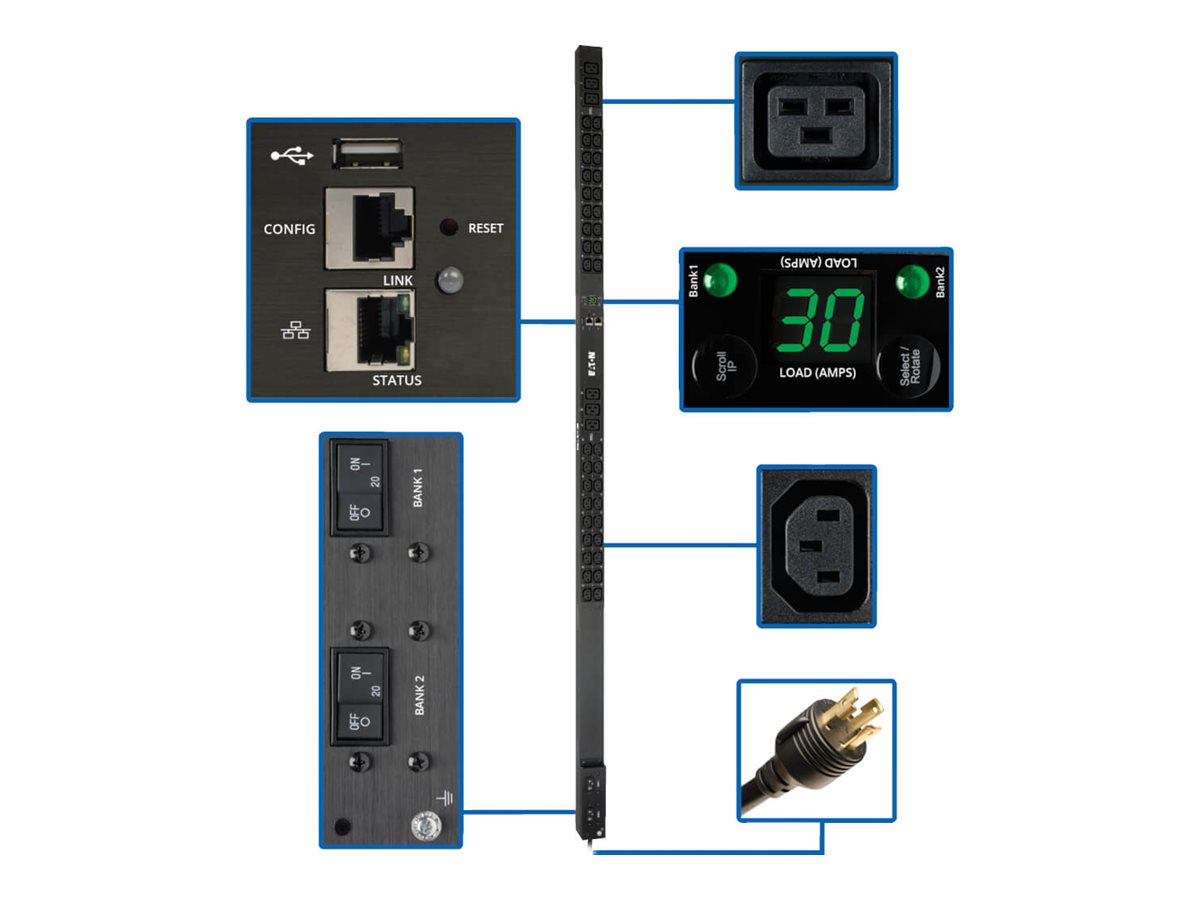

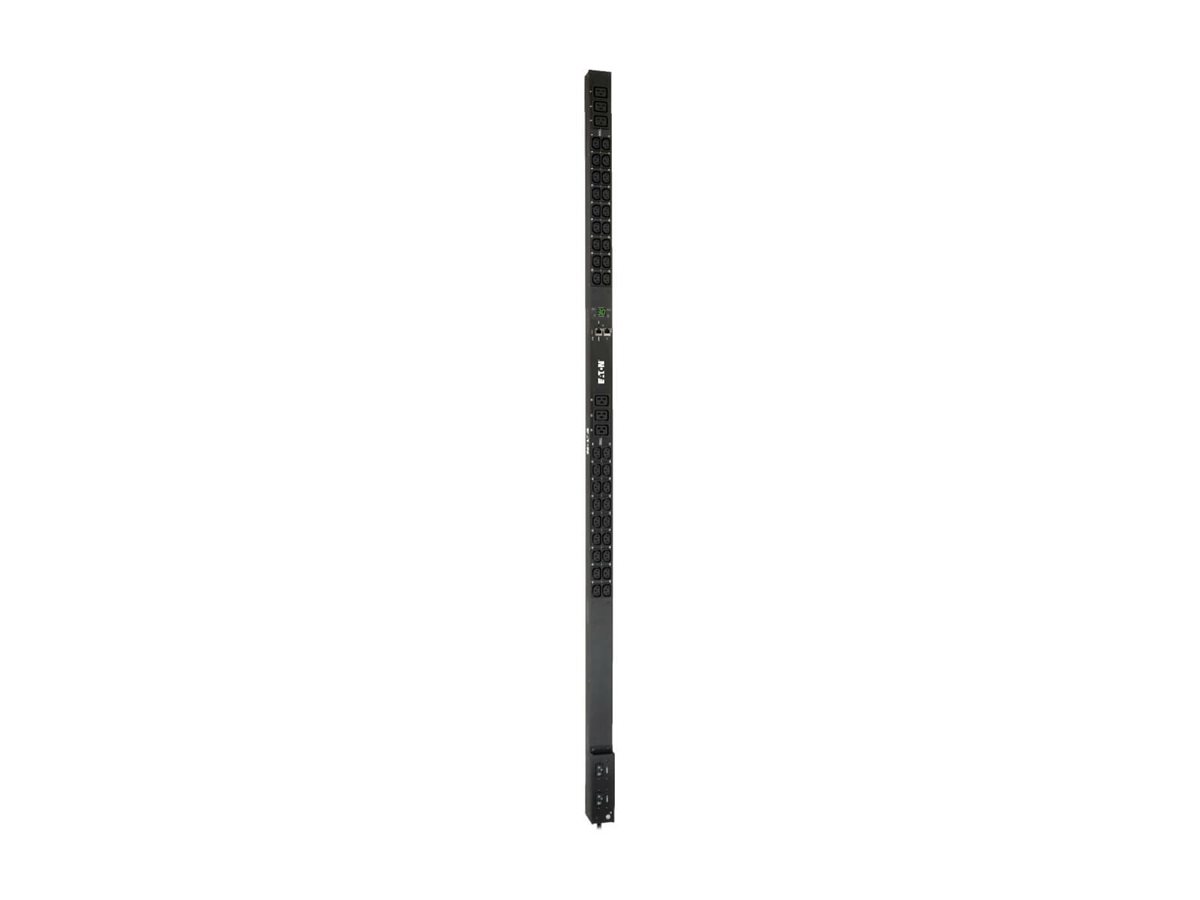

Tripp Lite 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA

Login for Price
Tripp Lite 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Power distribution unit (rack-mountable)
  • 30 A
  • AC 200/208/240 V
  • 5.8 kW
  • 1-phase
Tripp Lite 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA
  • Power distribution unit (rack-mountable)
  • 30 A
  • AC 200/208/240 V
  • 5.8 kW
  • 1-phase
  • Ethernet 10/100, USB, serial
  • input: NEMA L6-30
  • output connectors: 42 (IEC 60320 C13, IEC 60320 C19)
  • 0U
  • 3.05 m
  • TAA Compliant
  Additional Details
Mfr Part #: PDUMNV30HV2LX
SHI Part #: 34305527
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Eaton
Product Type: Hardware

Power Cables

Tripp Lite 6ft Power Cord Extension Cable C14 to C13 Heavy Duty 15A 14AWG 6'
Tripp Lite 6ft Power Cord Extension Cable C14 to C13 Heavy Duty 15A 14AWG 6'
  • Power cable
  • IEC 60320 C13 to IEC 60320 C14
  • AC 250 V
  • 1.8 m
  • molded
  • black
MSRP $26.39 $14.00
Tripp Lite 10ft Power Cord Extension Cable C19 to C14 Heavy Duty 15A 14AWG 10'
Tripp Lite 10ft Power Cord Extension Cable C19 to C14 Heavy Duty 15A 14AWG 10'
  • Power cable
  • IEC 60320 C14 to IEC 60320 C19
  • 3 m
  • molded
  • black
MSRP $59.23 $31.00
Tripp Lite 6ft Power Cord Extension Cable C19 to C20 Heavy Duty 20A 12AWG 6'
Tripp Lite 6ft Power Cord Extension Cable C19 to C20 Heavy Duty 20A 12AWG 6'
  • Power cable
  • IEC 60320 C19 to IEC 60320 C20
  • 1.8 m
  • molded
  • black
MSRP $48.60 $25.00

Cables

Tripp Lite EnviroSense2 Environmental Sensor Module with Temperature, Humidity and Digital Inputs
Tripp Lite EnviroSense2 Environmental Sensor Module with Temperature, Humidity and Digital Inputs
  • Environmental module
  • TAA Compliant
MSRP $299.00 $263.00
Tripp Lite Environmental Sensor Module w/ Temperature Monitoring
Tripp Lite Environmental Sensor Module w/ Temperature Monitoring
  • Temperature sensor
  • TAA Compliant
MSRP $219.00 $193.00
Tripp Lite Environmental Sensor w/ Temperature Monitoring & Digital Outputs
Tripp Lite Environmental Sensor w/ Temperature Monitoring & Digital Outputs
  • Environmental module
  • TAA Compliant
MSRP $232.00 $204.00
General Information
CategoryRack systems for rack mount electroni...
DescriptionTripp Lite 5/5.8kW Single-Phase Monitored PDU, LX Interface, 208/240V Outlets (36 C13/6 C19), L6-30P, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA - Power distribution unit (rack-mountable) - 30 A - AC 200/208/240 V - 5.8 kW - 1-phase - Ethernet 10/100, USB, serial - input: NEMA L6-30 - output connectors: 42 (IEC 60320 C13, IEC 60320 C19) - 0U - 3.05 m - TAA Compliant
ManufacturerEaton
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth6.73 cm
Dimensions & Weight / Height177.8 cm
Dimensions & Weight / Weight6.8 g
Dimensions & Weight / Width5.59 cm
Header / BrandTripp Lite
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty42
Power Device / Voltage RequiredAC 200/208/240 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth6.73 cm
Height177.8 cm
Weight6.8 g
Width5.59 cm
Dimensions & Weight (Shipping)
Shipping Depth10.9 cm
Shipping Height184 cm
Shipping Weight7.48 kg
Shipping Width14.7 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Expansion / Connectivity
Interfaces
  • 1 x USB - 4 pin USB Type A

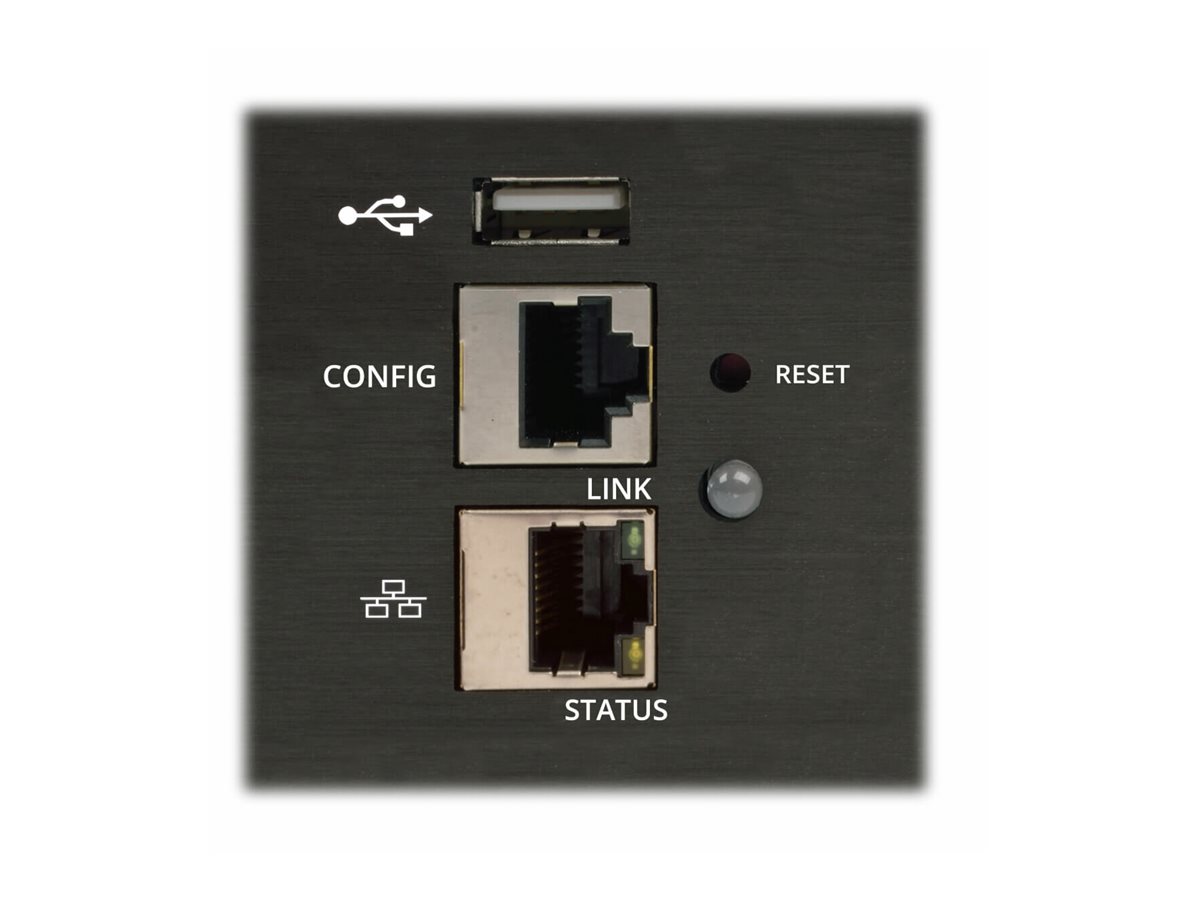

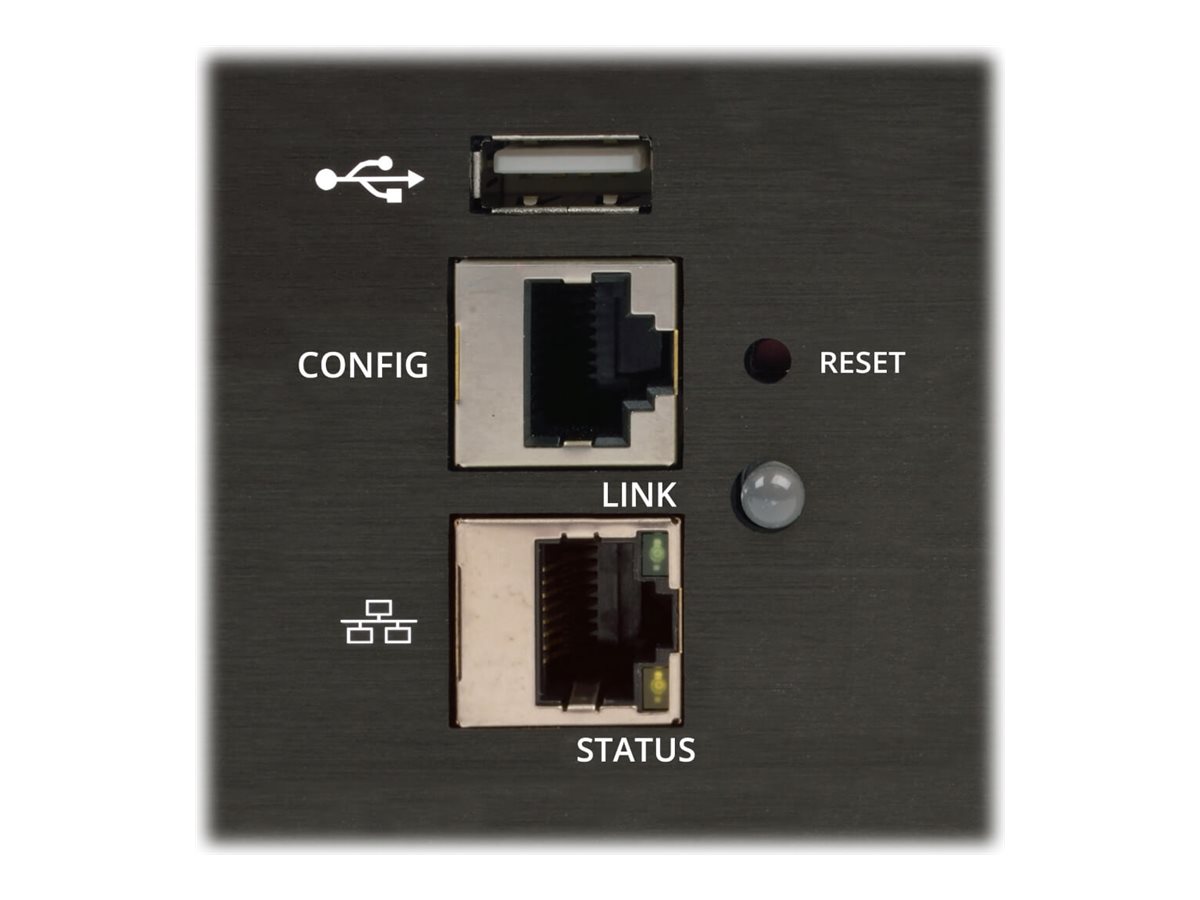

  • 1 x management (Fast Ethernet) - RJ-45
  • 1 x serial - RJ-45
General
Cord Length3.05 m
Device TypePower distribution unit - rack-mountable
Height (Rack Units)0U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedPower cable - external - 3.05 m
Compliant StandardsNOM, RoHS, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1:2007, FCC CFR47 Part 15 A

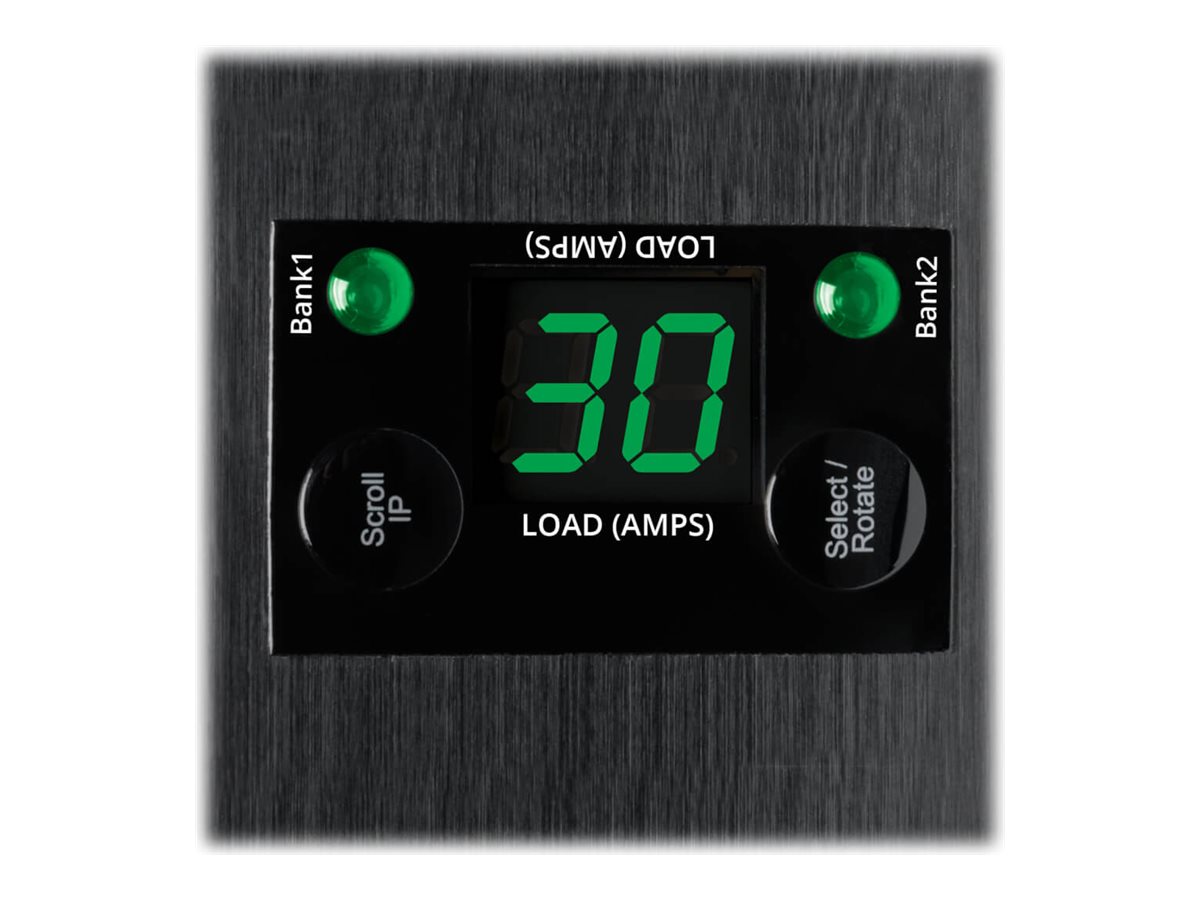

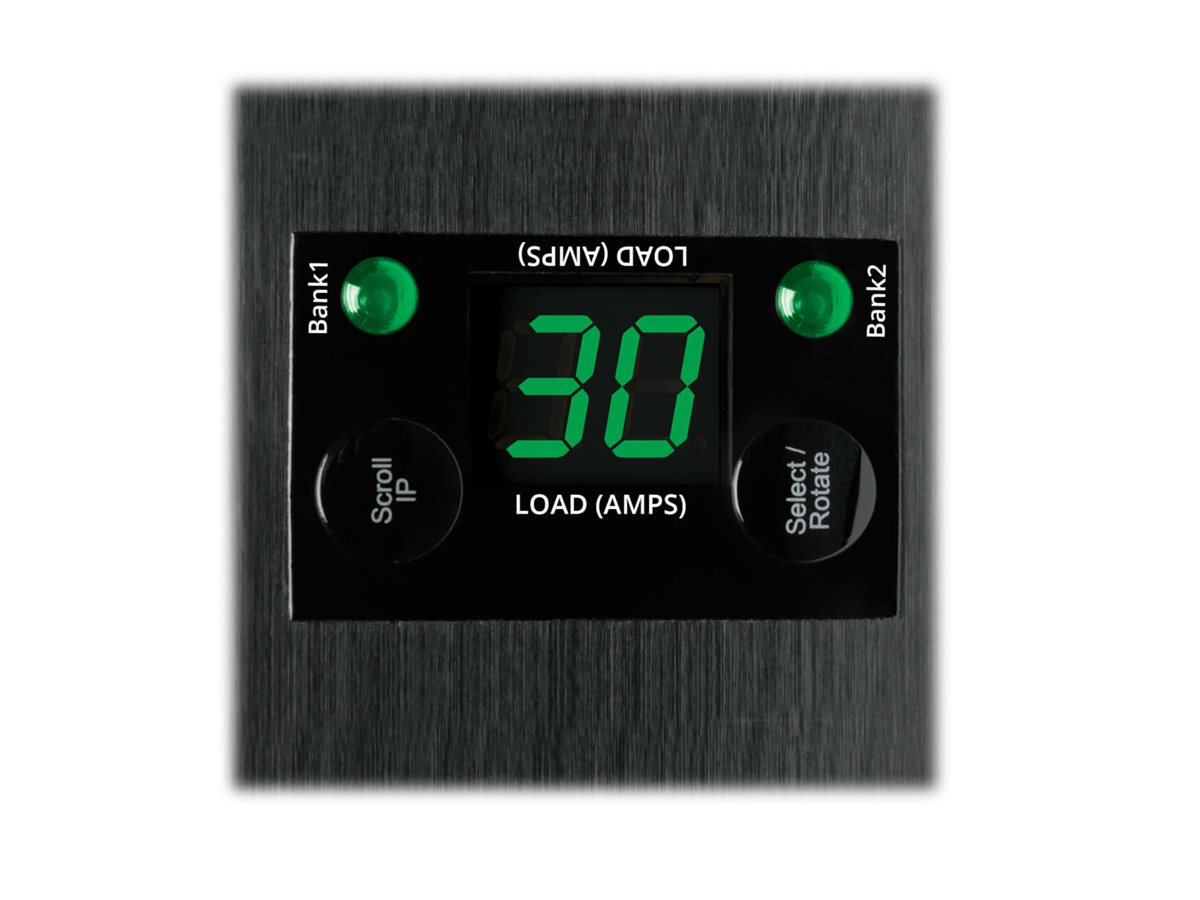

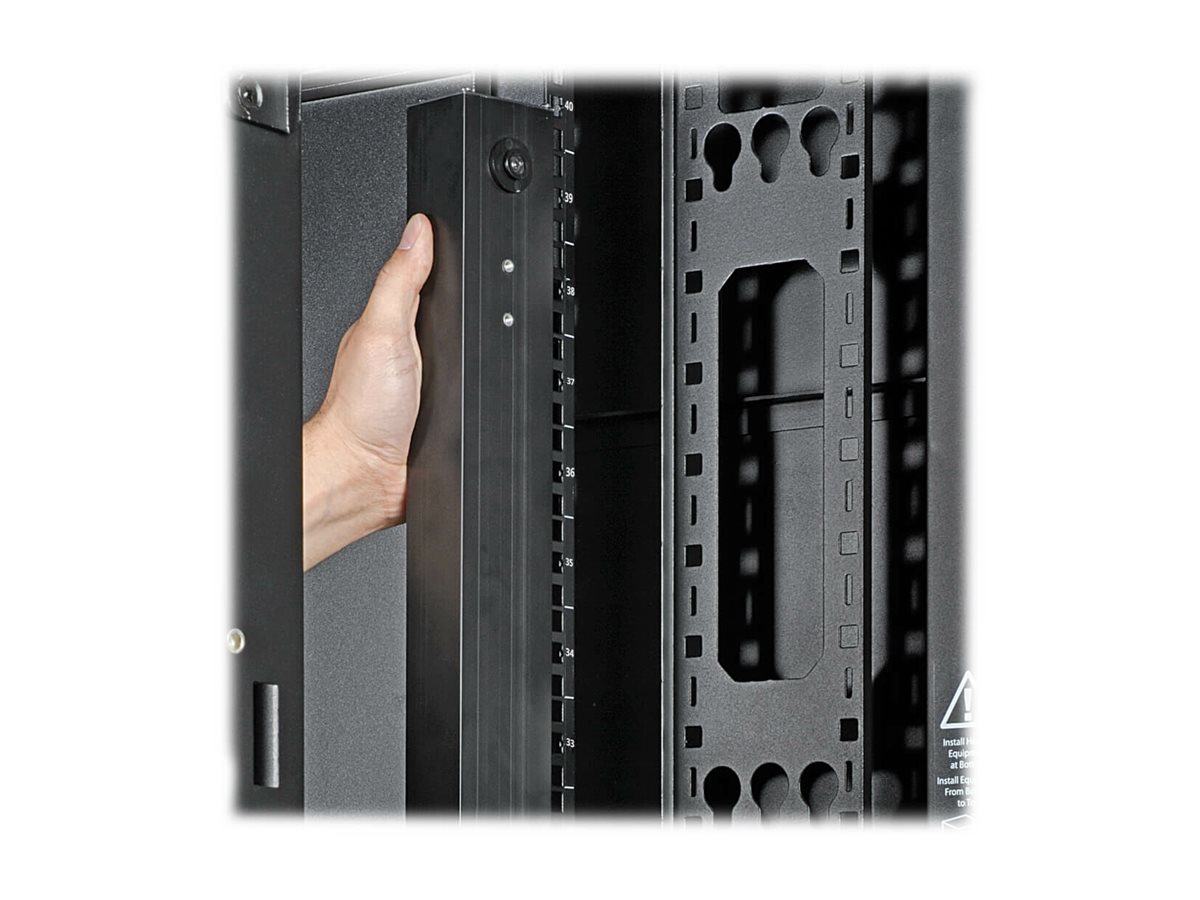

FeaturesVertical orientation, LCD display, current meter, amp meter, email alerts support, firmware upgradable

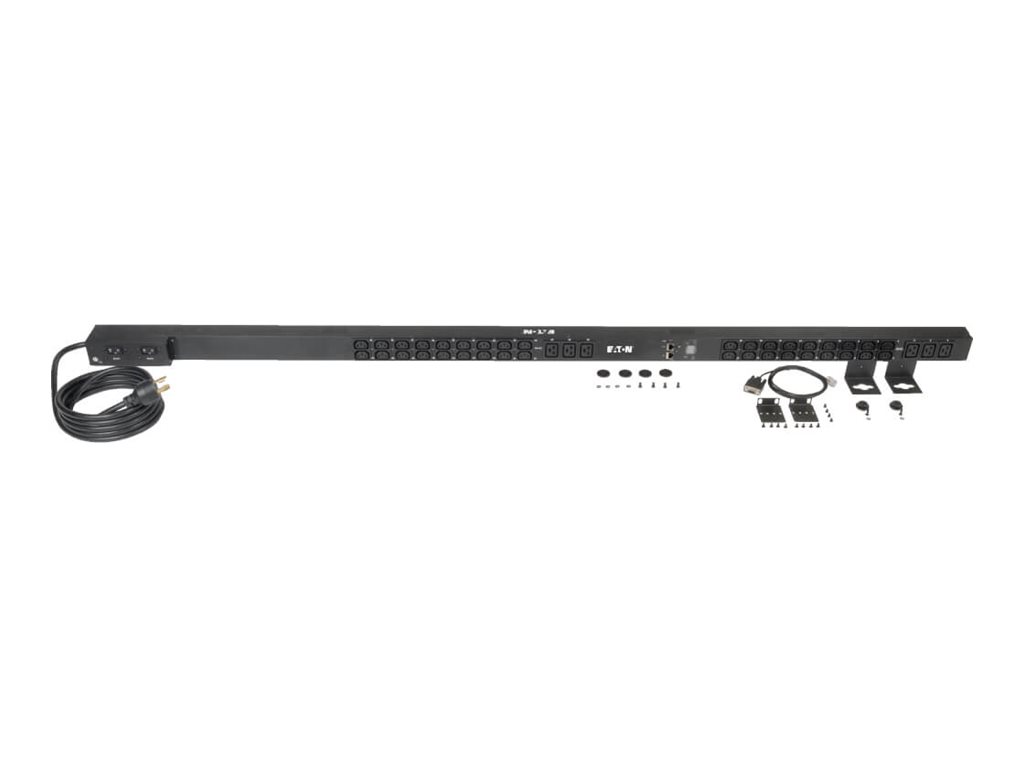

Included Accessories42 plug-lock inserts
Rack Mounting KitIncluded
TAA CompliantYes
Networking
Remote Management InterfaceEthernet 10/100, USB, serial
Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP
Power Device
Frequency Provided50/60 Hz

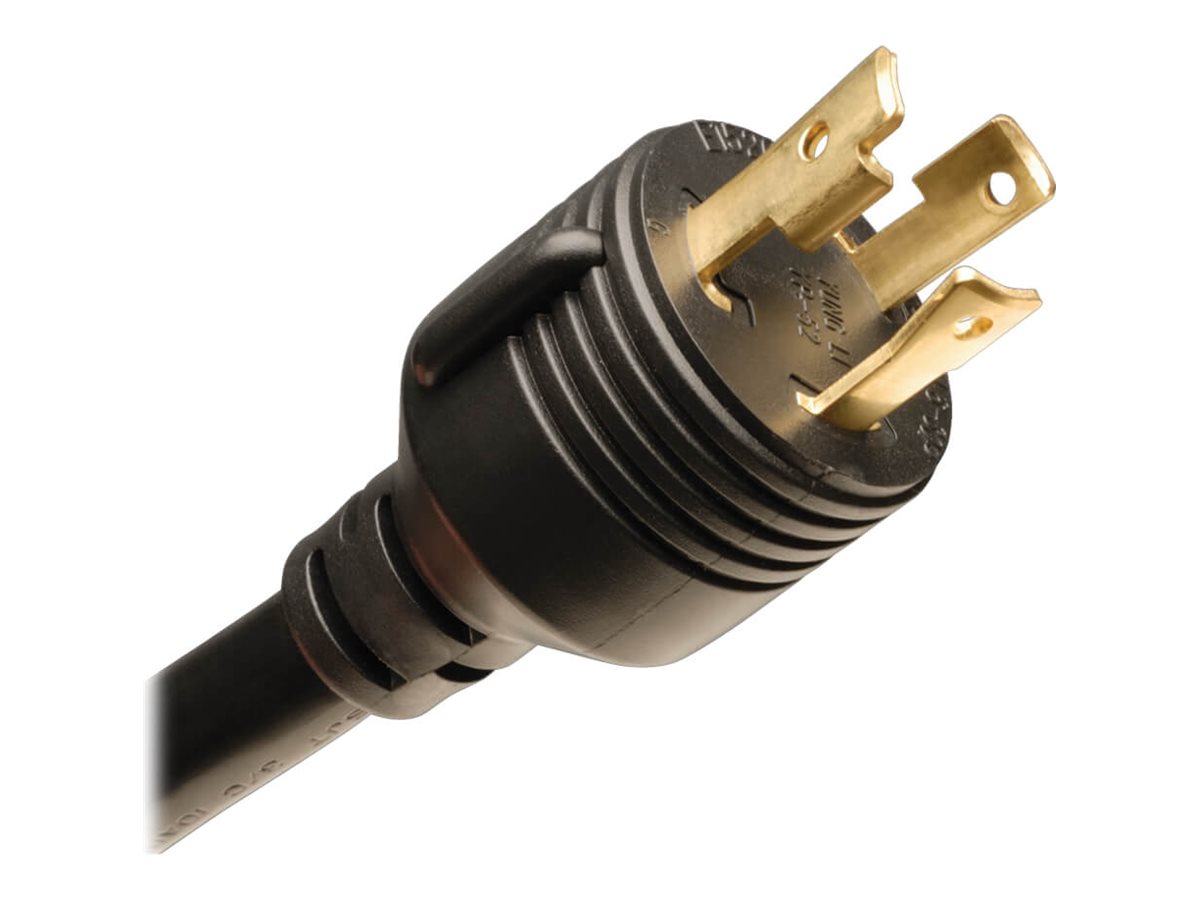

Input Connectors1 x power NEMA L6-30
Input VoltageAC 200/208/240 V
Input Wiring1-phase
Max Electric Current30 A
Output VoltageAC 200/208/240 V 50/60 Hz
Power Capacity5.8 kW
Power Output Connectors Details

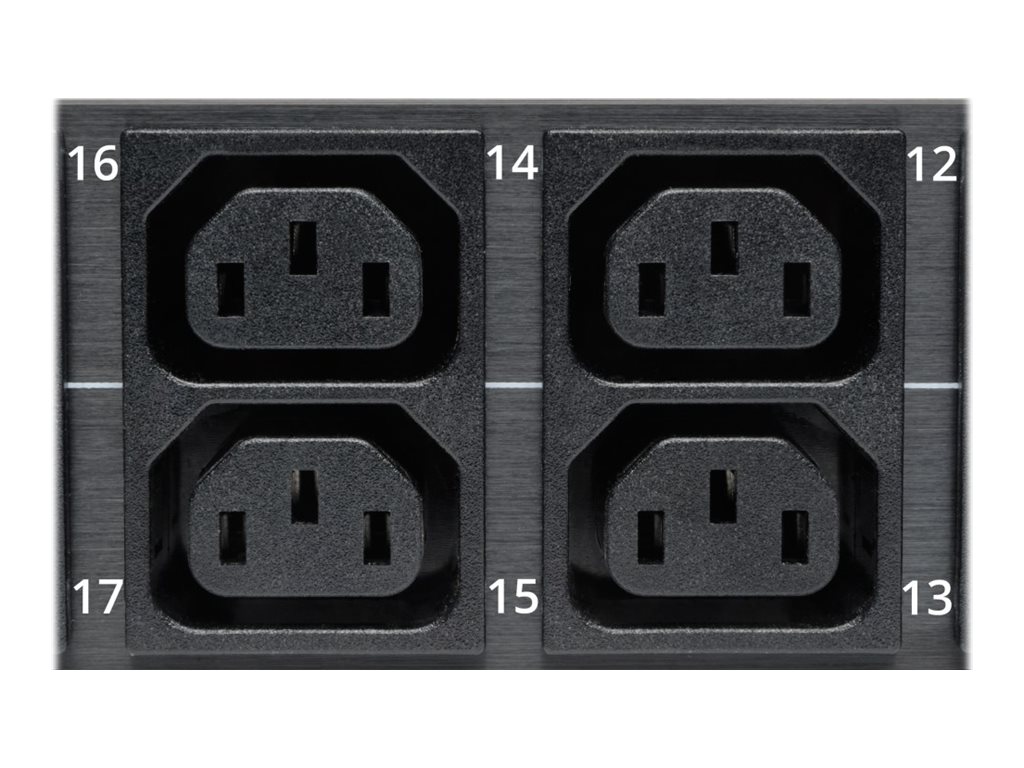

  • 36 x power IEC 60320 C13

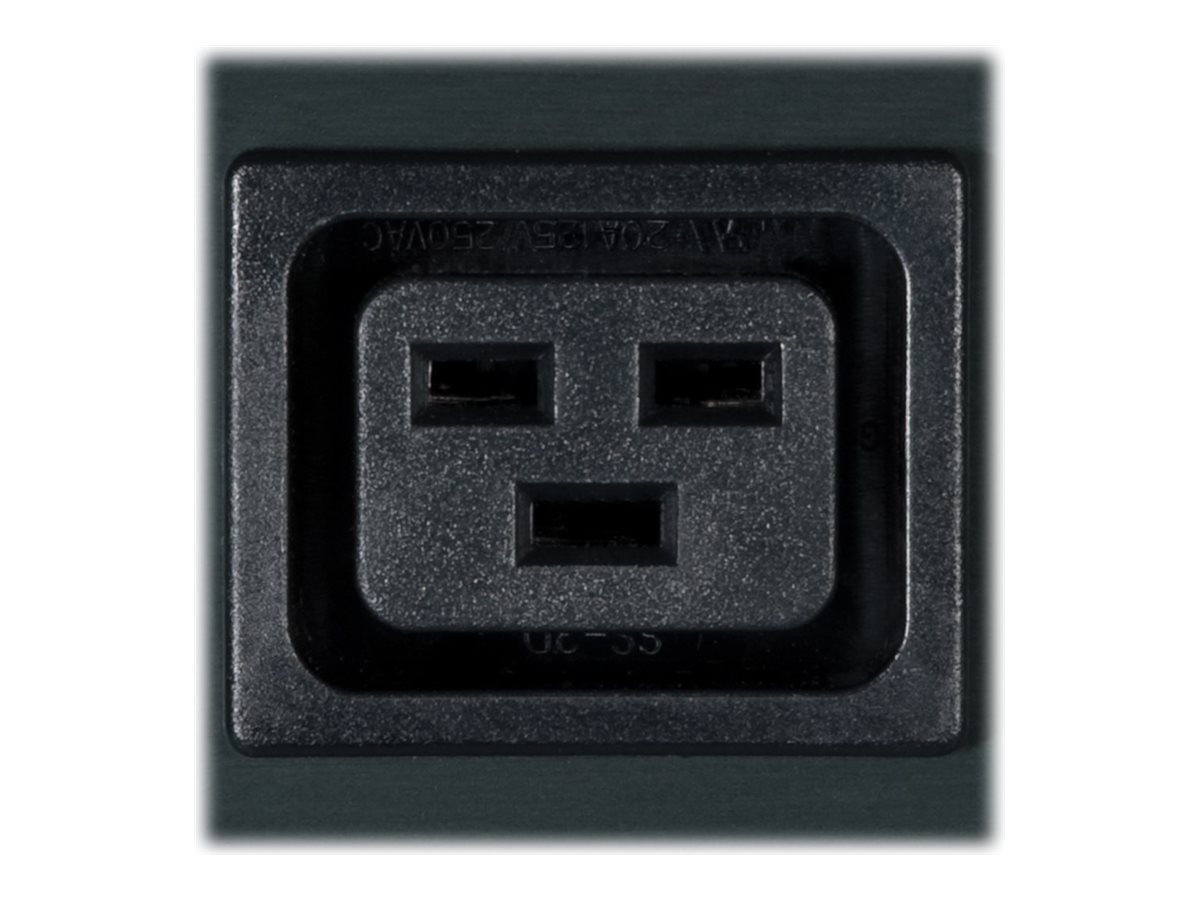

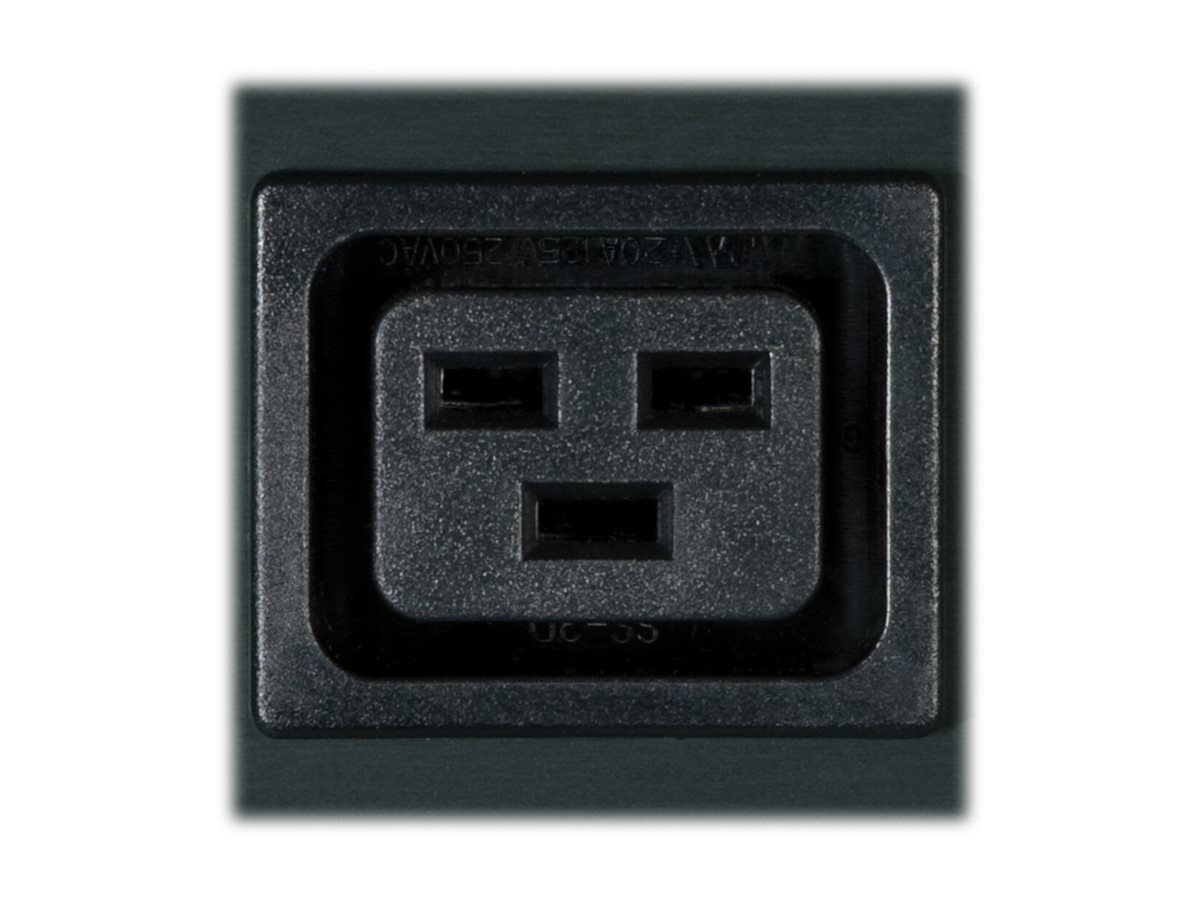

  • 6 x power IEC 60320 C19
