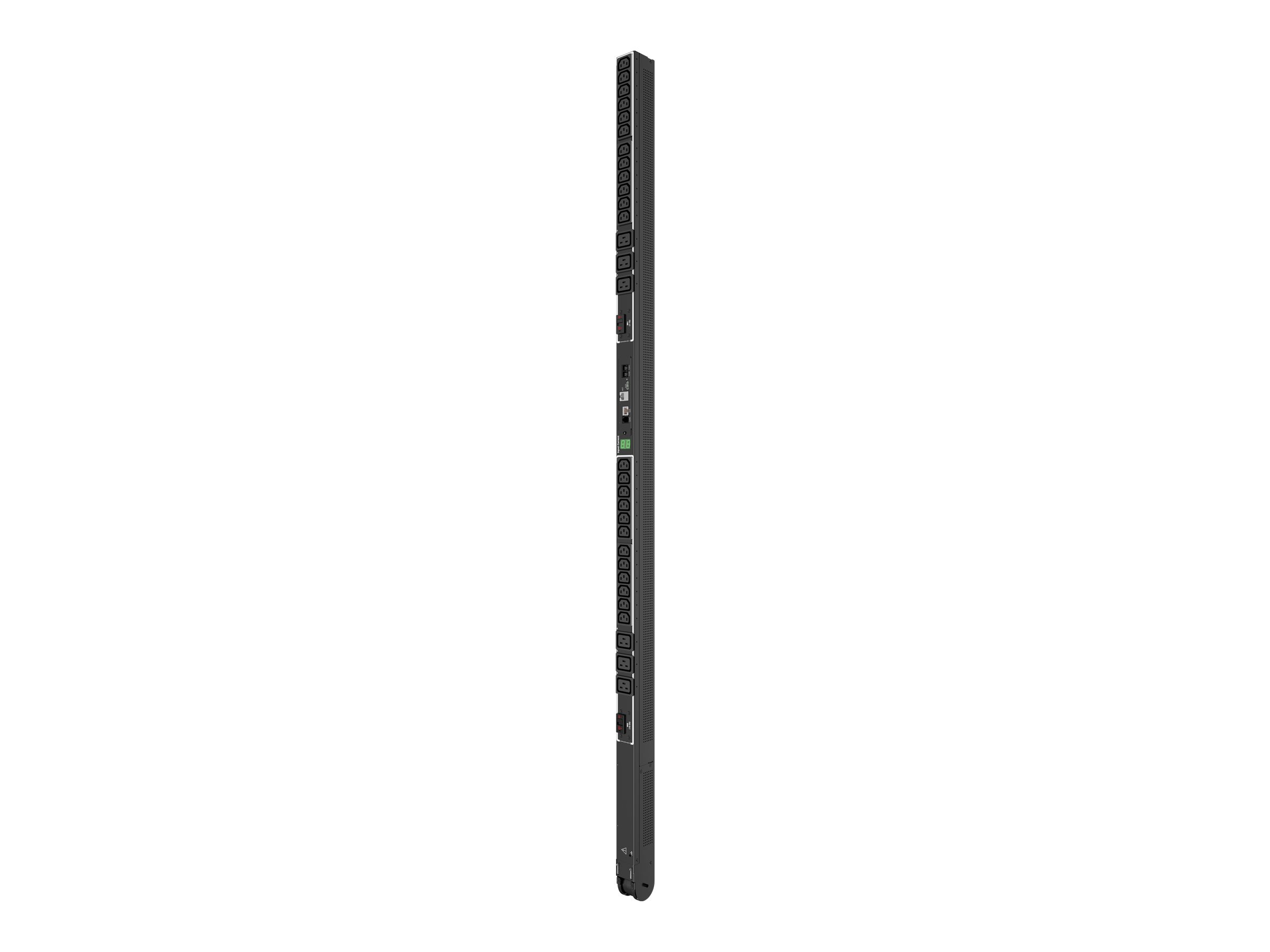

Server Technology PRO1 Smart PDU STV-3531K
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO1 Smart PDU STV-3531K
- Master
- power distribution unit (rack-mountable)
- AC 230 V
- 7.3 kW
- Ethernet 10/100/1000, RS-232
- input: 2-pole + PE
- output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | STV-3531K |
| SHI Part #: | 34277687 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO1 Smart PDU STV-3531K - Master - power distribution unit (rack-mountable) - AC 230 V - 7.3 kW - Ethernet 10/100/1000, RS-232 - input: 2-pole + PE - output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19) |
| Manufacturer | Legrand |
| MSRP | $955.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.8 cm |
| Dimensions & Weight / Height | 152.4 cm |
| Dimensions & Weight / Width | 4.5 cm |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5.8 cm |
| Height | 152.4 cm |
| Width | 4.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | IEC 60950-1, UL 60950-1, ANSI C12.1, UL 489, TUV T, TLS v1.2, EN 60950-1:2006+A11+A1+A12+A2, EN 55024:2010, EN 55032:2012, RoHS 2011/65/EU, WEEE |
| Features | Vertical orientation, PDU Power Pivot, LED display, current meter, measurement per phase, Per Input Power Sensing (PIPS), active power meter, voltage monitoring, apparent power meter, power factor meter, energy meter, crest factor meter |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, Telnet, SFTP, SMTP, CLI, SSH-2, SNMP 3, SNMP 2c |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power 2-pole + PE |
| Input Voltage | AC 230 V |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 7.3 kW |
| Power Output Connectors Details |
|
