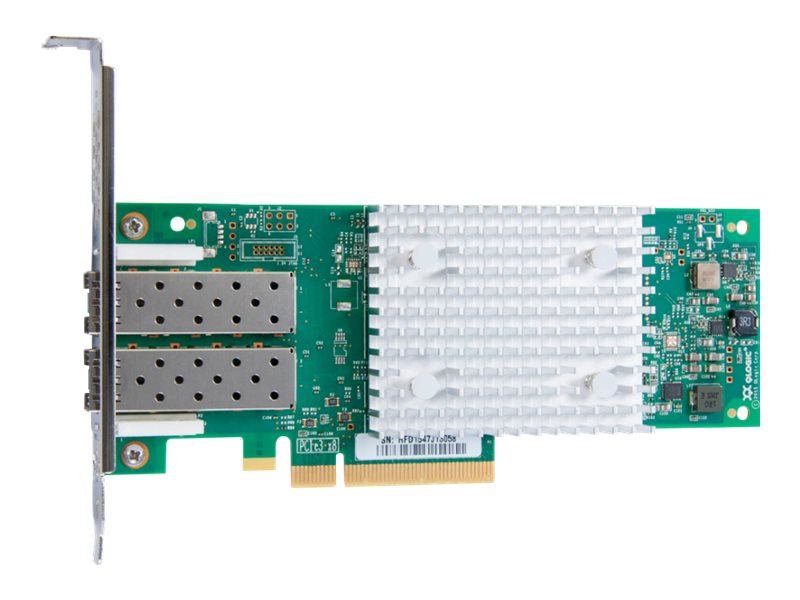

Marvell QLogic QLE2742-CSC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Marvell QLogic QLE2742-CSC
- Host bus adapter
- PCIe 3.0 x8 low profile
- 16Gb Fibre Channel x 2
- for UCS C240 M5, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX
| Additional Details | |
|---|---|
| Mfr Part #: | UCSC-PCIE-QD32GF |
| SHI Part #: | 34233949 |
| Category: | Enclosures and frames and backplanes |
| UNSPSC: | 43201600 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Enclosures and frames and backplanes |
| Description | Marvell QLogic QLE2742-CSC - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel x 2 - for UCS C240 M5, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.8 cm |
| Dimensions & Weight / Width | 6.94 cm |
| Header / Brand | Marvell |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 32Gb Fibre Channel |
| Networking / Data Transfer Rate | 32 Gbps |
| Networking / Type | Host bus adapter |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | Cisco UCS C220 M4S (Not sold Standalone), C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C480 M5 Standard Base Chassis, Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4S (Not sold Standalone ), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6 |
| Dimensions & Weight | |
| Depth | 16.8 cm |
| Width | 6.94 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 16Gb Fibre Channel - FC |
| General | |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, CSA C22.2, EN 60950-1, IEC 60950-1, CB, FCC CFR47 Part 15 A, ICES-003 Class A, EN55024, EN 55032, EN 61000-3-2, EN 61000-3-3, VCCI Class A, AS/NZS Class A, KC-RRA Class A, BSMI CNS 13438 |
| Networking | |
| Capacity | Concurrent logins: 2048 |
| Connectivity Technology | Wired |
| Data Link Protocol | 32Gb Fibre Channel |
| Data Transfer Rate | 32 Gbps |
| Features | UEFI support, BIOS support, QLogic StorFusion, Transparent (N_Port ID Virtualization - NPIV) mode support, FEC, LCB, RDP |
| Fibre Channel | FCP-4, FC-Tape, FC-GS-8, FC-PI-5, FC-PI-6, FC-LS-4, FC-FS-4, FC-NVMe |
| Max Transfer Distance | 100 m |
| Ports | 16Gb Fibre Channel x 2 |
| Remote Management Protocol | SMI-S |
