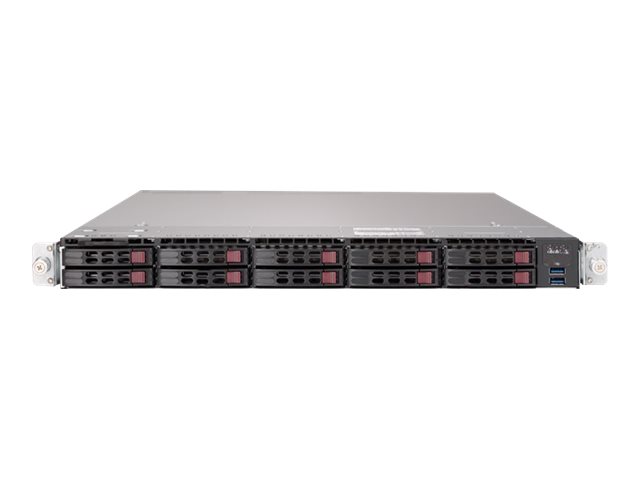

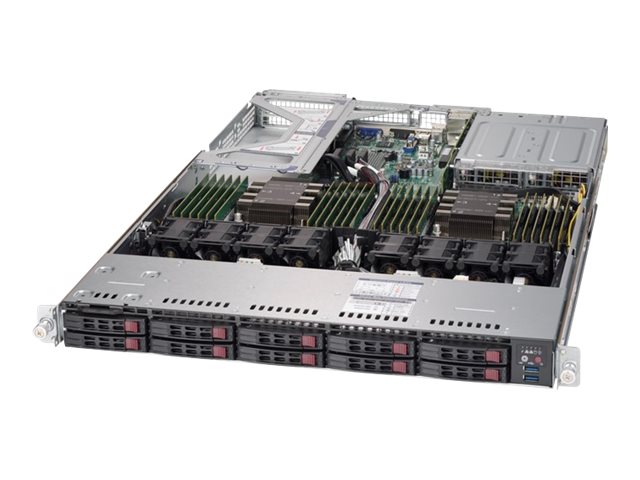

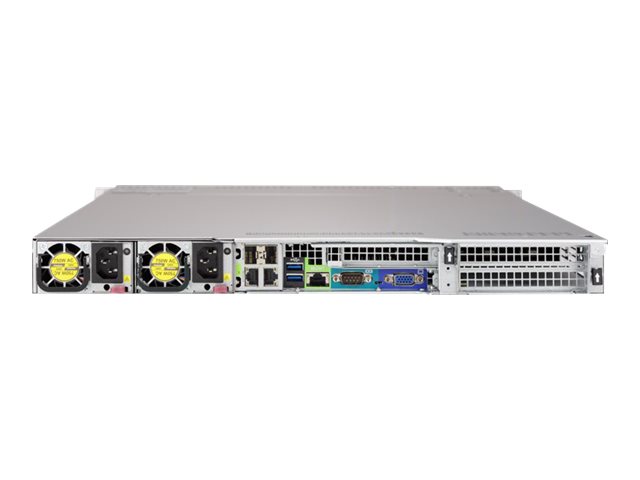

Supermicro SuperServer 1029U-TRTP2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Supermicro SuperServer 1029U-TRTP2
- Server
- rack-mountable
- 1U
- 2-way
- no CPU
- RAM 0 GB
- SATA
- hot-swap 2.5" bay(s)
- no HDD
- AST2500
- Gigabit Ethernet, 10 Gigabit Ethernet
- monitor: none
- black
| Additional Details | |
|---|---|
| Mfr Part #: | SYS-1029U-TRTP2 |
| SHI Part #: | 34233291 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Supermicro SuperServer 1029U-TRTP2 - Server - rack-mountable - 1U - 2-way - no CPU - RAM 0 GB - SATA - hot-swap 2.5" bay(s) - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none - black |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA |
| Dimensions & Weight / Depth | 70.7 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 11.8 kg |
| Dimensions & Weight / Width | 43.7 cm |
| Display / Type | None. |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel C621 |
| Mainboard / Processor Socket | Socket P |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Dimensions & Weight | |
| Depth | 70.7 cm |
| Height | 4.3 cm |
| Weight | 11.8 kg |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Hot-Swap Bays Qty | 10 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | RoHS |
| Included Accessories | 2 x CPU Heatsink, air shroud |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet Controller | Intel X710-AM2 / I350-AM2 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Features | ACPI support, KVM over IP support |
| Remote Management Protocol | IPMI 2.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Efficiency | 94%+ |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 750 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C621 |
| CPU | No CPU |
| CPU Socket | Socket P |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| RAM | |
| Features | Registered, 3DS Load-Reduced DIMM (LRDIMM) |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB / 3 TB (max) |
| RAM Supported |
|
| Slots | 24 (total) / 24 (empty) |
| Technology | DDR4 SDRAM - ECC |
| Storage Controller | |
| Channel Qty | 10 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
