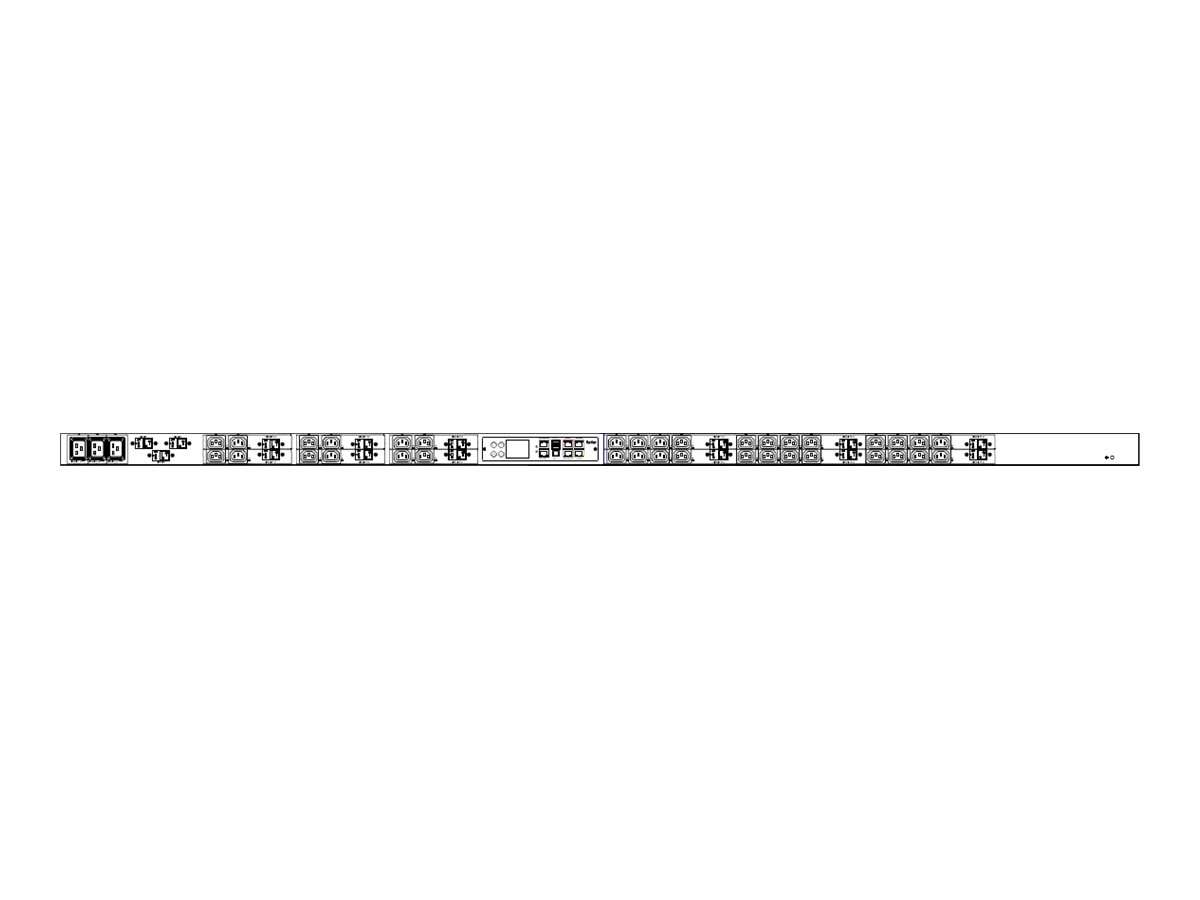

Raritan PX3-4087YU-V2K1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-4087YU-V2K1
- Power distribution unit (rack-mountable)
- AC 415 V
- 57500 VA
- 3-phase WYE (star)
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: terminal block
- output connectors: 39 (3 x IEC 60320 C19, 36 x IEC 60320 C13)
- 0U
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-4087YU-V2K1 |
| SHI Part #: | 34221372 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-4087YU-V2K1 - Power distribution unit (rack-mountable) - AC 415 V - 57500 VA - 3-phase WYE (star) - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: terminal block - output connectors: 39 (3 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - red |
| Manufacturer | Legrand |
| MSRP | $4,065.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 198.1 cm |
| Dimensions & Weight / Weight | 11.4 kg |
| Dimensions & Weight / Width | 5.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 39 |
| Power Device / Power Capacity (VA) | 57500 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 198.1 cm |
| Weight | 11.4 kg |
| Width | 5.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 20.5 cm |
| Shipping Height | 219.7 cm |
| Shipping Weight | 14.7 kg |
| Shipping Width | 21.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21 |
| Features | Alarm, daisy chaining support, Preboot Execution Environment (PXE) support, LCD display, voltage monitoring, current meter, overcurrent protection, overload protection, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x terminal block |
| Input Voltage | AC 415 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 80 A |
| Output Voltage | AC 240 V |
| Power Capacity | 57500 VA |
| Power Capacity Details | 52.7 kVA at 380 V, 57.5 kVA at 415 V |
| Power Output Connectors Details |
|
