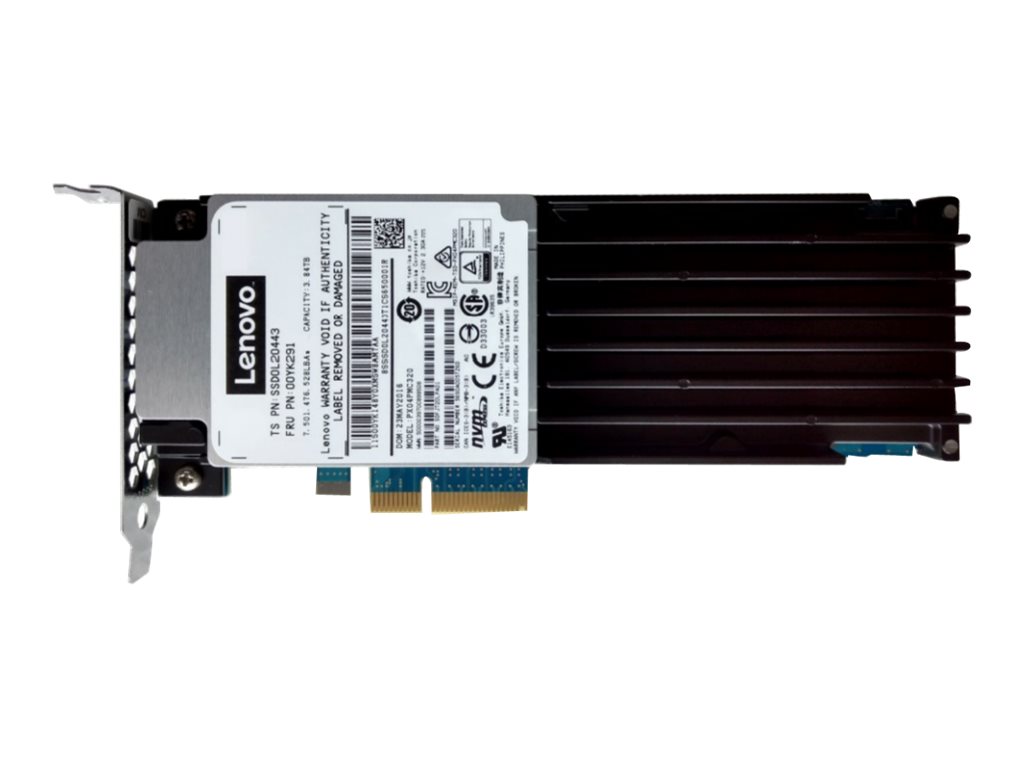

Lenovo NVMe Enterprise Mainstream Flash Adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo NVMe Enterprise Mainstream Flash Adapter
- SSD
- 3.84 TB
- internal
- PCIe card (HHHL)
- PCIe 3.0 x4 (NVMe)
- for ThinkSystem SD530; SR630; SR650; SR850; SR860; SR950
| Additional Details | |
|---|---|
| Mfr Part #: | 7N47A00098 |
| SHI Part #: | 34092669 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo NVMe Enterprise Mainstream Flash Adapter - SSD - 3.84 TB - internal - PCIe card (HHHL) - PCIe 3.0 x4 (NVMe) - for ThinkSystem SD530; SR630; SR650; SR850; SR860; SR950 |
| Manufacturer | Lenovo |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 168 mm |
| Dimensions & Weight / Height | 69 mm |
| Dimensions & Weight / Weight | 220 g |
| Dimensions & Weight / Width | 19 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | PCIe card (HHHL) |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion & Connectivity | |
| Compatible Bay | PCIe card (HHHL) |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 168 mm |
| Device Type | Solid state drive - internal |
| Features | End-to-end data protection, power loss data protection |
| Form Factor | PCIe card (HHHL) |
| Height | 69 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | 19nm multi-level cell (MLC) |
| Weight | 220 g |
| Width | 19 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | TUV, CISPR 22 Class B, BSMI CNS 13438 Class B, EMC, UL 60950-1, EN 60950-1, AS/NZS, KN22, MSIP, RoHS 2011/65/EU, EN50581:2012, EN 55024:2010, CAN/CSA-C22.2 No. 60950-1, EN 55022:2010 Class B |
| Included Accessories | 2U bracket |
| Performance | |
| 4KB Random Read | 666000 IOPS |
| 4KB Random Write | 105000 IOPS |
| Average Latency | 30 µs |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 3100 MBps (read) / 2350 MBps (write) |
| SSD Endurance | 21024 TB |
| Power | |
| Power Consumption | 18.5 Watt (maximum) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Software & System Requirements | |
| OS Required | Red Hat Enterprise Linux 4 x64 Edition, SuSE Linux Enterprise Server 11 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2016, VMware ESXi 6.0, VMware ESXi 6.5 |
