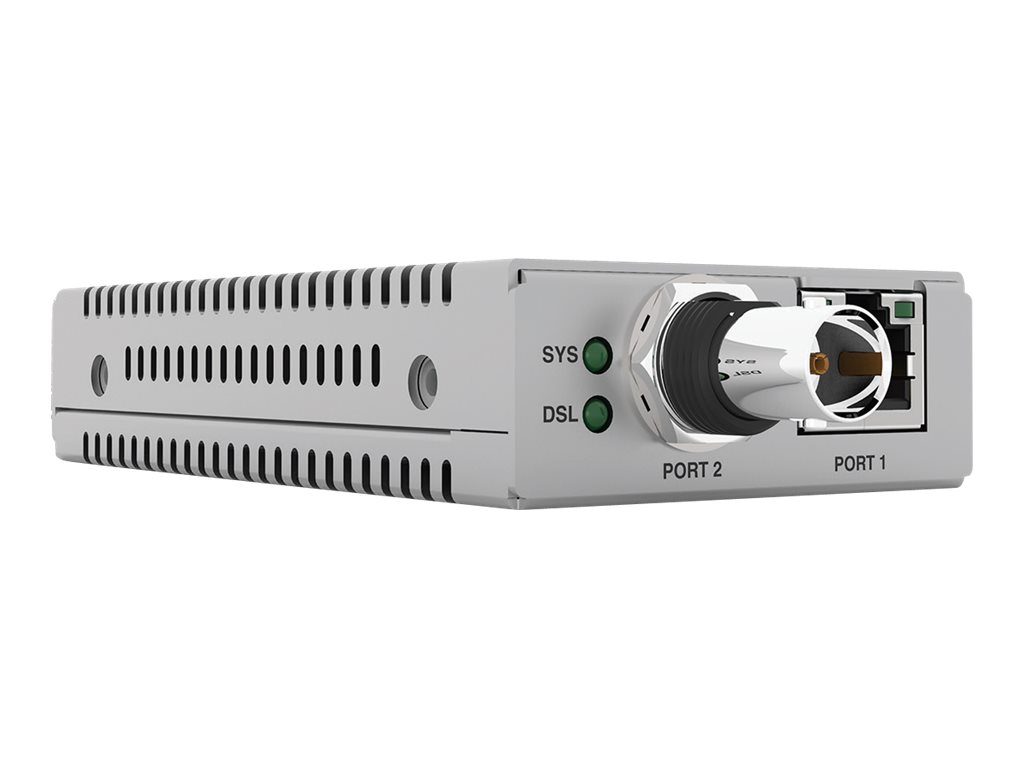

Allied Telesis AT MMC6006
MSRP$376.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Allied Telesis AT MMC6006
- Network extender
- Ethernet over VDSL2, 1GbE
- 1000Base-T, 100Base-TX, 10Base-T
- RJ-45 / BNC
- up to 3 km
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $376.00 |
| Mfr Part #: | AT-MMC6006-60 |
| SHI Part #: | 33793988 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Allied Telesis |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Allied Telesis AT MMC6006 - Network extender - Ethernet over VDSL2, 1GbE - 1000Base-T, 100Base-TX, 10Base-T - RJ-45 / BNC - up to 3 km |
| Manufacturer | Allied Telesis |
| MSRP | $376.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.91 cm |
| Dimensions & Weight / Height | 2.03 cm |
| Dimensions & Weight / Weight | 200 g |
| Dimensions & Weight / Width | 5.08 cm |
| Header / Brand | Allied Telesis |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Type | Network extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 9.91 cm |
| Height | 2.03 cm |
| Weight | 200 g |
| Width | 5.08 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | UL 1950, CSA, EN55022 Class B, EN 60950, TUV, EN50082-1 |
| Networking | |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, Ethernet over VDSL2, 1GbE |
| Features | Full duplex mode, half duplex mode, auto-uplink (auto MDI/MDI-X) |
| Max Transfer Distance | 3 km |
| Status Indicators | Status, link/activity, port duplex mode, system, VDSL |
| Power | |
| Power Consumption Operational | 2 watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
