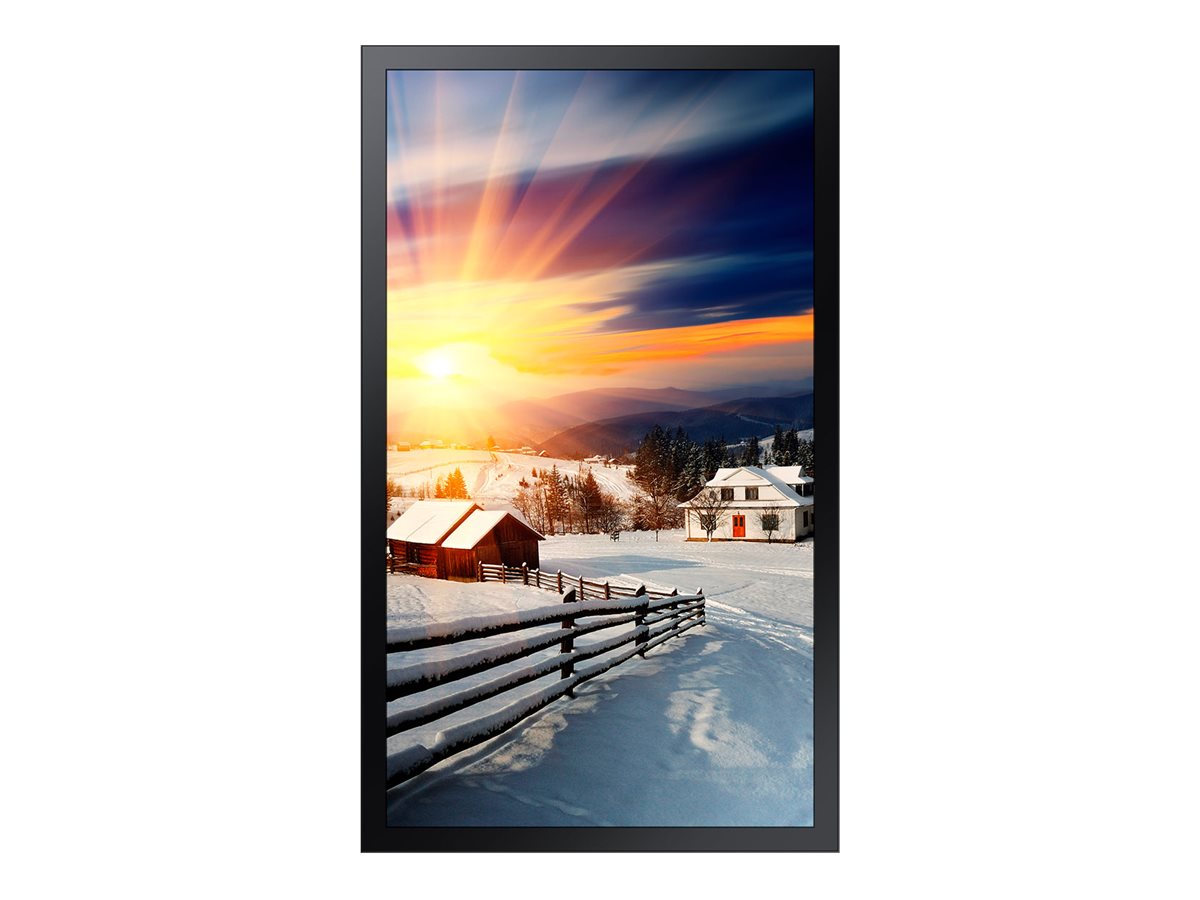

Samsung OH75F - 75" Class

$28,000.00
Samsung OH75F - 75" Class
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • OHF Series LED display
  • digital signage
  • outdoor
  • Tizen OS
  • 1080p (Full HD) 1920 x 1080
Samsung OH75F - 75" Class
  • OHF Series LED display
  • digital signage
  • outdoor
  • Tizen OS
  • 1080p (Full HD) 1920 x 1080
  • local dimming, direct-lit LED
  Additional Details
Price: $28,000.00
Mfr Part #: OH75F
SHI Part #: 33738940
Category: Hardware and accessories
UNSPSC: 43210000
Manufacturer: Samsung
Product Type: Hardware
General Information
CategoryHardware and accessories
DescriptionSamsung OH75F - 75" Class - OHF Series LED display - digital signage - outdoor - Tizen OS - 1080p (Full HD) 1920 x 1080 - local dimming, direct-lit LED
ManufacturerSamsung
UNSPSC43210000
Main Specifications
C.P.U.LFD
Dimensions & Weight / Weight417.00
Height048.00
Length076.00
UPC8806088808581
Width019.50

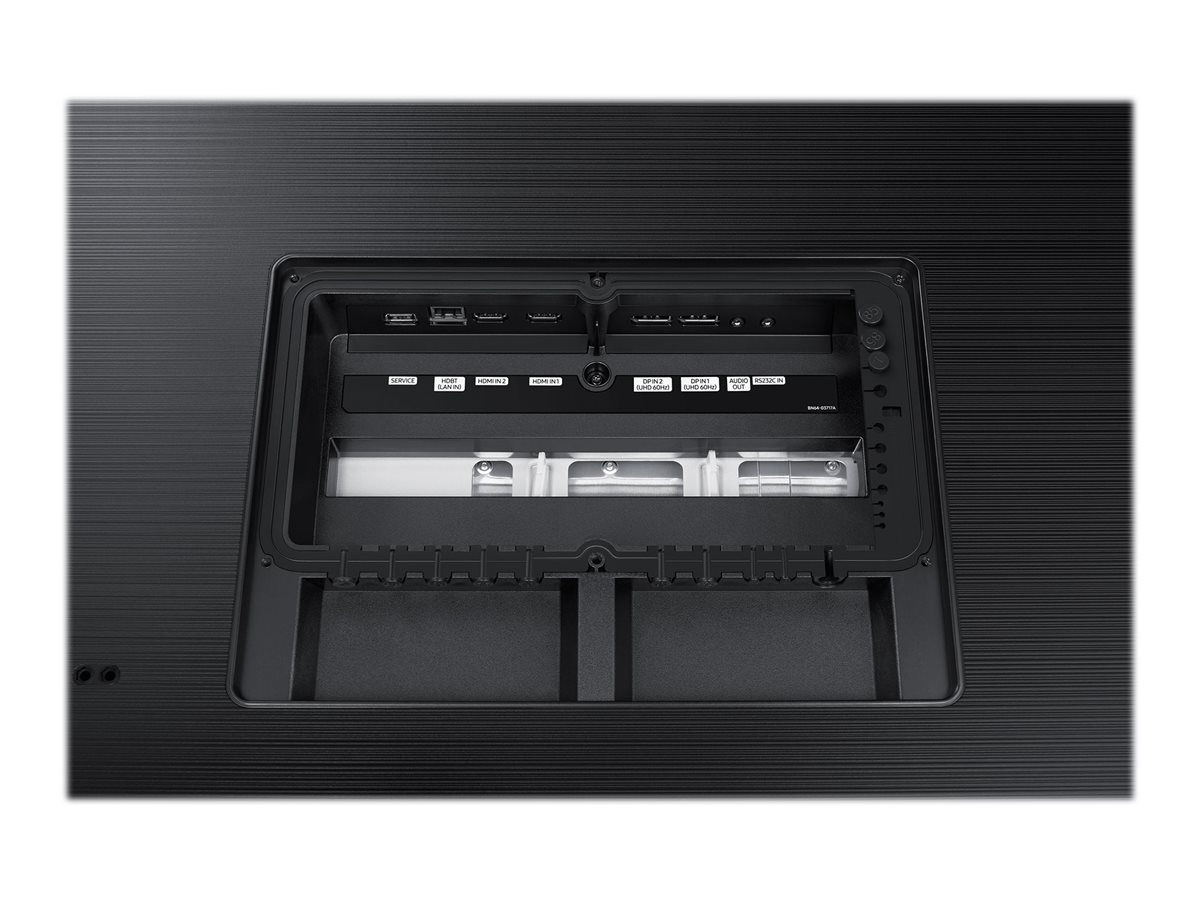

Connections
Connector Type
  • 2 x HDMI
  • HDBaseT
  • USB 2.0
  • Audio line-out
  • Serial
  • Remote control
Display
Additional FeaturesMultiple Display Control (MDC), Certified for 24/7 Continuous Operation, security lock slot (cable lock sold separately), SSSP 4.0
Brightness2500 cd/m²
CoatingAnti-reflection
Commercial FeaturesSMART Signage Platform, Auto Source Switching & Recovery, Lamp Error Detection, MagicInfo S4 Player
Display Format1080p
Dynamic Contrast Ratio100000:1
Frame Rate & Enhancement Technology120 Hz Refresh Rate
Image Aspect Ratio16:9
Image Contrast Ratio5000:1
LCD Backlight TechnologyDirect-lit LED - local dimming
Operation Hours / Days24 / 7
Resolution1920 x 1080
Response Time6 ms
Viewing Angle178°
Viewing Angle (Vertical)178°
Environmental Parameters
Humidity Range Operating10 - 80%
Max Operating Temperature50 °C
Min Operating Temperature-30 °C
General
Commercial UseYes - digital signage
Depth12 cm
Diagonal Class75"
DimensionsWithout stand
HDMI Ports Qty2 ports
Height105.4 cm
ModesPortrait mode, landscape mode
Operating SystemTizen OS 2.4
OutdoorYes
PlatformTizen OS
Product TypeLED-backlit LCD flat panel display
ProtectionTempered glass protection
SensorsAmbient light sensor (ALS), temperature sensor
SeriesOHF Series
TV TunerNo tuner
TV Tuner PresenceNo
Video InterfaceHDMI
Video ProcessorQuad-Core
Width177.6 cm
Media Player
ConfigurationARM Cortex-A12 Quad-Core ( 1.3 GHz ) - 2.5 GB DDR3 - 8 GB Flash
Supported Audio FormatsAC3, DTS
Supported Pictures FormatsPNG, JPEG
Supported Video FormatsMPEG-1, MPEG-2, MPEG-4, AVC, H.264, H.263, VC-1, HEVC, VP9, VP8
USB PortYes
USB Ports Qty1
Miscellaneous
Compliant StandardsUL, TUV, VCCI, C-Tick, BSMI, GOST, cUL, NEMKO, NOM, SASO, CB, AS/NZS 60950-1, CCC, PSB, IRAM, EN 60950-1, IEC 60529 IP56, IK10, FCC Part 15 B Class A, KC, GB 9254-2008, NOM-019-SCFI-1998, KN22, KN24, K60950-1, cUL No.60950-1, EAC, RCM, IS13252, VCCI V-3/2010.04 Class A, CNS 14972, GOST-R 51317 series, GOST 22505-97, CNS 13438 Class A ITE EMI, CNS 13439 AV EMI, GB 17625.1-2012, NOM-001-SCFI-1993, BIS, INMETRO, IEC60950-1, GB 4943.1-2011, AS/NZS CISPR 22:2009, KCC/EK, EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007
Included AccessoriesBatteries
Security Slot TypeKensington security slot
Power
Input VoltageAC 120/230 V (50/60 Hz)
Power DevicePower supply
Remote Control
TypeRemote control
