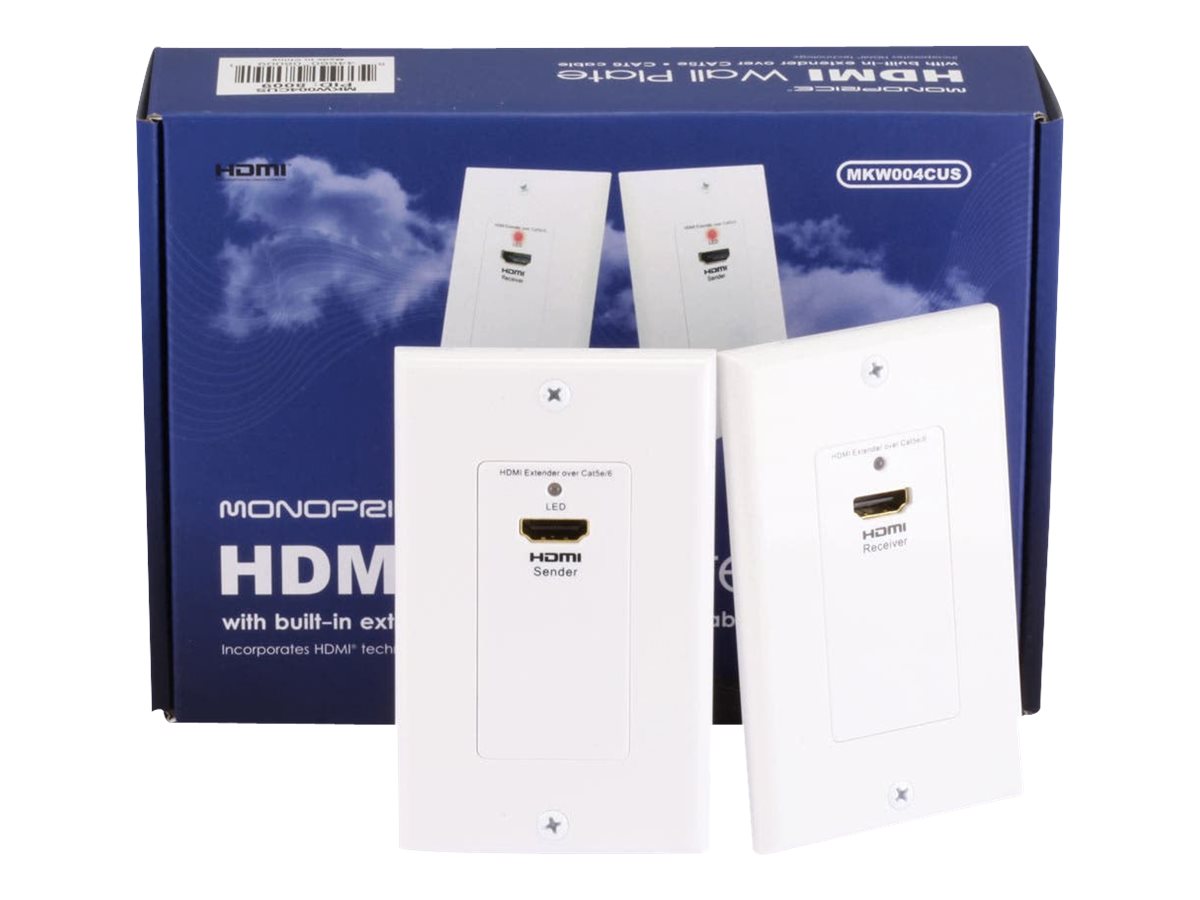

Monoprice MKW004CUS HDMI Over Cat5e / Cat6 Extender Wall Plate
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Monoprice MKW004CUS HDMI Over Cat5e / Cat6 Extender Wall Plate
- Transmitter and receiver
- video/audio extender
- over CAT 5e/6
- up to 30 m
| Additional Details | |
|---|---|
| Mfr Part #: | 8009 |
| SHI Part #: | 33684266 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Monoprice |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Monoprice MKW004CUS HDMI Over Cat5e / Cat6 Extender Wall Plate - Transmitter and receiver - video/audio extender - over CAT 5e/6 - up to 30 m |
| Manufacturer | Monoprice |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.1 cm |
| Dimensions & Weight / Height | 11.4 cm |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Monoprice |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | Wall mountable |
| Networking / Type | Video/audio extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 4.1 cm |
| Height | 11.4 cm |
| Width | 7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -15 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A |
| General | |
| Color | White |
| Device Type | Video/audio extender |
| Form Factor | Wall mountable |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Features | 24-bit Deep Color support, 36-bit Deep Color support, Dolby support, DTS support, Direct Stream Digital (DSD), Full HD (1920 x 1080) streaming video support, AC3 support |
| Max Resolution | 1920 x 1080 / 1080p @ 60 Hz |
| Max Transfer Distance | 30 m |
| Status Indicators | Port status |
