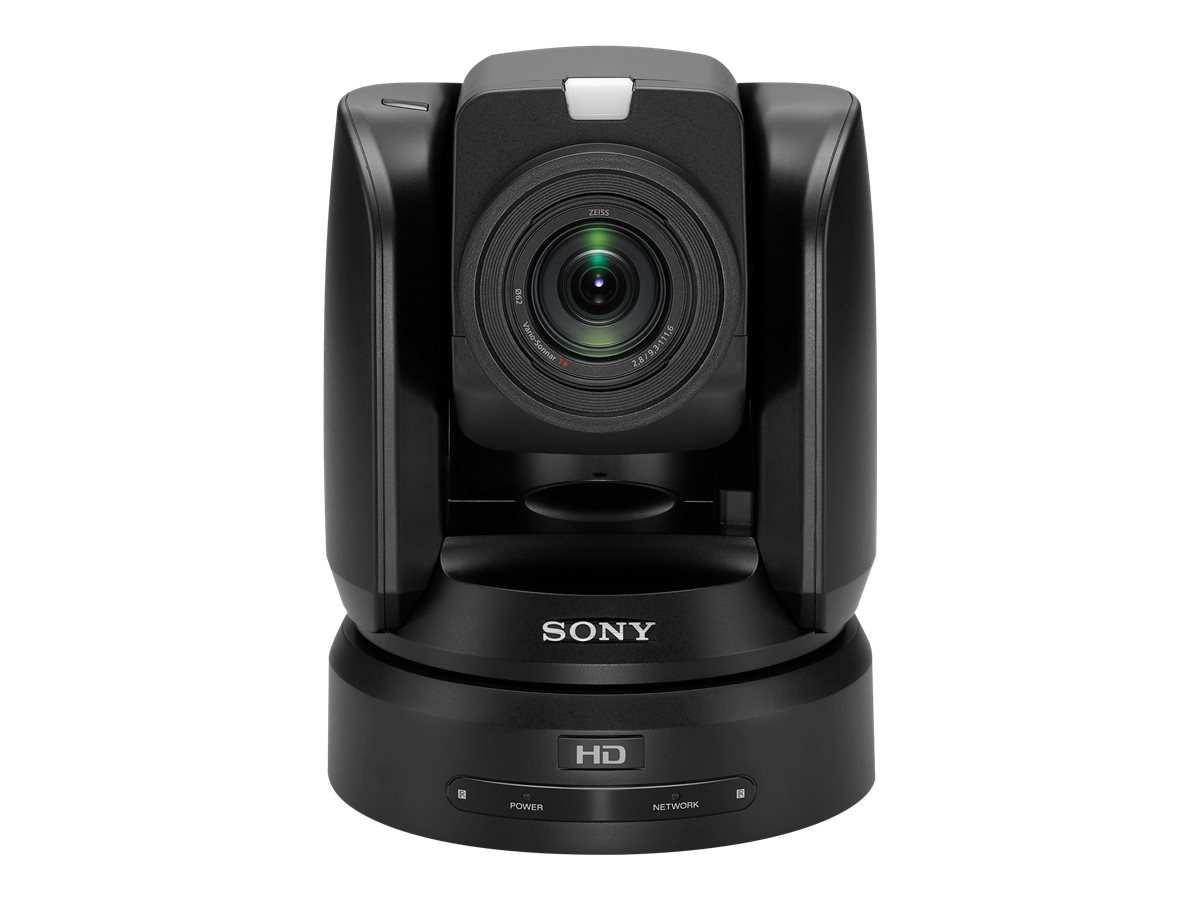

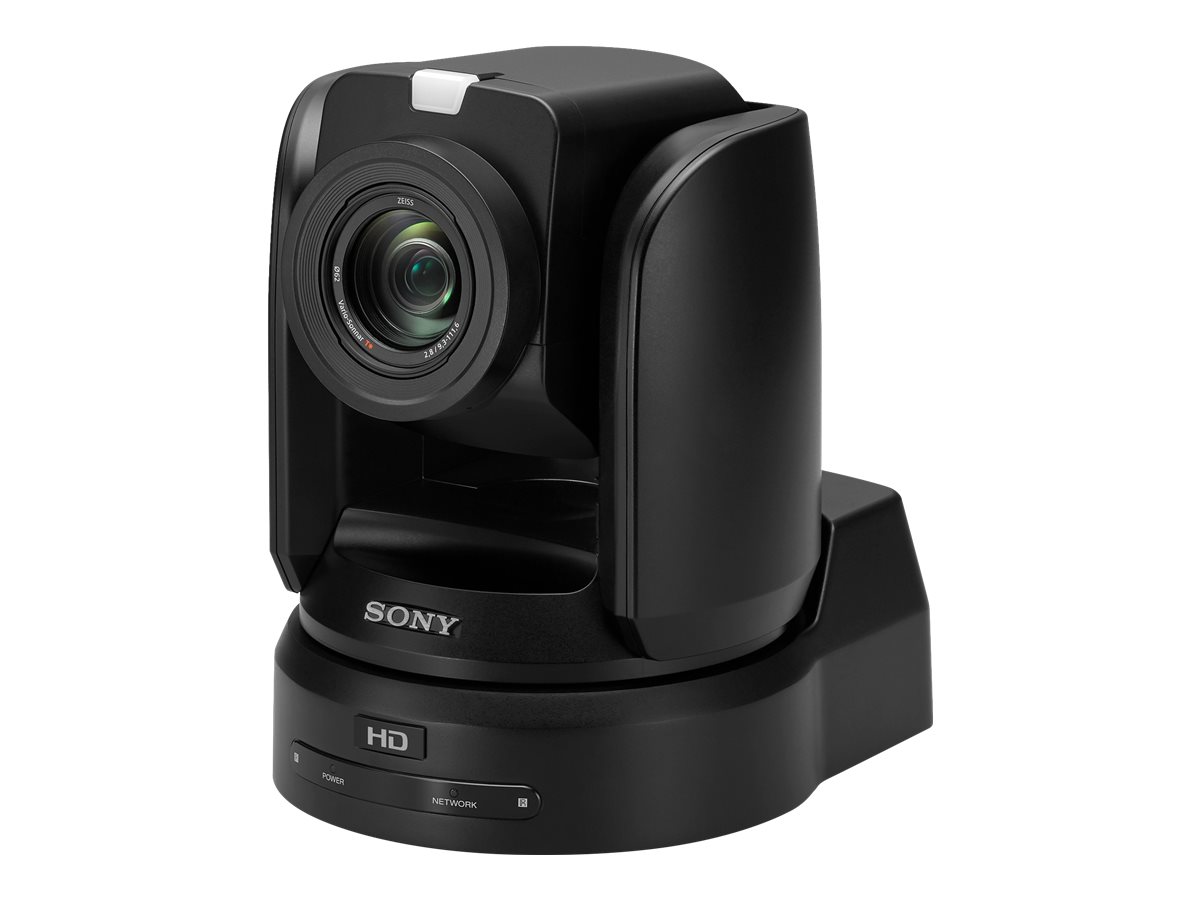

BRC-H800 FULL HD PTZ CAMERA WITH1-INCH EXMOR R CMOS SENSOR & POE+
MSRP$6,900.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
BRC-H800 FULL HD PTZ CAMERA WITH1-INCH EXMOR R CMOS SENSOR & POE+
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,900.00 |
| Mfr Part #: | BRCH800/1 |
| SHI Part #: | 33581174 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | Sony |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | BRC-H800 FULL HD PTZ CAMERA WITH1-INCH EXMOR R CMOS SENSOR & POE+ |
| Manufacturer | Sony |
| MSRP | $6,900.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Weight | 16.501 |
| Height | 11.653 |
| Lead Time | 56 |
| Lead Time Effective Date | 12/10/22 |
| Length | 17.874 |
| List Price | 6080.15 |
| Quantity Measurement | EA |
| Unit of Measure | IN |
| UNSPSC Code | 43222800 |
| UPC | 027242221888 |
| Width | 15.984 |
| Camera | |
| Exposure Range | 1/6 sec - 1/10000 sec |
| Features | Auto exposure control, image flip, Visibility Enhancer, 100 preset positions, auto gain control, auto white balance |
| Horizontal Resolution (TV Lines) | 850 |
| Minimum Illumination | 1.7 lux F2.8 - 50 IRE - shutter 1/30 sec |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/23.98p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 23.8 cm |
| Device Type | Conference camera |
| Height | 26 cm |
| Weight | 4.3 kg |
| Width | 19.8 cm |
| Image Sensor | |
| Type | 20.4 MP Exmor R CMOS 1" |
| Interfaces | |
| Control Interface | RS-422, VISCA |
| Video | HDMI, 3G-SDI |
| Lens Construction | |
| Focal Length | 9.3 mm - 111.6 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 64.6 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 8 cm |
| Optical Zoom | 12 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.3at |
| Included Accessories | Remote control, wire rope, 2 ceiling mount brackets |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 60 |
| Power | |
| Power Device | 23 Watt |
| Power Requirements | DC 10.8 - 13.2 V / PoE Plus |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 60 |
