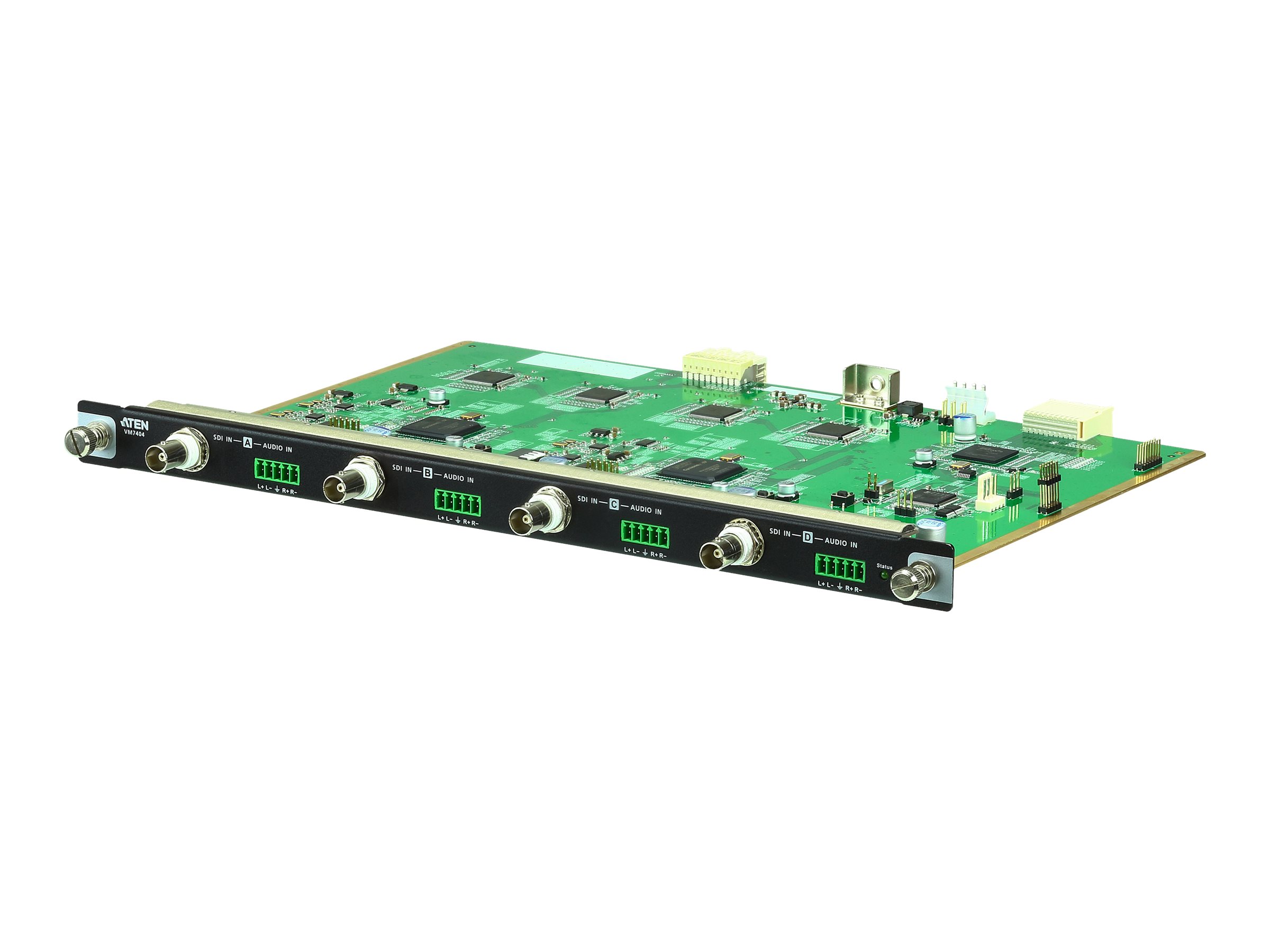

ATEN VM7404 4-Port 3G-SDI Input Board

MSRP$2,377.00

$1,950.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Expansion module 3G-SDI x 4 for VanCryst VM1600A, VM3200, VM3250

ATEN VM7404 4-Port 3G-SDI Input Board

General Information
Category	Network interface cards
Description	ATEN VM7404 4-Port 3G-SDI Input Board - Expansion module - 3G-SDI x 4 - for VanCryst VM1600A, VM3200, VM3250
Manufacturer	ATEN
MSRP	$2,377.00
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	23.8 cm
Dimensions & Weight / Height	2.33 cm
Dimensions & Weight / Weight	600 g
Dimensions & Weight / Width	35.2 cm
Header / Brand	ATEN
Miscellaneous / Product Color	Black
Networking / Connectivity Technology	Wired
Networking / Type	Expansion module
Packaged Quantity	1
Service & Support / Type	3-year warranty
Compatibility Information
Designed For	ATEN VanCryst VM1600A, VM3200, VM3250
Dimensions & Weight
Depth	23.8 cm
Height	2.33 cm
Weight	600 g
Width	35.2 cm
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	4 x 3G-SDI input - BNC x 5 4 x audio line-in - 5 pin terminal block
General
Device Type	Expansion module
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Networking
Connectivity Technology	Wired
Features	HDCP compliant
Performance	Maximum data rate: 2.97 Gbps
Ports	3G-SDI x 4
Power
Power Consumption Operational	16 Watt

	Product	Qty	Price

We currently have limited stock of this product.
For availability options and shipping info, contact your sales team.
