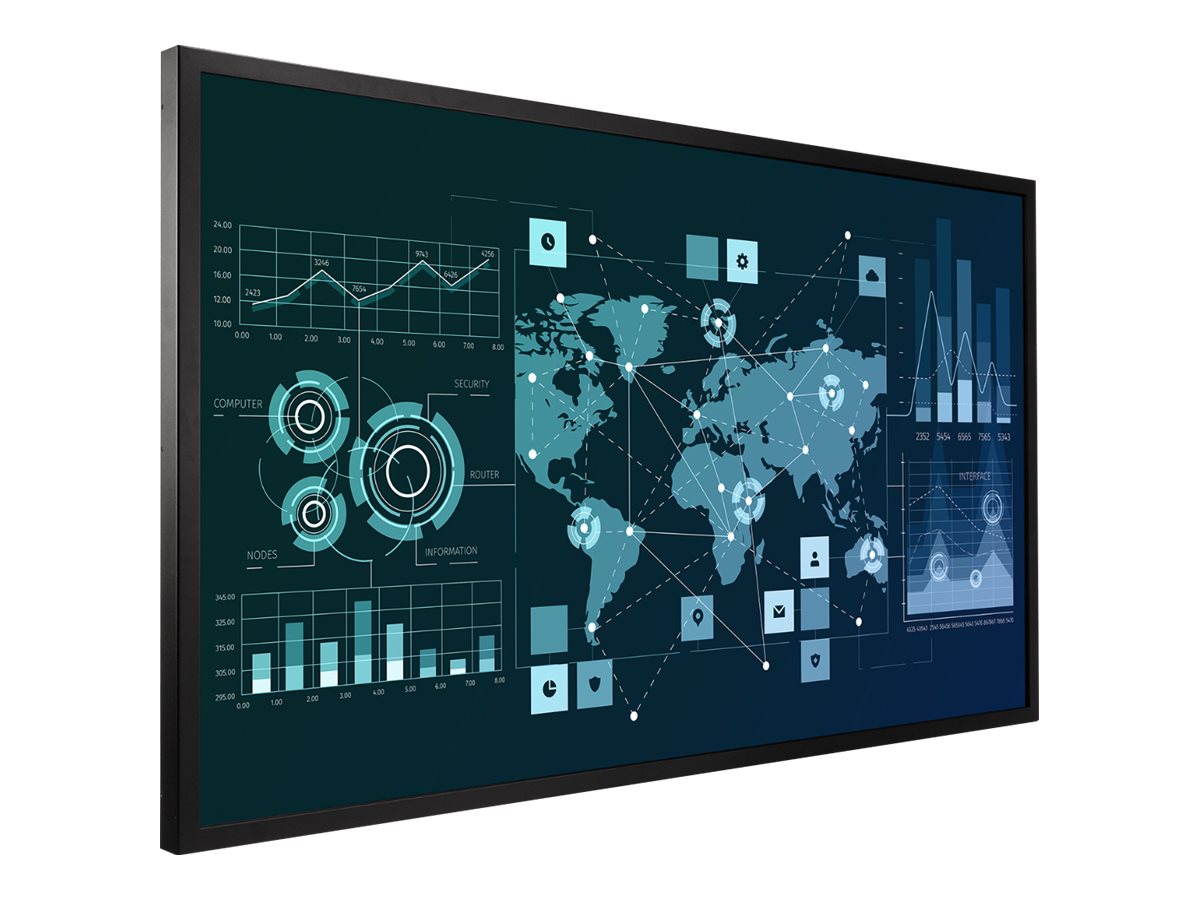

Planar QE7550-T - 75" Diagonal Class QE Touch Series LED display
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar QE7550-T - 75" Diagonal Class QE Touch Series LED display
- interactive digital signage
- with touchscreen
- 4K UHD (2160p) 3840 x 2160
- edge-lit
| Additional Details | |
|---|---|
| Mfr Part #: | 997-8796-00 |
| SHI Part #: | 33220508 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Planar QE7550-T - 75" Diagonal Class QE Touch Series LED display - interactive digital signage - with touchscreen - 4K UHD (2160p) 3840 x 2160 - edge-lit |
| Manufacturer | Planar |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.2 cm |
| Dimensions & Weight / Height | 99 cm |
| Dimensions & Weight / Weight | 63 kg |
| Dimensions & Weight / Width | 171.1 cm |
| Display / Diagonal Size | 75 in |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Service & Support / Type | 3-year warranty |
| Television / Brightness | 500 cd/m² |
| Television / Combined with | Touchscreen |
| Television / Diagonal Size | 75 in |
| Television / Diagonal Size (cm) | 190.5 cm |
| Television / Display Format | 4K UHD (2160p) |
| Television / Image Aspect Ratio | 16:9 |
| Television / Image Contrast Ratio | 1200:1 |
| Television / PC Interface | DisplayPort |
| Television / Resolution | 3840 x 2160 |
| Television / Type | LED-backlit LCD flat panel display |
| Television / Viewing Angle | 178° |
| Audio System | |
| Output Power / Total | 20 watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 10 watt |
| Connections | |
| Connector Type |
|
| Display | |
| Additional Features | Certified for 24/7 Continuous Operation, Multitouch, Extended Ruggedness and Optics (ERO) Technology, picture in picture (no tuner) |
| Brightness | 500 cd/m² |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 20000:1 |
| Frame Rate & Enhancement Technology | 120 Hz Frame Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| LCD Backlight Technology | Edge-lit LED |
| Resolution | 3840 x 2160 |
| Response Time | 6 ms |
| Touchpoints Qty | 20 |
| Viewing Angle | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Touchscreen |
| Commercial Use | Yes - interactive digital signage |
| Cooling System | Fanless |
| Depth | 9.2 cm |
| Design | Fanless Design |
| Diagonal Class | 75" |
| HDMI Ports Qty | 4 ports |
| Height | 99 cm |
| Modes | Portrait mode, landscape mode |
| Operating System | Android OS |
| PC Interface | DisplayPort |
| Picture Enhancements | 72% Color Saturation NTSC |
| Power Consumption Operational | 195 watt |
| Product Type | LED-backlit LCD flat panel display |
| Protection | Corning Gorilla glass |
| Series | QE Touch Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 63 kg |
| Width | 171.1 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years |
| Media Player | |
| Configuration | 8 GB |
| Storage Drive Capacity | 8 GB |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, AVC, H.264, VC-1, HEVC, H.265 |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Miscellaneous | |
| Cables Included | USB cable |
| Compliant Standards | FCC Class A certified, cTUVus |
| TAA Compliant | Yes |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption Stand by | 1 watt |
| Power Device | Power supply |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
