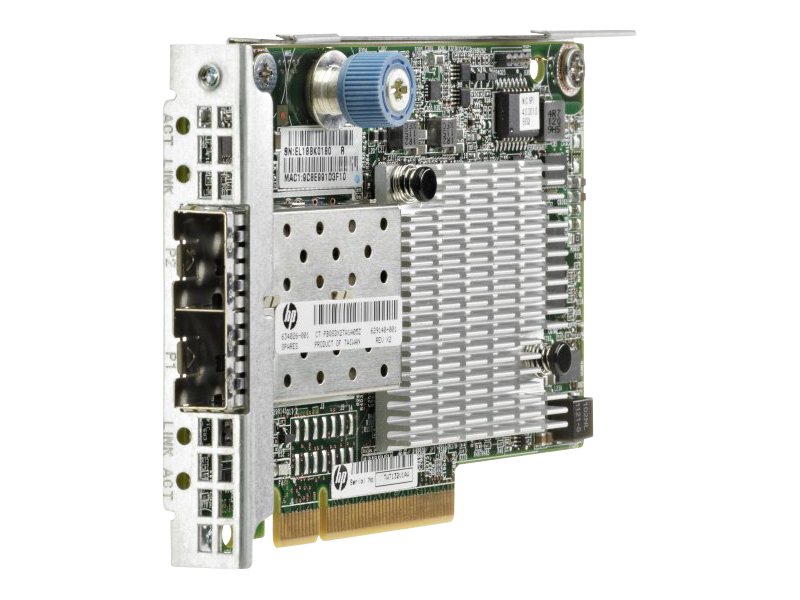

HPE FlexFabric 554FLR-SFP+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE FlexFabric 554FLR-SFP+
- Network adapter
- PCIe 2.0 x8
- 10 GigE
- 2 ports
- for ProLiant DL360p Gen8, DL380p Gen8, DL385p Gen8, DL560 Gen8, SL250s Gen8, SL270s Gen8
| Additional Details | |
|---|---|
| Mfr Part #: | 629142-B21 |
| SHI Part #: | 33081652 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | HPE FlexFabric 554FLR-SFP+ - Network adapter - PCIe 2.0 x8 - 10 GigE - 2 ports - for ProLiant DL360p Gen8, DL380p Gen8, DL385p Gen8, DL560 Gen8, SL250s Gen8, SL270s Gen8 |
| Manufacturer | HP, Inc. |
| UNSPSC | 43201404 |
| Main Specifications | |
| C.P.U. | GBE |
| Dimensions & Weight / Weight | 000.56 |
| Height | 002.50 |
| Length | 006.75 |
| Width | 005.50 |
| Compatibility Information | |
| Designed For | HPE ProLiant DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL388p Gen8 Base, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Left Tray Server, SL250s Gen8 Base 2U Right Half Width Tray, SL250s Gen8 Base 2U Right Tray Server, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x FlexibleLOM |
| General | |
| Device Type | Network adapter - 2 ports |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CISPR 22 Class A, EN 60950, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, MIC Class A, ACA, ACPI 1.1, BSMI Class A |
| Networking | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qau |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Auto-negotiation, WOL, Jumbo Frames support, PXE support, LSO, RSS |
| Processor / Memory | |
| Processor | 1 x Emulex |
| RAM | 128 MB |
| Software / System Requirements | |
| OS Required | SunSoft Solaris 10, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 5.x, VMware ESX 4.1, VMware ESX 4.0 |
