Synology FlashStation FS3017
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

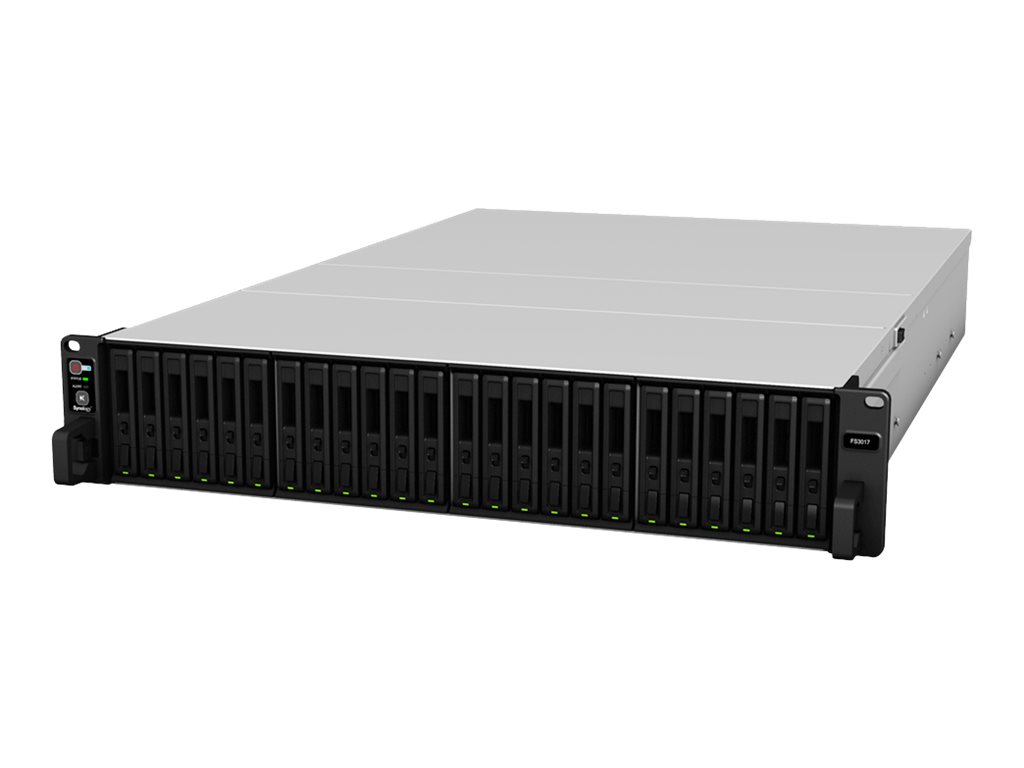

Synology FlashStation FS3017
- Flash storage array
- 24 bays
- 10 Gigabit Ethernet, USB 3.0 (external)
- rack-mountable
- 2U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | FS3017 |
| SHI Part #: | 33039157 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Synology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | Synology FlashStation FS3017 - Flash storage array - 24 bays - 10 Gigabit Ethernet, USB 3.0 (external) - rack-mountable - 2U |
| Manufacturer | Synology |
| MSRP | $9,999.99 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 72.4 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 17.13 kg |
| Dimensions & Weight / Width | 48.2 cm |
| Header / Brand | Synology |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | E5-2620V3 |
| Processor / Type | Xeon |
| Service & Support / Type | 5-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Depth | 72.4 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Height | 8.8 cm |
| Host Connectivity | 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Total Storage Capacity | 0 GB |
| Weight | 17.13 kg () |
| Width | 48.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS, BSMI Class A |
| Features | Automatic fan speed control, built-in 4 cooling fans, hardware encryption, scheduled power on/off, S.M.A.R.T. support |
| Included Accessories | Accessory pack |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, iSCSI |
| Encryption Algorithm | AES-NI |
| Features | WOL, High Availability, anti-malware protection, ACL support, reset button, bandwidth control, Traffic Control, e-mail notification, VPN Server, Link Aggregation, failover protection, OpenStack compatible, Disaster Recovery technology, Btrfs, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, cloud station server, MailPlus server, FTP server, L2TP support |
| Network / Transport Protocol | iSCSI, SMB |
| Network Services Compatibility | Server Message Block (SMB), Apple File Protocol (AFP), Calendaring Extensions to WebDAV (CalDAV), FTP, Microsoft CIFS, Network File System (NFS), Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance | iSCSI 4K random write IOPS: over 200000 |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Memory | |
| Features | ECC |
| Max Supported Qty | 2 |
| Number of Cores | 6-core |
| Processors Installed | 2 x Intel Xeon E5-2620V3 2.4 GHz |
| RAM | 64 GB (installed) / 512 GB (supported) - DDR4 |
| Security DVR | |
| Compression Format | MJPEG, H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
| IP Cameras Supported | 100 |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1 |
| Type | RAID |
