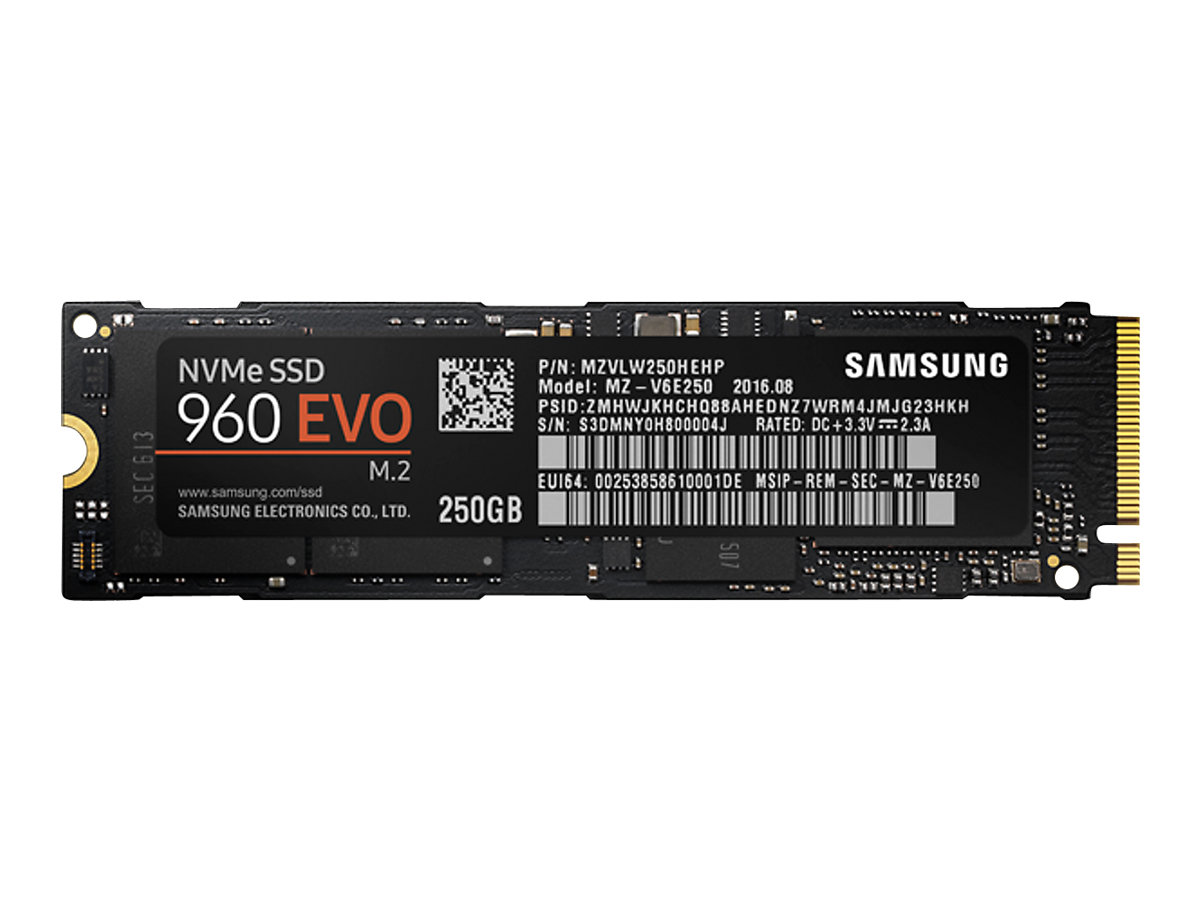

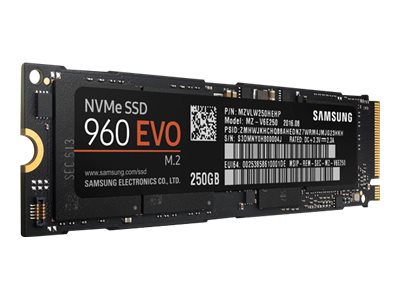

Samsung 960 EVO MZ-V6E250BW
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Samsung 960 EVO MZ-V6E250BW
- SSD
- encrypted
- 250 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
- 256-bit AES
- TCG Opal Encryption
| Additional Details | |
|---|---|
| Mfr Part #: | MZ-V6E250BW |
| SHI Part #: | 32849303 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung 960 EVO MZ-V6E250BW - SSD - encrypted - 250 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption |
| Manufacturer | Samsung |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 2.28 mm |
| Dimensions & Weight / Weight | 9 g |
| Dimensions & Weight / Width | 22.1 mm |
| Hard Drive / Capacity | 250 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card |
| General | |
| Capacity | 250 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | TRIM support, sleep mode, Auto Garbage Collection Algorithm, TurboWrite Technology, V-NAND Technology, eDrive, NVM Express (NVMe), S.M.A.R.T., 256-bit AES, IEEE 1667 |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 2.28 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 9 g |
| Width | 22.1 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Performance | |
| Internal Data Rate | 3200 MBps (read) / 1500 MBps (write) |
| Maximum 4KB Random Read | 300000 IOPS |
| Maximum 4KB Random Write | 330000 IOPS |
| SSD Endurance | 100 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Software & System Requirements | |
| Software Included | Samsung Magician Software |
