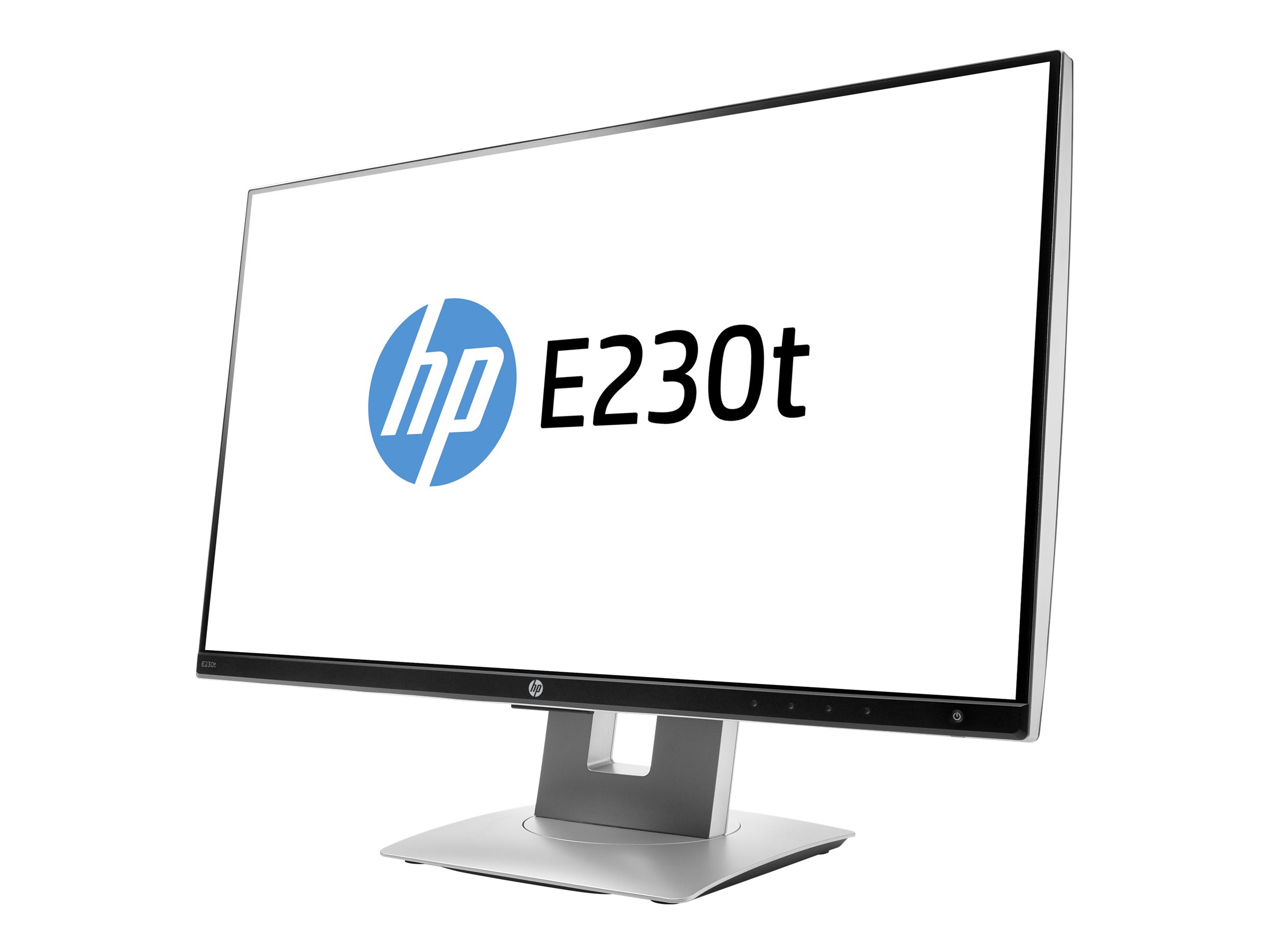

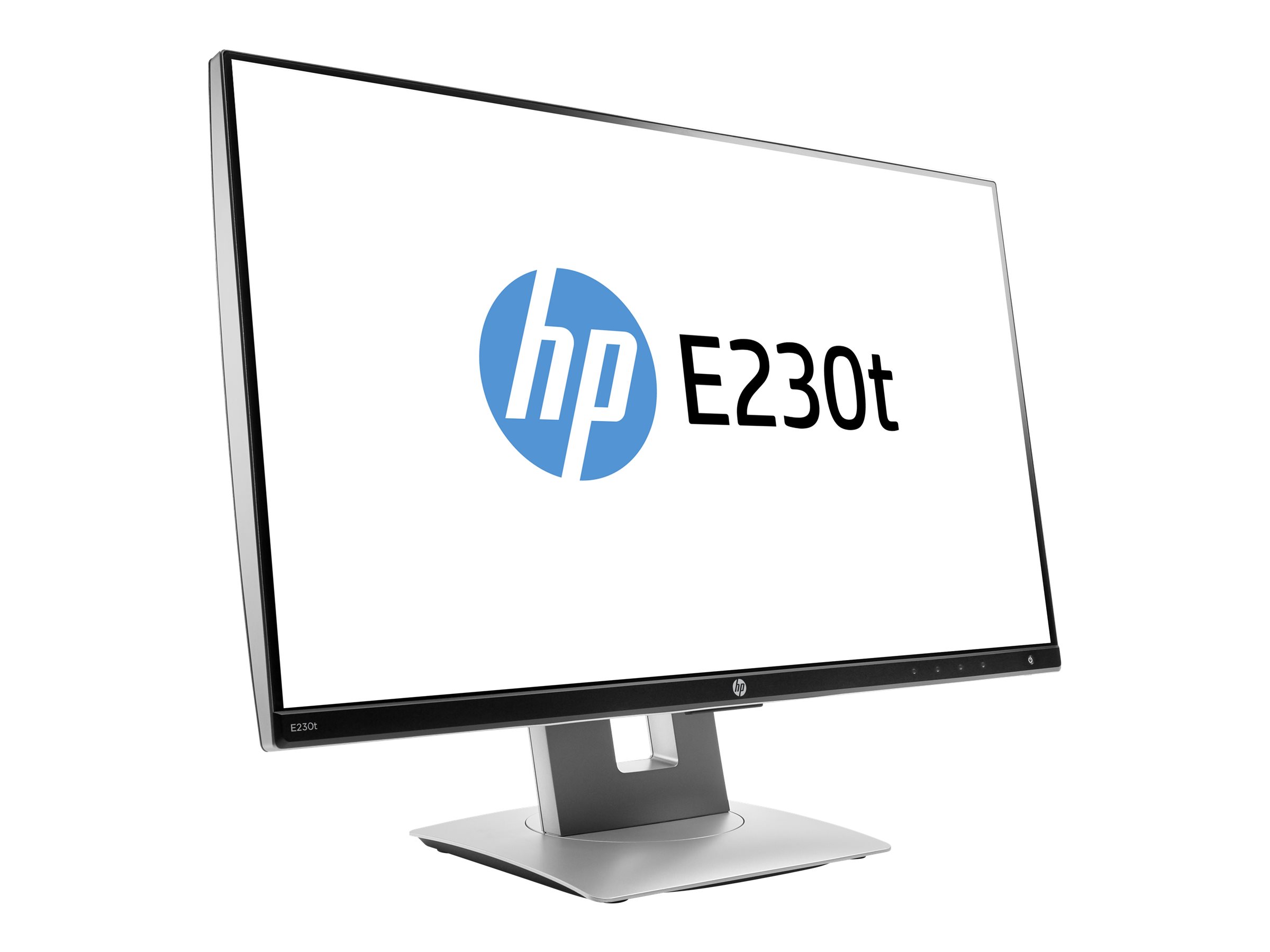

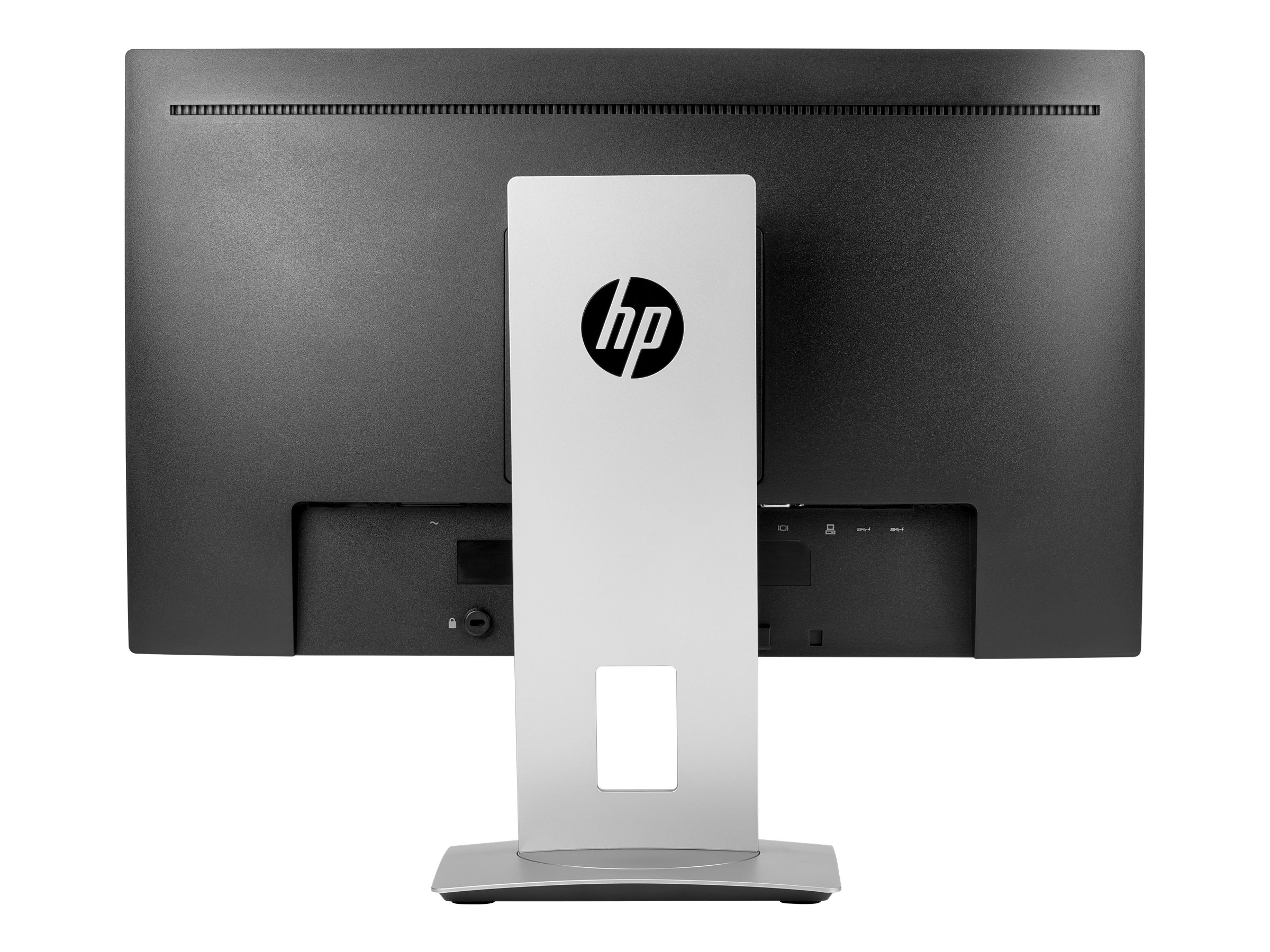

HP EliteDisplay E230t
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HP EliteDisplay E230t
- LED monitor
- 23" (23" viewable)
- touchscreen
- 1920 x 1080 Full HD (1080p) @ 60 Hz
- IPS
- 250 cd/m²
- 1000:1
- 5.7 ms
- HDMI, VGA, DisplayPort
- black (bezel)
- for HP t240, t430, t640; Elite Slice for Meeting Rooms G2 for Intel Unite
| Additional Details | |
|---|---|
| Mfr Part #: | W2Z50A8 |
| SHI Part #: | 32772142 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | HP EliteDisplay E230t - LED monitor - 23" (23" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 250 cd/m² - 1000:1 - 5.7 ms - HDMI, VGA, DisplayPort - black (bezel) - for HP t240, t430, t640; Elite Slice for Meeting Rooms G2 for Intel Unite |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.23 cm |
| Dimensions & Weight / Height | 31.2 cm |
| Dimensions & Weight / Weight | 3.1 kg |
| Dimensions & Weight / Width | 52.08 cm |
| Display / Diagonal Size | 23 in |
| Display / Diagonal Size (metric) | 58.42 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Pixel Pitch | 0.2652 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | HP |
| Image Brightness | 250 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required | Windows 10 |
| Compatibility Information | |
| Designed For |
|
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | WLED |
| Brightness | 250 cd/m² |
| Built-in Devices | USB 3.0 hub |
| Color | Black (bezel) |
| Color Gamut | 72% |
| Color Support | 16.7 million colors |
| Color Temperature | 6500K |
| Contrast Ratio | 1000:1 / 5000000:1 (dynamic) |
| Diagonal Size | 23" |
| Dimensions (WxDxH) | 52.08 cm x 5.23 cm x 31.2 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Features | HDCP, Frame Rate Control (FRC), On-screen Digital Controls, Mercury free, arsenic-free glass |
| Horizontal Refresh Rate | 24 - 80 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Spanish, Dutch, Japanese |
| Panel Type | IPS |
| Pixel Per Inch | 96 |
| Pixel Pitch | 0.2652 mm |
| Response Time | 14 ms (On/Off), 5.7 ms (gray-to-gray with overdrive) |
| Screen Coating | Anti-glare |
| Vertical Refresh Rate | 50 - 75 Hz |
| Vertical Viewing Angle | 178 |
| Weight | 3.1 kg |
| Input | |
| Type | Touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation), tilt |
| Height Adjustment | 150 mm |
| Rotation Angle | 90 |
| Tilt Angle | -5/+25 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Backlight Life | 30,000 hours |
| Cables Included |
|
| Compliant Standards | Plug and Play, CSA, UL, VCCI, BSMI, NOM, TUV S, WHQL, CB, CCC, PSB, FCC, ISO 9241-307, KCC, WEEE, MEPS, China Energy Label Level 1, KC, CECP, EAC, ISC, SEPA, ICE, SmartWay |
| Features | Security lock slot (cable lock sold separately) |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 18 W |
| Power Consumption (Typical) | 29 Watt |
| Power Consumption SDR (On mode) | 18 kWh/1000h |
| Power Consumption Stand by | 0.5 Watt |
| Software / System Requirements | |
| Included Software | HP Display Assistant |
| OS Required | Windows 10 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
