B&B ULINX USOPTL4-2P
MSRP$263.60
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

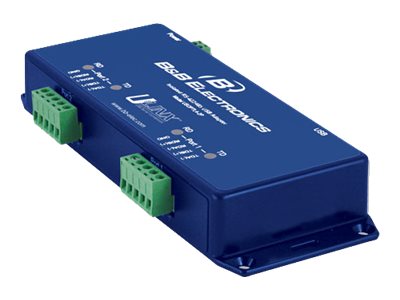

B&B ULINX USOPTL4-2P
- Serial adapter
- USB
- RS-422/485 x 2
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $263.60 |
| Mfr Part #: | USOPTL4-2P |
| SHI Part #: | 32390465 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | B&B ULINX USOPTL4-2P - Serial adapter - USB - RS-422/485 x 2 |
| Manufacturer | Advantech |
| MSRP | $263.60 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 3 cm |
| Dimensions & Weight / Weight | 340 g |
| Dimensions & Weight / Width | 16.4 cm |
| Header / Brand | B&B |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 340 g |
| Width | 16.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-422/485 - terminal block |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - 1 m |
| Compliant Standards | UL, FCC |
| MTBF | 125,224 hours |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 921.6 Kbps |
| Features | 2000V isolation, 15 KV Electrostatic Discharge Protection |
| Ports | RS-422/485 x 2 |
| Power | |
| Power Consumption Operational | 3 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Microsoft Windows 98/ME/2000/XP/Vista |
| Software Included | Drivers & Utilities |
