Advantech ADAM-4570-CE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

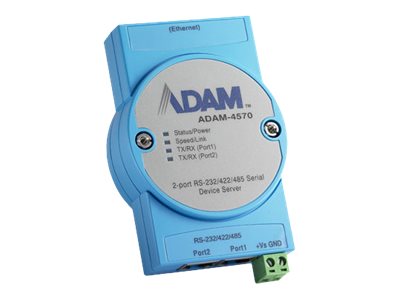

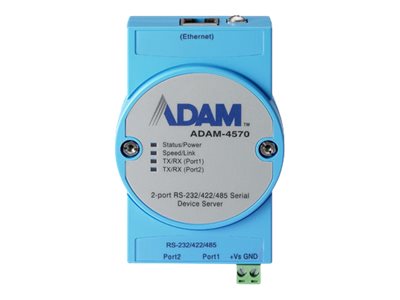

Advantech ADAM-4570-CE
- Serial adapter
- RS-232/422/485
- RS-232/422/485 x 2 + 10/100 Ethernet x 1
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ADAM-4570-CE |
| SHI Part #: | 32301203 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Advantech ADAM-4570-CE - Serial adapter - RS-232/422/485 - RS-232/422/485 x 2 + 10/100 Ethernet x 1 |
| Manufacturer | Advantech |
| MSRP | $228.50 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 160 g |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 3 cm |
| Height | 13 cm |
| Weight | 160 g |
| Width | 7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232/422/485 |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B Class A |
| Networking | |
| Cabling Type | Serial |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 921.6 Kbps |
| Features | 15KV ESD Protector, flow control, firmware upgradable, 1.5 KV Magnetic Isolation, DHCP client, DIN rail mountable, wall mountable, WDT |
| Network / Transport Protocol | ARP, ICMP/IP, TCP/IP, UDP/IP, BOOTP, DHCP, DNS, SMTP |
| Ports | RS-232/422/485 x 2 + 10/100 Ethernet x 1 |
| Remote Management Protocol | Telnet, SNMP, HTTP |
| Status Indicators | Power, link/activity, port transmission speed, status |
| Power | |
| Power Consumption Operational | 2.5 watt |
| Voltage Required | DC 10 - 30 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows CE 5.0, Microsoft Windows Server 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Linux |
