Kramer MegaTOOLS SID-X1N

MSRP$795.00

$507.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Video/audio extender up to 50 m

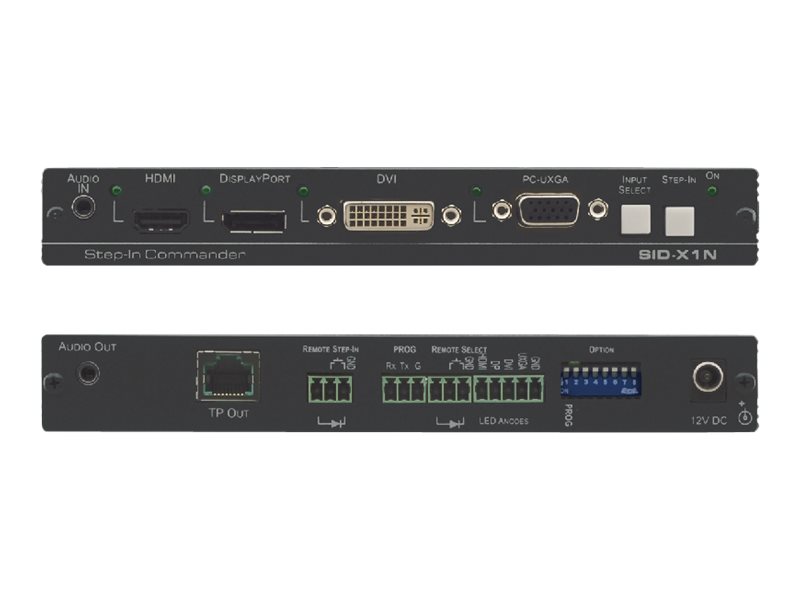

Kramer MegaTOOLS SID-X1N

General Information
Category	Serial port cards
Description	Kramer MegaTOOLS SID-X1N - Video/audio extender - up to 50 m
Manufacturer	Kramer Electronics
MSRP	$795.00
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	11.3 cm
Dimensions & Weight / Height	2.5 cm
Dimensions & Weight / Weight	480 g
Dimensions & Weight / Width	18.8 cm
Header / Brand	Kramer
Networking / Connectivity Technology	Wired
Networking / Data Transfer Rate	4.95 Gbps
Networking / Form Factor	External
Networking / Type	Video/audio extender
Packaged Quantity	1
Dimensions & Weight
Depth	11.3 cm
Height	2.5 cm
Weight	480 g
Width	18.8 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x network - RJ-45 female 1 x HDMI (input) - 19 pin HDMI Type A female 1 x DVI-D (input) female 1 x DisplayPort (input) female 1 x VGA (input) - HD-15 female 1 x audio (output) - mini jack female 1 x audio (input) - mini jack female 1 x RS-232 (management) - terminal block
General
Device Type	Video/audio extender
Form Factor	External
Miscellaneous
Rack Mounting Kit	Optional
Networking
Connectivity Technology	Wired
Data Transfer Rate	4.95 Gbps
Features	HDTV Compatible, HDCP compliant, 3D support, EDID Pass-Through
Max Resolution	1080p @ 60 Hz
Max Transfer Distance	50 m
Status Indicators	Power, port status
Power
Power Device	External power adapter
