Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U


MSRP$2,807.90
$1,582.00
Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable)
  • 10.94 A
  • AC 200/208/220/230/240 V
  • 1980 Watt
  • 2200 VA
Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U
  • UPS (rack-mountable)
  • 10.94 A
  • AC 200/208/220/230/240 V
  • 1980 Watt
  • 2200 VA
  • 1-phase
  • RS-232, USB
  • output connectors: 9
  • 2U
  • 19"
  Additional Details
Price: $1,582.00
MSRP: $2,807.90
Mfr Part #: SUINT2200LCD2U
SHI Part #: 31799691
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: Tripp Lite
Product Type: Hardware

Laptop Batteries

Tripp Lite Rackmount Battery Pack Enclosure / DC Cabling for select UPS Systems
  • UPS battery
  • 2U
MSRP $1,076.40 $589.00

Network Interface Cards

Tripp Lite UPS Web Management Accessory Card SNMP Remote Monitoring
  • Remote management adapter
  • 100Mb LAN
  • 100Base-TX
MSRP $644.80 $424.00
Tripp Lite MODBUS Management Accessory Card for UPS Remote Monitoring and Control
  • Remote management adapter
  • RS-232/422/485
MSRP $526.24 $346.00
Tripp Lite Programmable Relay I/O Card Online & Smart UPS Systems
  • Remote management adapter
MSRP $405.60 $267.00
General Information
CategoryRechargeable batteries
DescriptionTripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U - UPS (rack-mountable) - 10.94 A - AC 200/208/220/230/240 V - 1980 Watt - 2200 VA - 1-phase - RS-232, USB - output connectors: 9 - 2U - 19"
ManufacturerTripp Lite
MSRP$2,807.90
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth49.6 cm
Dimensions & Weight / Height8.8 cm
Dimensions & Weight / Weight23.1 kg
Dimensions & Weight / Width43.8 cm
General / SubcategoryUPS
Header / BrandTripp Lite
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty9
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 200/208/220/230/240 V
Product TypeUPS
Service & Support / Type2-year warranty
Battery
Recharge Time3 hours
Run Time (Up To)
  • 4.3 min at full load
  • 11.7 min at half load
TypeExpandable
Voltage Provided48 V
Dimensions & Weight
Depth49.6 cm
Height8.8 cm
Weight23.1 kg
Width43.8 cm
Dimensions & Weight (Shipping)
Shipping Depth70 cm
Shipping Height24 cm
Shipping Weight27.2 kg
Shipping Width56.5 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission50 dB
Environmental Standards
ENERGY STARYes
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x EPO (emergency power off)
  • 1 x USB
  • 1 x RS-232 - 9 pin D-Sub (DB-9)
General
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Rack Size19"
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous

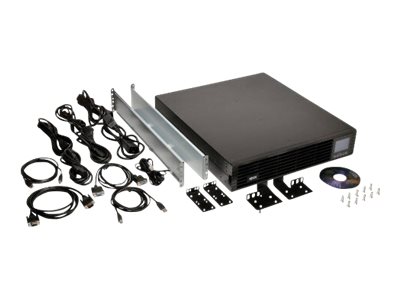

Cables Included
  • 3 x power cable - external
  • USB cable - external
  • Serial cable - external
Compliant StandardsCSA, SASO, UL 1778, FCC Part 15, EAC, IEC 62040-2:2006, IEC 62040-1:2008
Equipment Protection Value250000 US Dollars

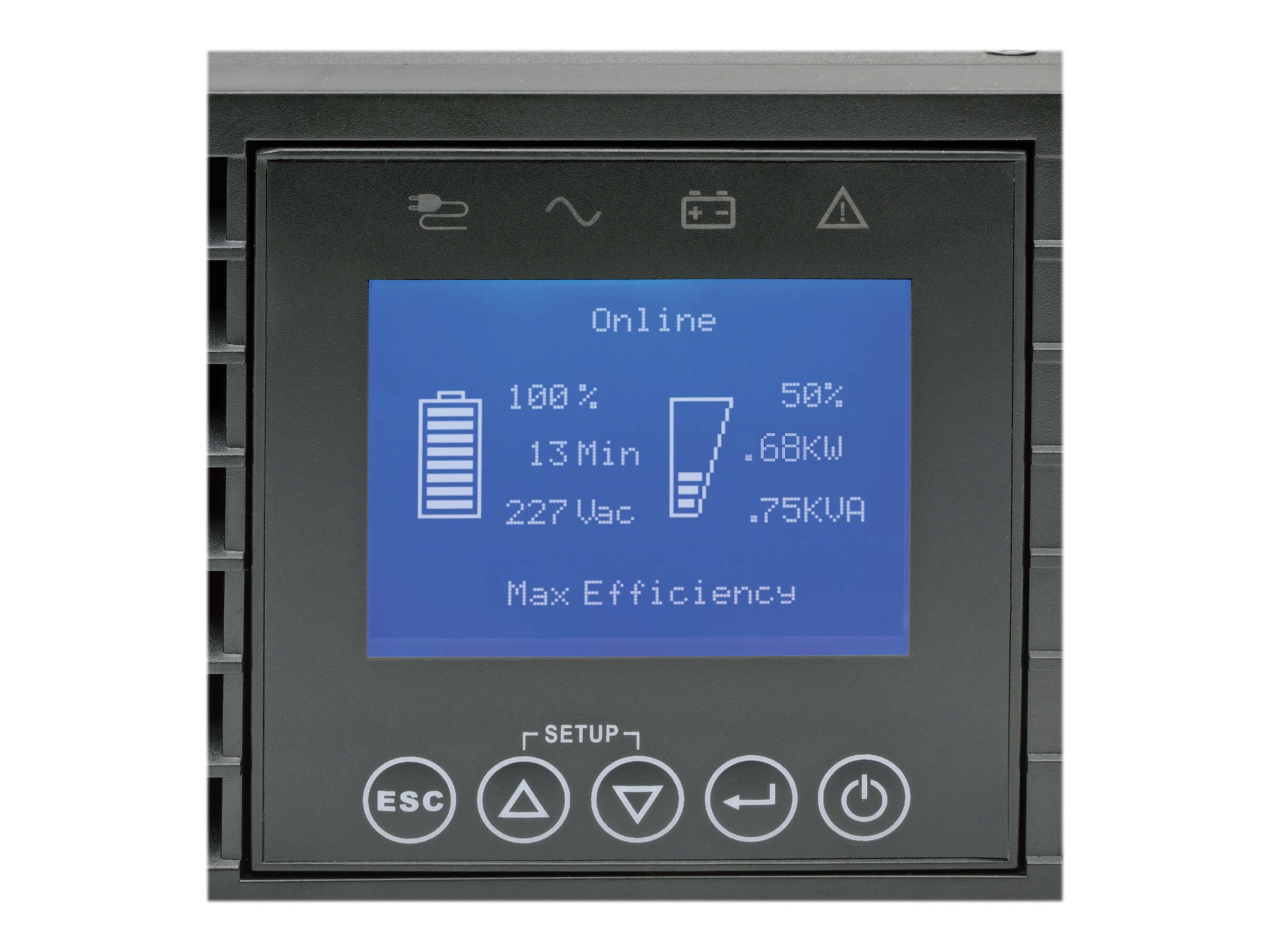

FeaturesBuilt-in cooling fan, audible alarm, LCD display, voltage monitoring, internal bypass, LED indicators, noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, Remote Emergency Power Off (REPO), hot-swappable batteries, Energy-Saving Outlets
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Dataline Surge ProtectionNetwork/phone line - RJ-45/RJ-11
Efficiency95%
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x power IEC 60320 C20
Input VoltageAC 200/208/220/230/240 V
Input Wiring1-phase
Max Electric Current10.94 A
Output VoltageAC 200/208/220/230/240 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity1980 Watt / 2200 VA
Power Factor (PF)0.9
Power Output Connectors Details
  • 8 x power IEC 60320 C13 (UPS and surge)
  • 1 x power IEC 60320 C19 (UPS and surge)
Surge Energy Rating936 Joules
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
Software IncludedTrippLite PowerAlert
